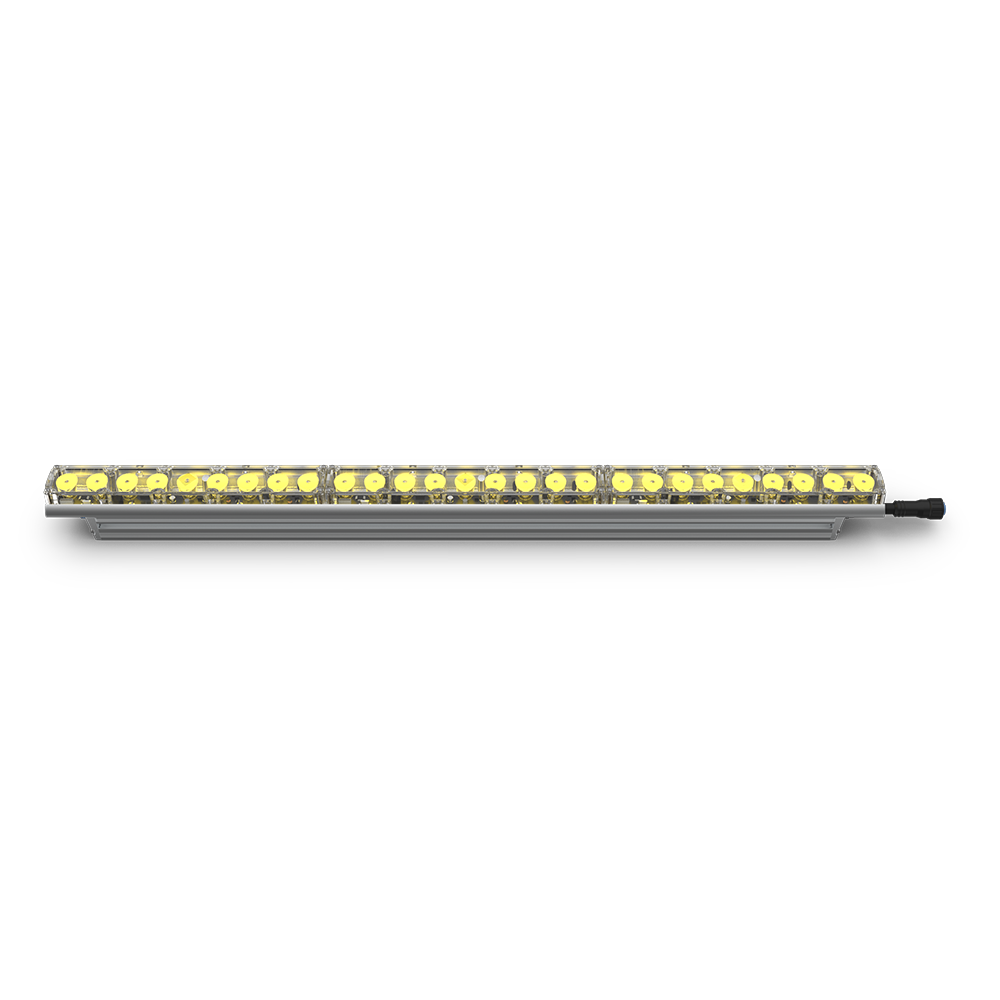

Ilumiline ML

Overview
The Ilumiline ML is a slim linear LED luminaire from Iluminarc's Ilumiline series, built around 27 quad-color (RGBL) LEDs in a rugged IP66 aluminum housing. It is designed as an architectural batten for grazing, cove, and linear façade lighting where full-spectrum color mixing and outdoor durability are required.

Best for
Linear façade washes, architectural coves, and other grazing or accent lighting applications on buildings, bridges, and landscape structures.

Highlights

• 27 quad-color (RGBL) LEDs for a wide color gamut and smooth pastels
• IP66-rated housing suited to outdoor and wet-location installs
• USITT DMX-512a/RDM control with selectable channel personalities
• Accepts optional snap-on spread filters to reshape the beam
• 50,000-hour rated LED life

Key Specs

• Light source: 27 x 3.5 W quad-color (RGBL) LEDs
• Output: 2,390 lumens with installed optics
• Beam angle: 14.3° standard (24.5°–40.3° with optional filters)
• IP rating: IP66
• Control: USITT DMX-512a, RDM
• Power: 100–277 VAC, 50/60 Hz, 64–66 W
