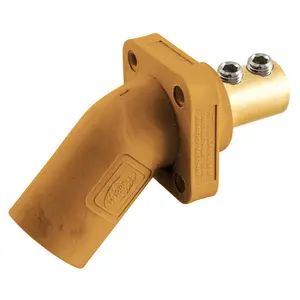

HBLMRAO - Hubbell Single Pole, 300/400A Angle Inlet, Screw, Orange
Regular price
$103.22 USD
Sale price
Regular price
Shipping calculated at checkout.
Overview
Hubbell single pole devices connect one large conductor per device for temporary high-current power. Series 15 devices are rated 150 A for #8 to #2 AWG cable, and Series 16 devices cover 300 A and 400 A for feeder cable up to 4/0 AWG. Each device locks with a turn and has a color-coded thermoplastic elastomer body so phases, neutral and ground are easy to identify.
Best for
Temporary power distribution for concerts, festivals, film and TV sets, conventions, theme parks and generator tie-ins.
Highlights
- Insulgrip®-style housing for a secure grip
- Non-conductive retaining screw locks contacts in place
- Large raised alignment arrow for quick, correct mating
- Brass contacts; color-coded bodies for phase identification
- Listed to UL 498 and UL 1691 for single pin devices
Key Specs
- Part Number: HBLMRAO
- Brand: Hubbell
- Type: Single Pole
- Detail: 300/400A Angle Inlet
- Termination: Screw
- Color / Material: Orange
