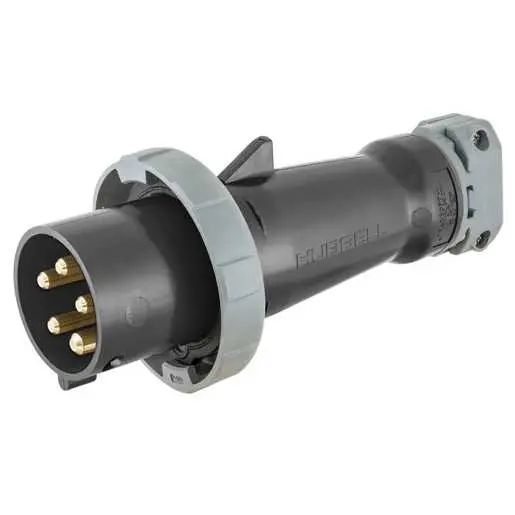

HBL5100P5W - Hubbell Pin & Sleeve, Plug, 4P5W, 100A 347/600V, NEMA 4X/IP69K
Regular price
$623.08 USD
Sale price
Regular price
Shipping calculated at checkout.
Overview
Hubbell HBL® pin and sleeve devices are built to IEC 60309 for the North American market. They use a rugged one-piece housing, a thermoset polyester contact carrier that resists electrical tracking and heat, solid one-piece pins and a heavy-duty external cord grip. Watertight models are rated NEMA 4X / IP69K where noted.
Best for
High-amperage power connections for production power, generators, outdoor events, wash-down and industrial areas.
Highlights
- IEC 60309 pin and sleeve design, color-coded by voltage
- Rugged one-piece housing with external cord grip
- Thermoset polyester contact carrier
- Horsepower-rated plugs and receptacles can serve as a line-of-sight disconnect (NEC 430.109(F))
Key Specs
- Part Number: HBL5100P5W
- Brand: Hubbell
- Type: Pin & Sleeve
- Detail: Plug
- Poles / Wires: 4-pole, 5-wire
- Rating: 100A 347/600V
- Enclosure Rating: NEMA 4X/IP69K
