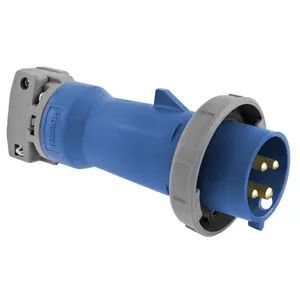

HBL4100P9W - Hubbell Pin & Sleeve, Plug, 3P4W, 100/125A 200-250V, NEMA 4X/IP69K

Overview
Hubbell HBL® pin and sleeve devices are built to IEC 60309 for the North American market. They use a rugged one-piece housing, a thermoset polyester contact carrier that resists electrical tracking and heat, solid one-piece pins and a heavy-duty external cord grip. Watertight models are rated NEMA 4X / IP69K where noted.

Best for
High-amperage power connections for production power, generators, outdoor events, wash-down and industrial areas.

Highlights

• IEC 60309 pin and sleeve design, color-coded by voltage
• Rugged one-piece housing with external cord grip
• Thermoset polyester contact carrier
• Horsepower-rated plugs and receptacles can serve as a line-of-sight disconnect (NEC 430.109(F))

Key Specs

• Part Number: HBL4100P9W
• Brand: Hubbell
• Type: Pin & Sleeve
• Detail: Plug
• Poles / Wires: 3-pole, 4-wire
• Rating: 100/125A 200-250V
• Enclosure Rating: NEMA 4X/IP69K
