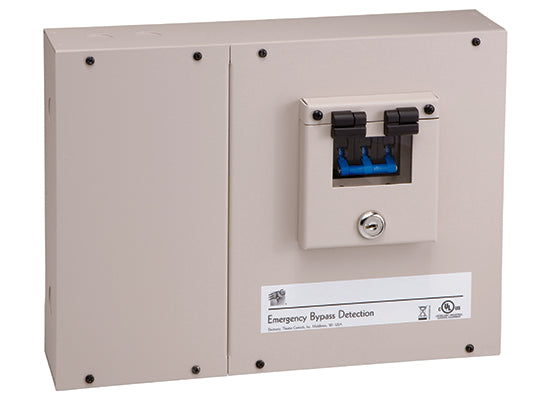

Emergency Bypass Detection Kit

Overview
The ETC Emergency Bypass Detection Kit is part of the ETC Emergency Bypass & Emergency Lighting Transfer range. ETC emergency lighting products let normal lighting fixtures serve as emergency egress lighting. The family includes the UL 924 Emergency Bypass Detection Kit, Automatic Load Control Relays (ALCR), DMX Emergency Bypass Controllers, and the UL 1008 SC1008 branch circuit emergency lighting transfer switch.

Best for
Theaters, houses of worship, schools and commercial buildings where controlled fixtures must go to full or a preset look during power loss or fire alarm.

Highlights

• EBDK senses single- or three-phase normal power and triggers up to three UL 924 devices
• ALCR forces emergency fixtures to full on power loss or fire alarm, with 0-15 minute hold delay
• DMX Emergency Bypass Controller recalls a custom DMX 'panic look' (1- or 6-output models)
• SC1008 transfers a single 20A circuit at 120V or 277V
• Maintained reset kits and mounting kits available

Key Specs

• Part Number: 7180A1200
• Listings: UL 924 (EBDK, ALCR, DEBC); UL 1008 (SC1008)
• ALCR: 120/277V; 20A electronic, 10A magnetic/incandescent
• DEBC power: 100-277VAC, 50-60Hz
• DEBC outputs: 1 or 6 DMX512A
• SC1008: Single 20A branch circuit, 120V or 277V
