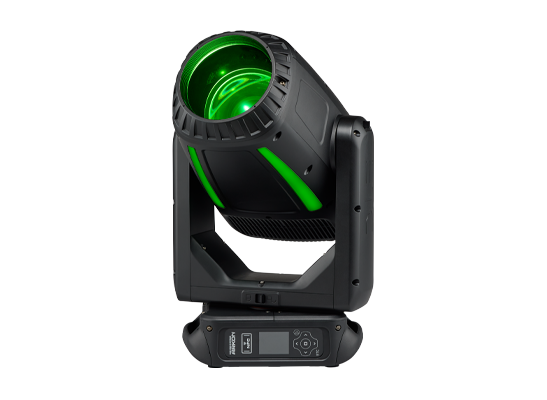

Arkon Automated LED Beam Fixture, IP54

Overview
Arkon is an ETC automated LED beam fixture built around an RBL (red, blue, lime) additive LED engine rated at over 10,500 lumens. ETC describes the field as even across the beam, with no hot spot or edge fall-off. A twelve-color wheel with split colors, two gobo wheels, two fast frosts and a quad-prism system cover the effects side. Arkon Vibes adds four pixel-controlled RGB accent strips on the housing, which can run with the beam off. The fixture is IP54 rated for indoor and outdoor use.

Best for
Touring, festival, concert, worship and outdoor rigs that need a bright, weather-rated beam with strong graphic and eye-candy effects.

Highlights

• RBL additive LED engine, over 10,500 lumens, 50,000-hour source life
• Twelve-color wheel with split-color projection
• 8 rotating and 11 fixed gobos
• Two fast frosts and a quad-prism system with 8 combined prism effects
• Arkon Vibes: 4 RGB accent strips, 132 individually controlled pixels, with built-in macros
• IP54 weather rating; linear fan control, HazeFree, built-in networking and NFC

Key Specs

• Part Number: ARKON
• Light source: RBL LED engine
• Output: 10,500+ lumens
• Color: 12-color wheel, split colors
• Gobos: 8 rotating, 11 fixed
• Prisms: 4 (8 combined effects); Frost: 2
• Accent pixels: 132 RGB (Arkon Vibes)
• Rating: IP54
• Warranty: 3 years fixture, 5 years LED array
