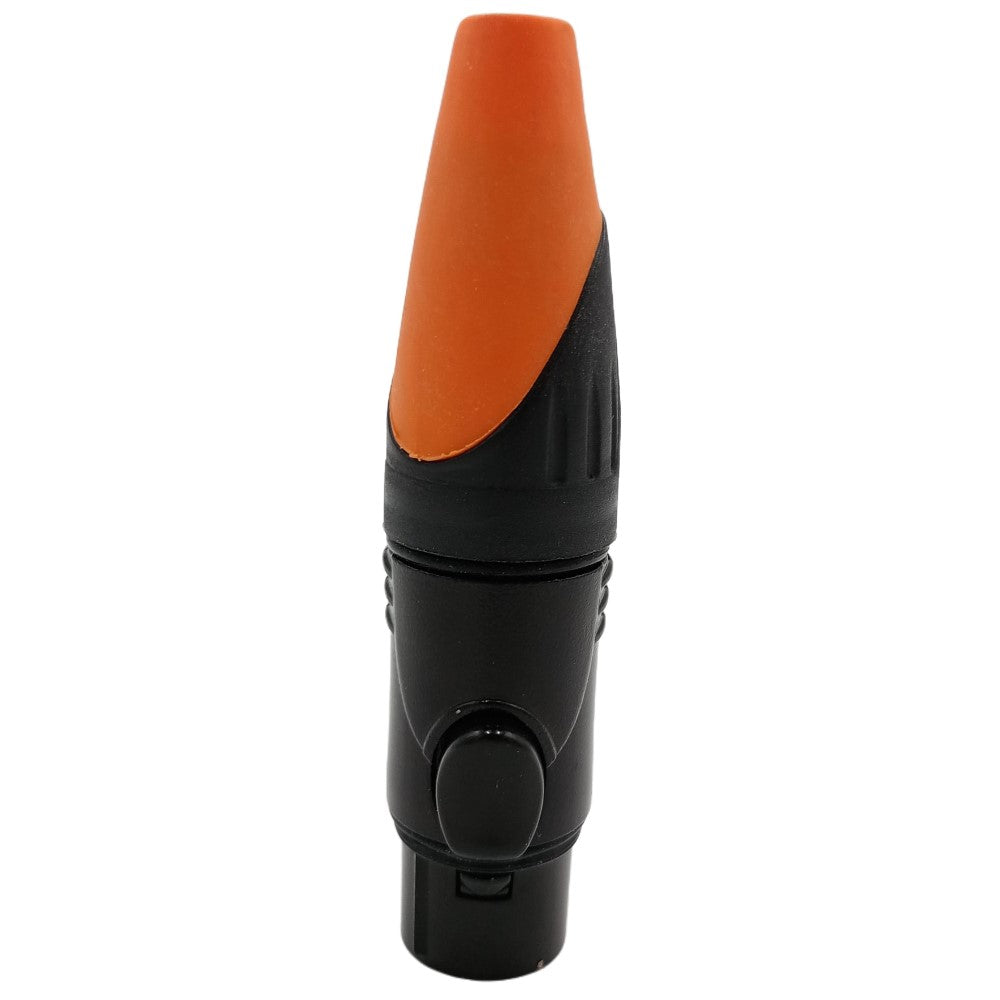

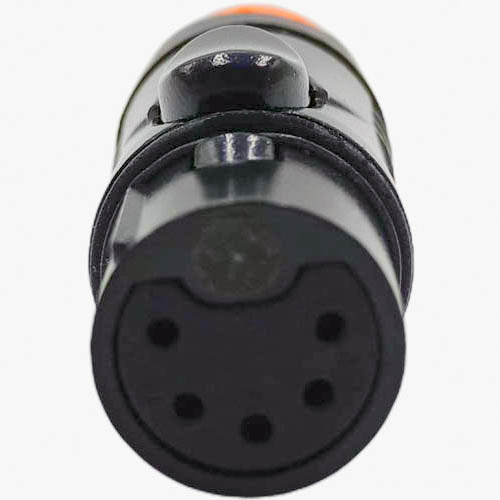

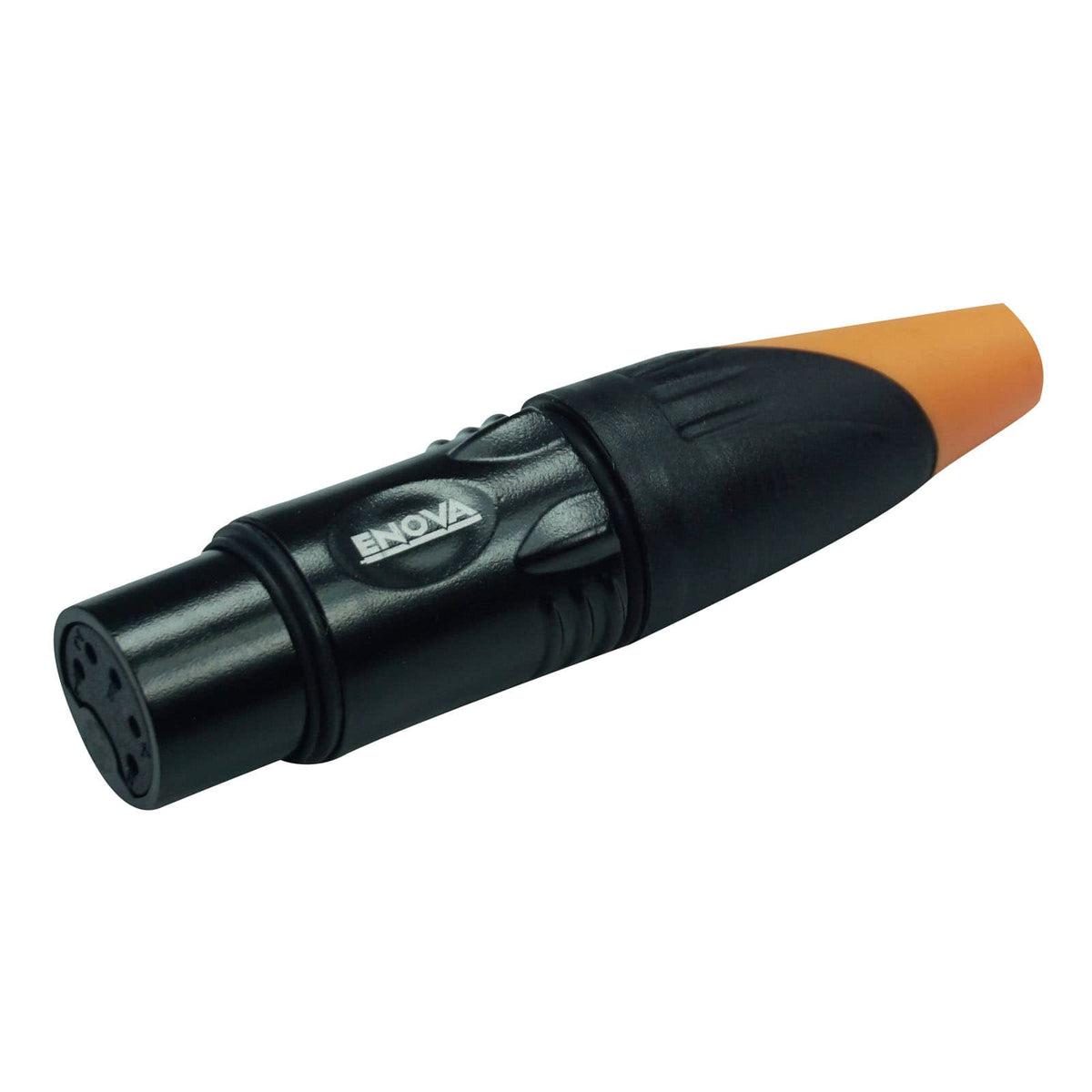

XL25FB-W - XLR cable connector female 5-pin IP65 black metal housing and orange boot solder cups
Regular price
$4.29 USD
Sale price
Regular price
Overview
Enova XLIP series XLR 5-pin female cable connector, IP65 rated when mated with the matching XLIP connector. Black metal housing, orange boot, solder cups, a robust release button and a liquid- and dust-proof rear nozzle.
Best for
Outdoor and wet-location DMX runs, used with matching Enova IP65 XLR connectors.
Highlights
- IP65 (EN 60529) when mated
- NBR sealing
- Solder termination
Key Specs
- Connector: XLR 5-pin female, cable mount
- Protection: IP65 when mated
- Termination: Solder cups
- Housing: Zinc alloy (ZZNAL4-1), black with orange boot
- Contact resistance: ≤ 3 mΩ
- Insulation resistance: > 10 GΩ
- Operating temperature: -30 °C to +80 °C
- Part number: XL25FB-W
