XL13FB-G - 3-pin XLR Chassis female, black housing and gold contacts
Regular price
$2.76 USD
Sale price
Regular price
Overview

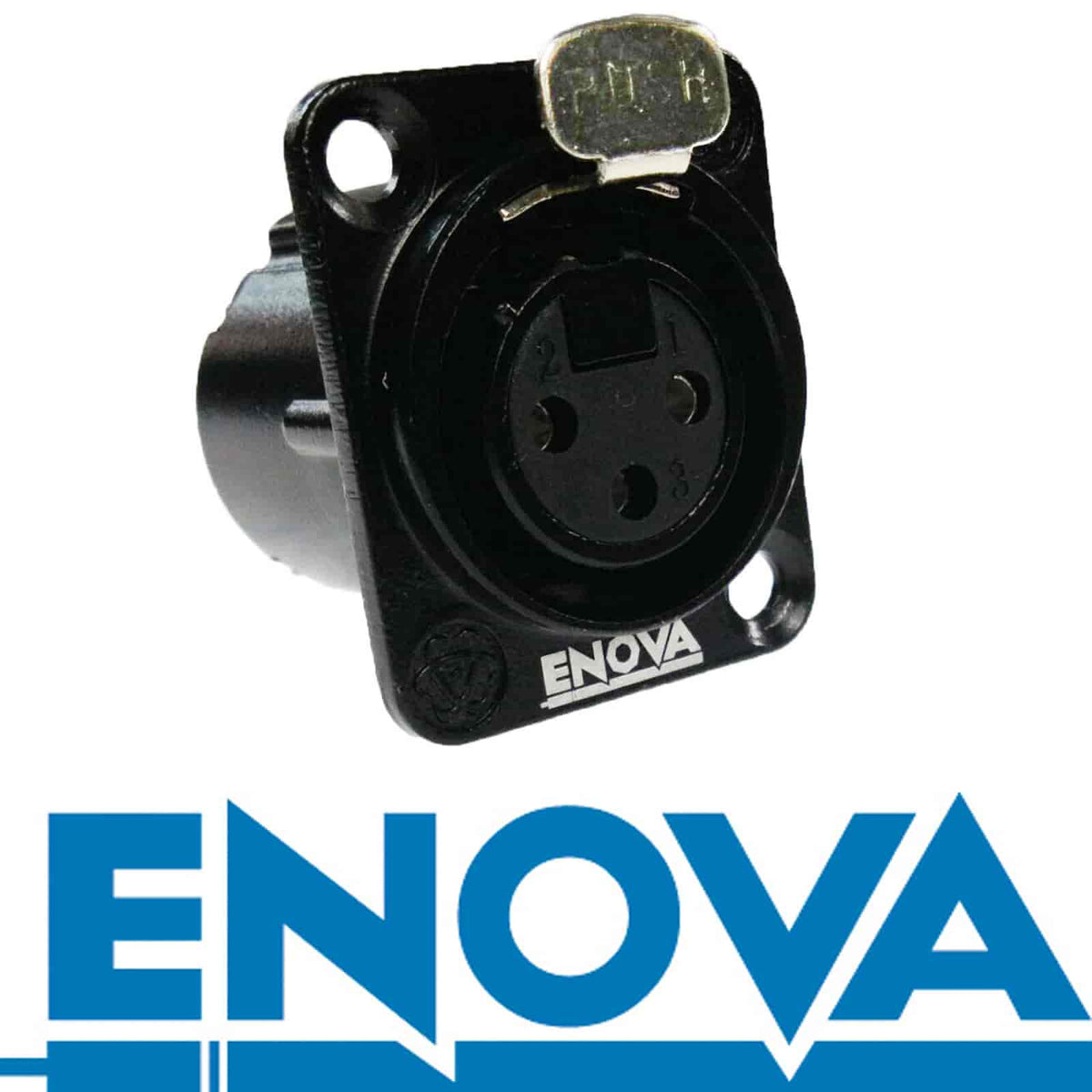

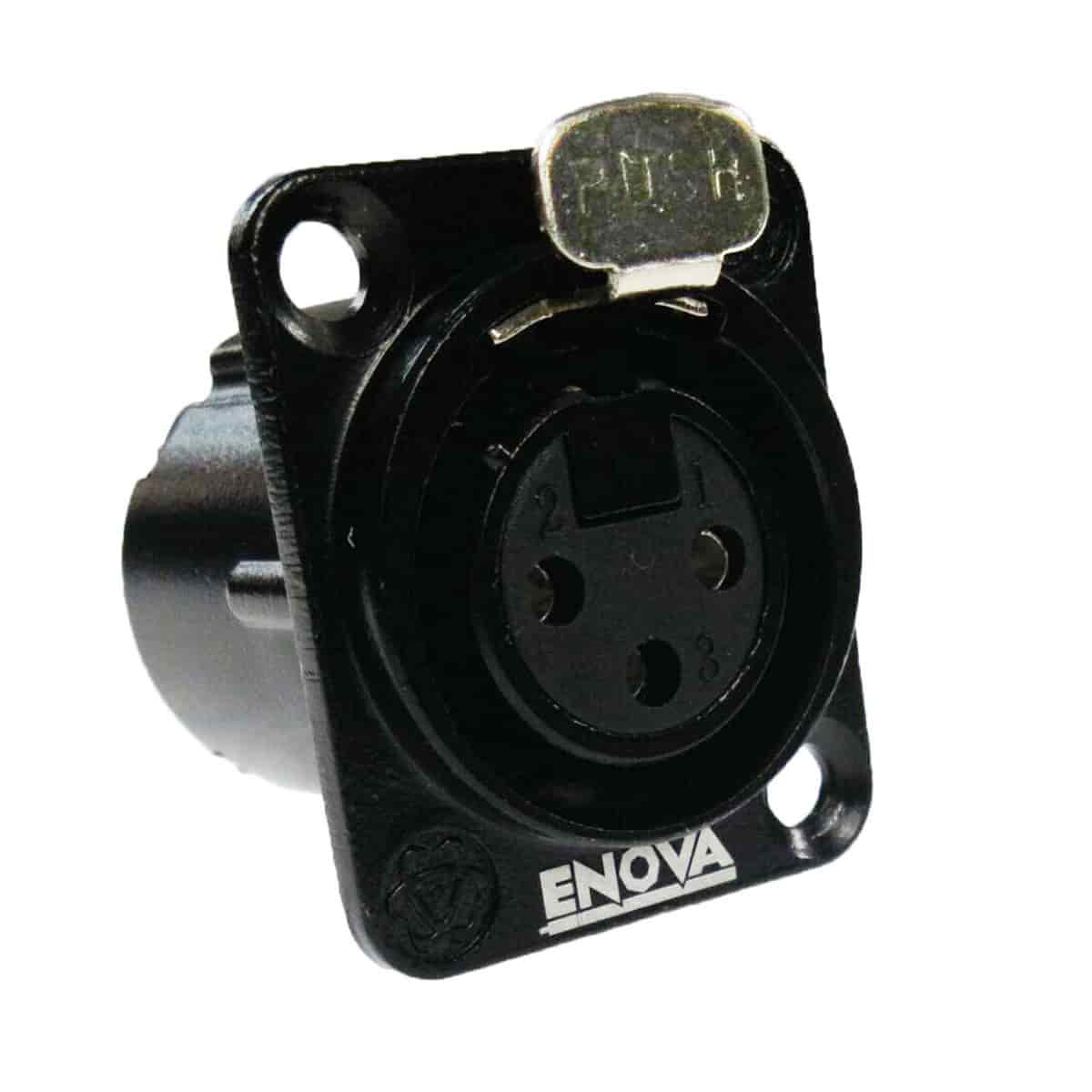

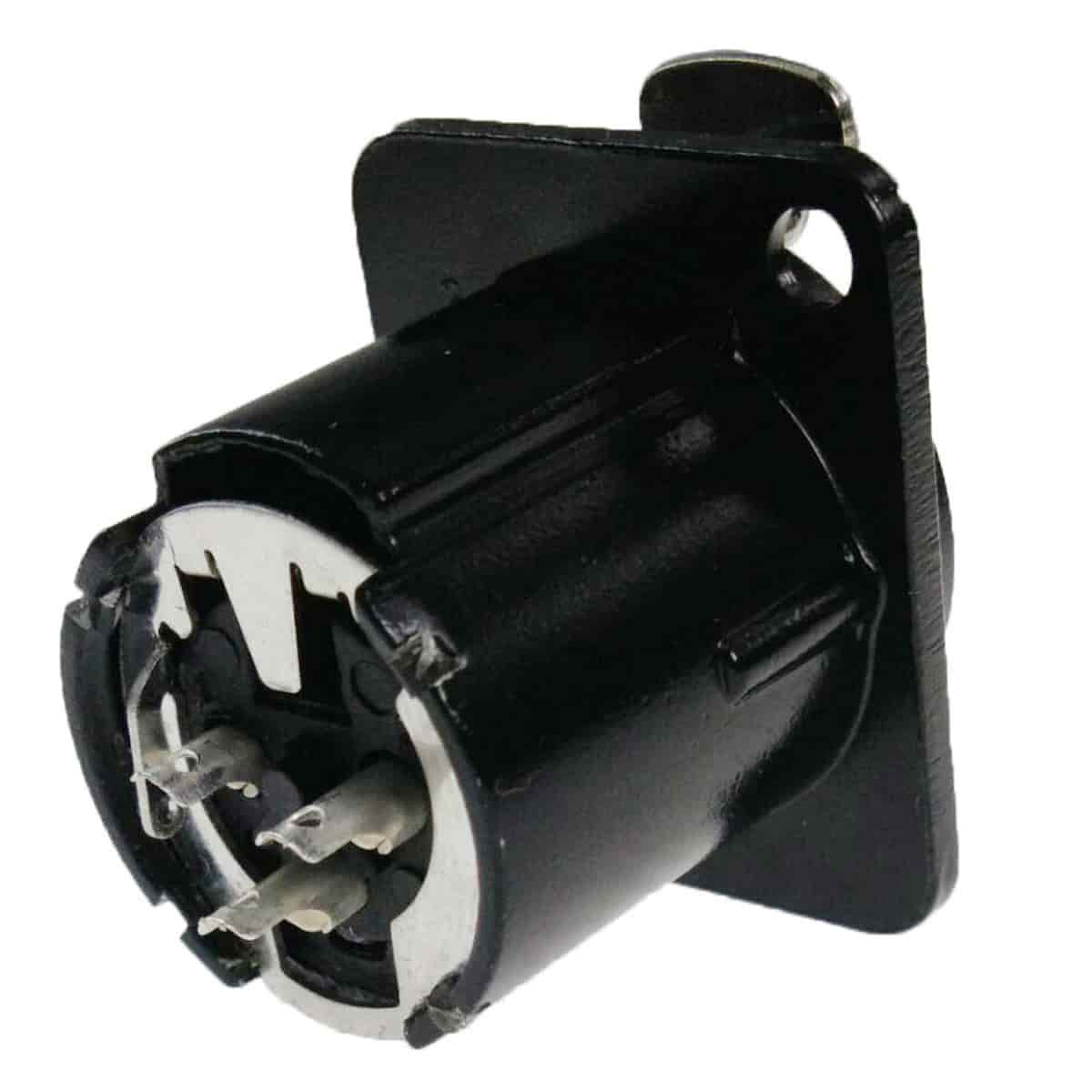

Enova XL series XLR 3-pin female chassis (panel-mount) connector with a black metal housing and solder cups. It mounts in a standard Ø 24 mm XLR (D-size) cut-out.
Best for
Rack panels, connection panels, wall plates and custom microphone and audio boxes.
Highlights
- Standard D-size cut-out with 2 mounting holes
- Black metal housing
- Solder termination
Key Specs
- Connector: XLR 3-pin female, chassis mount
- Termination: Solder cups
- Mounting: Ø 24 mm cut-out, 24 x 19 mm fixing, 2 x Ø 3.6 mm holes
- Housing: Zinc alloy (ZZNAL4-1), black
- Contact resistance: ≤ 3 mΩ
- Insulation resistance: > 10 GΩ
- Plug cycles: 1000
- Operating temperature: -30 °C to +80 °C
- Contacts: Gold plated
- Part number: XL13FB-G
