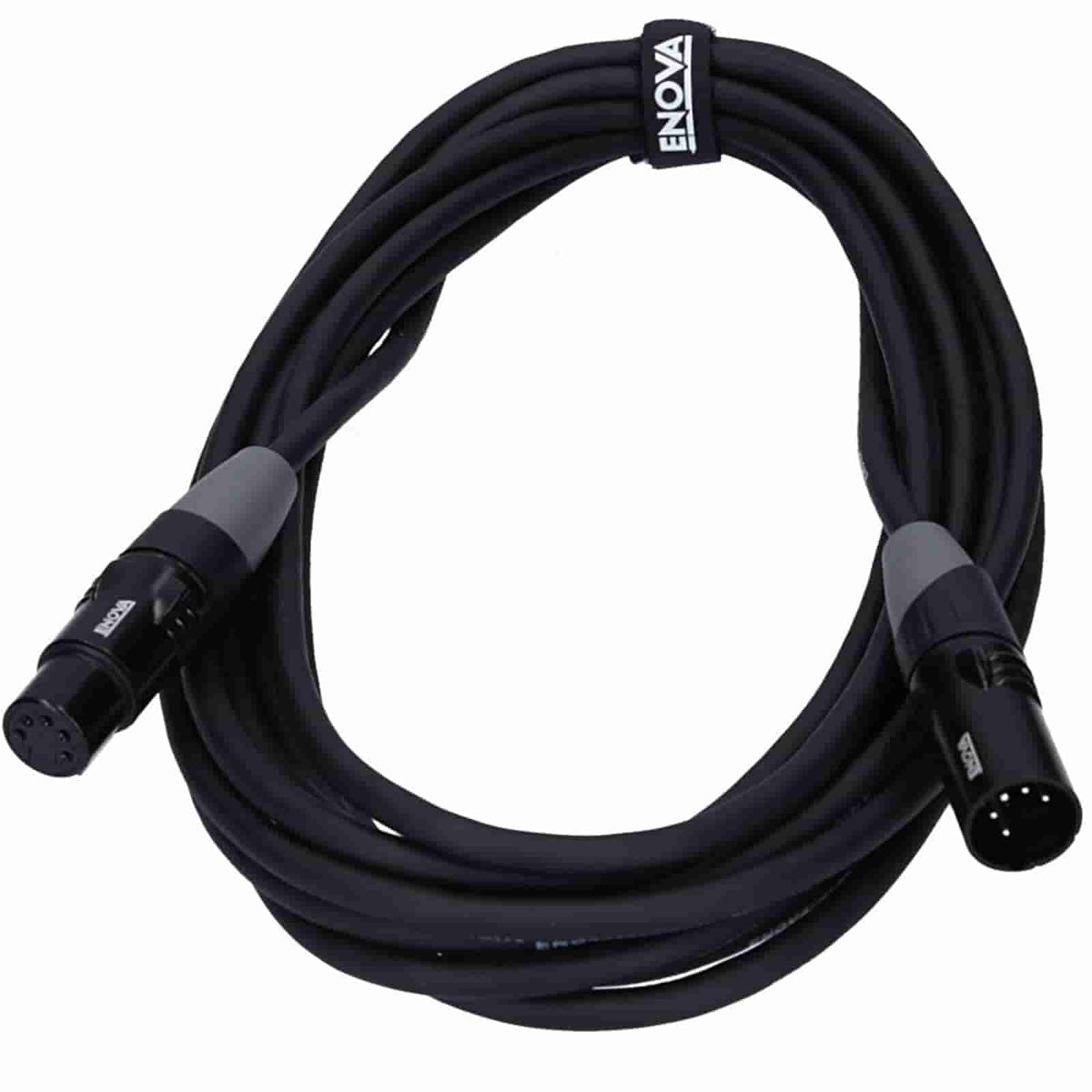

EC-L1-XLFM5-3 - 3 m XLR male 5 pin to XLR female 5 pin DMX cable 5 wires
Regular price
$15.18 USD
Sale price
Regular price
Overview

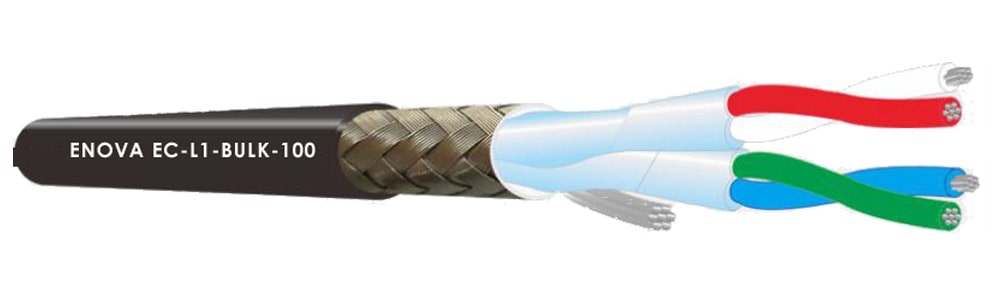

3 m (9.8 ft) Enova L1 series 5-pin DMX cable, XLR male to XLR female, 5 wires. 110 Ω double-shielded cable for precise signal transmission between lighting controllers, moving heads and LED fixtures.
Best for
DMX512 lighting systems in theatres, concerts, clubs and events with 5-pin XLR connections.
Highlights
- 110 Ω impedance
- Double shielded
- Metal Enova XLR connectors
Key Specs

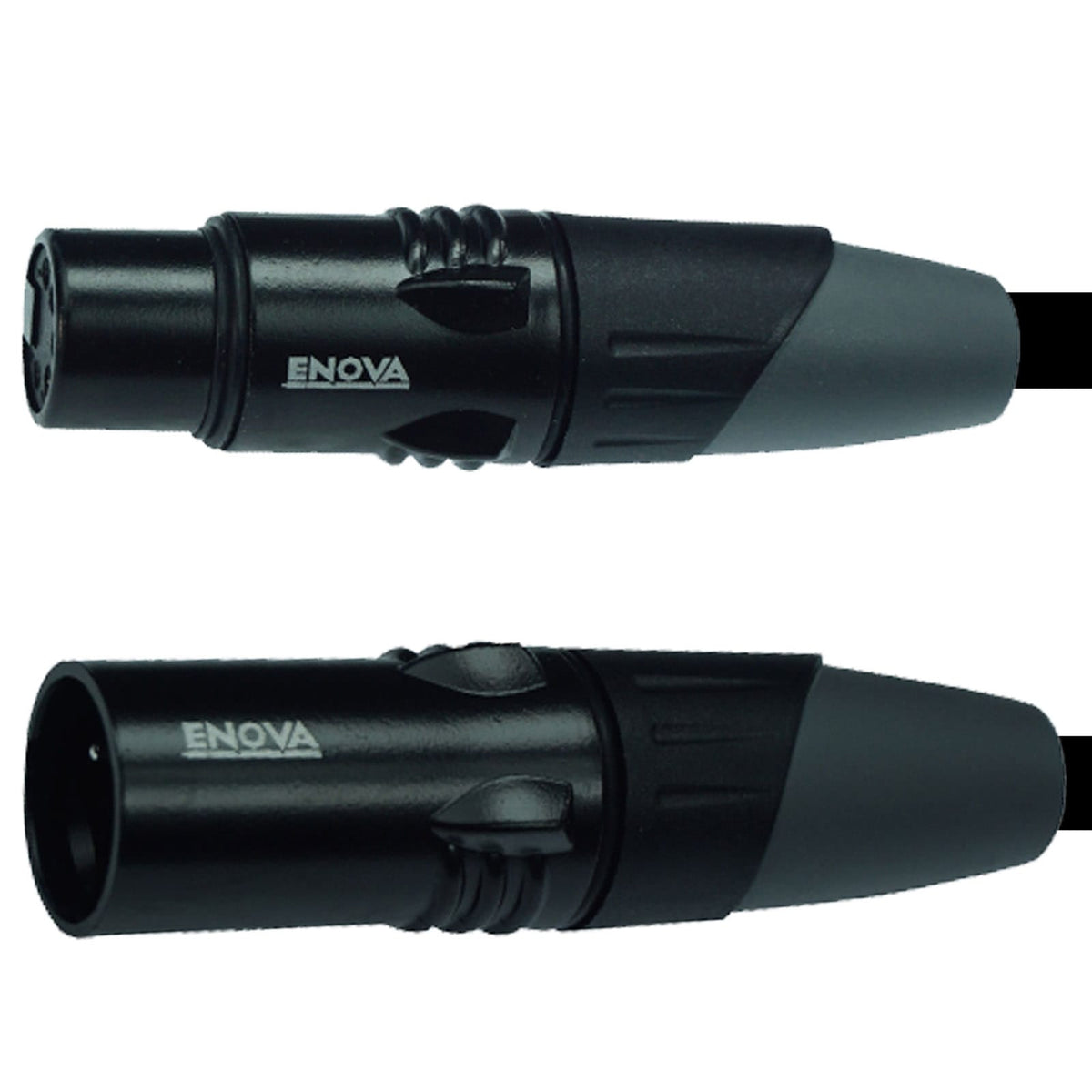

- Connectors: XLR 5-pin male to XLR 5-pin female
- Length: 3 m (9.8 ft)
- Cable diameter: Ø 6.5 mm
- Conductors: 2 x 2 x 0.22 mm² (24 AWG)
- Impedance: 110 Ω
- Shield: Double shielded
- Conductor resistance: < 80 Ω/km
- Shield resistance: < 27 Ω/km
- Operating temperature: -20 °C to +60 °C
- Part number: EC-L1-XLFM5-3
