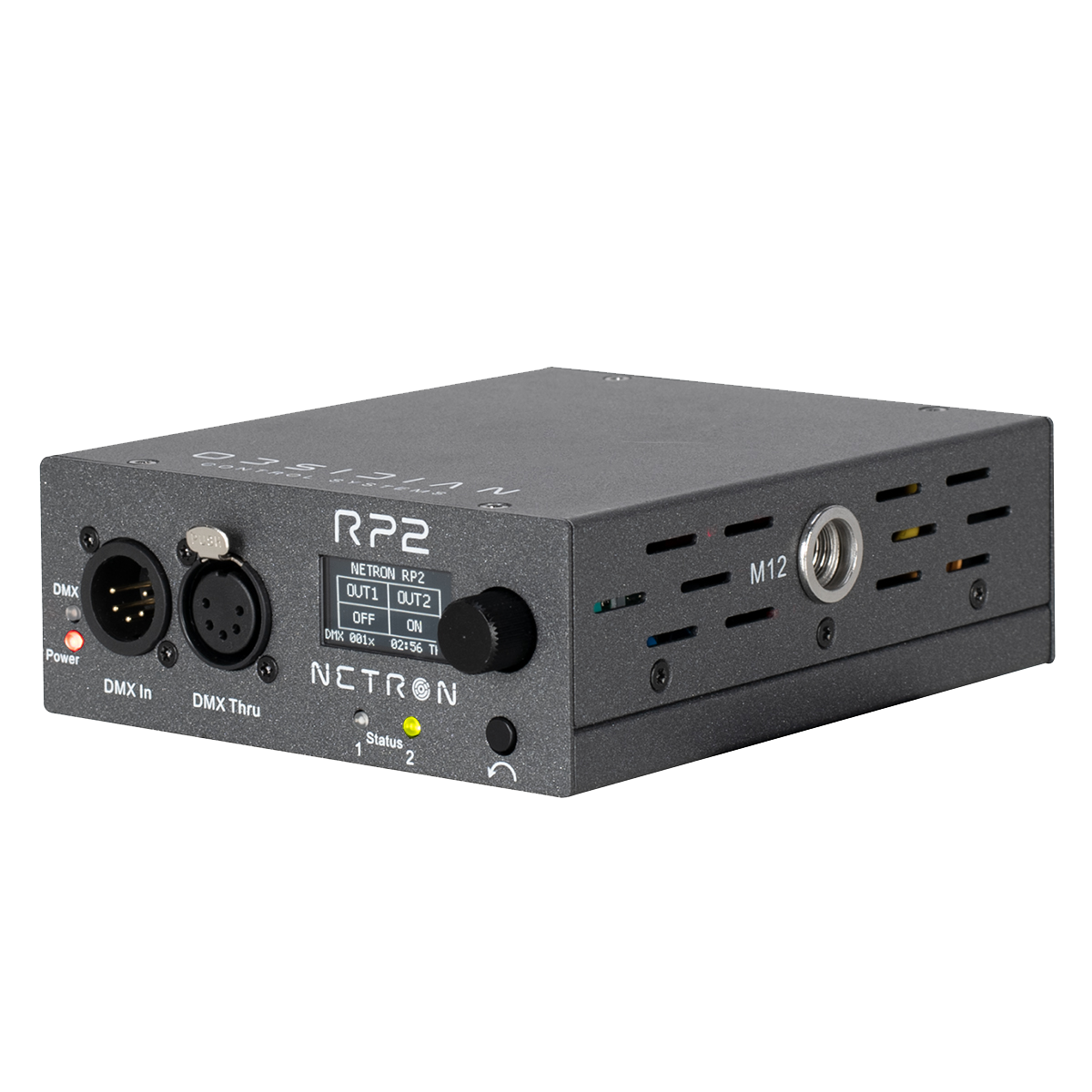

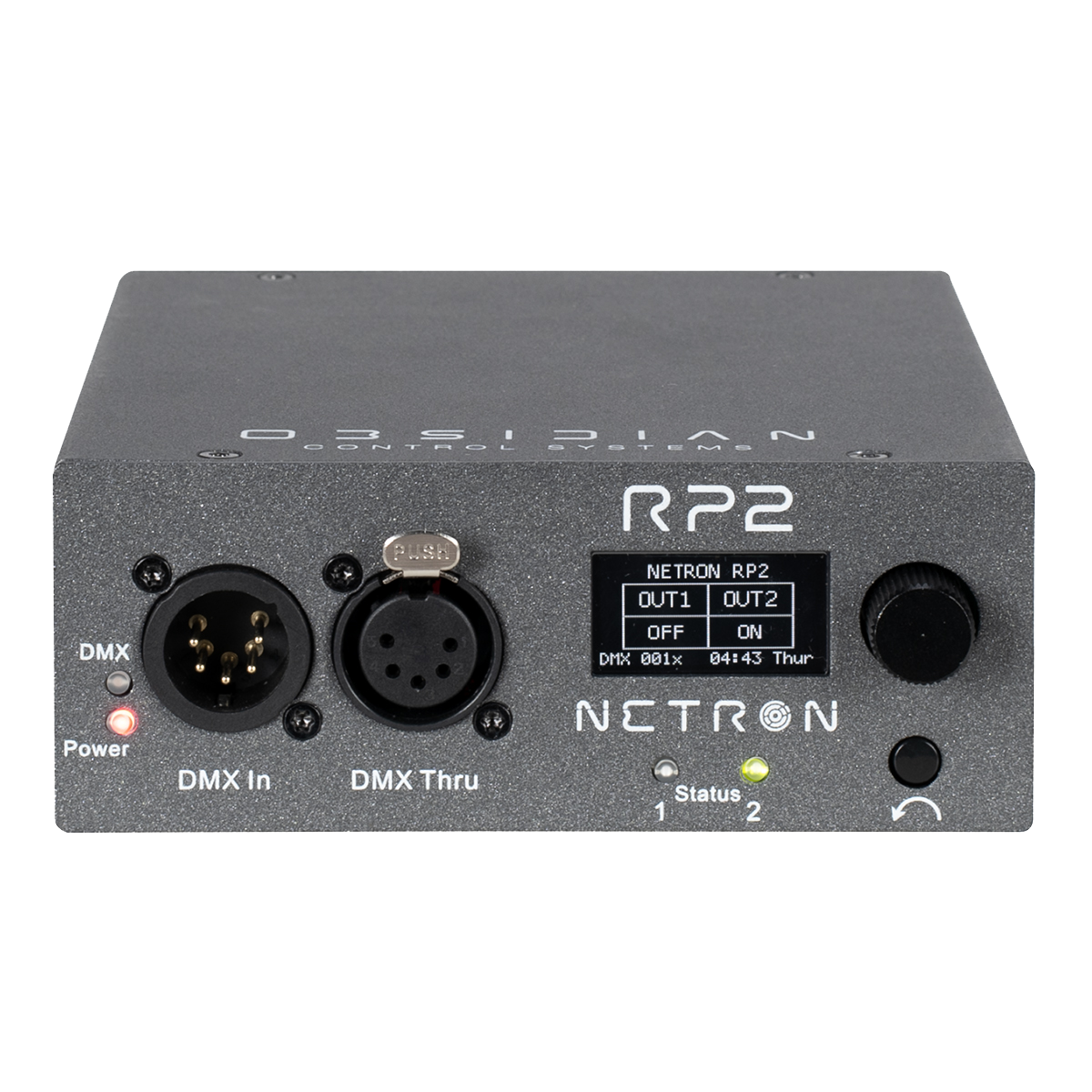

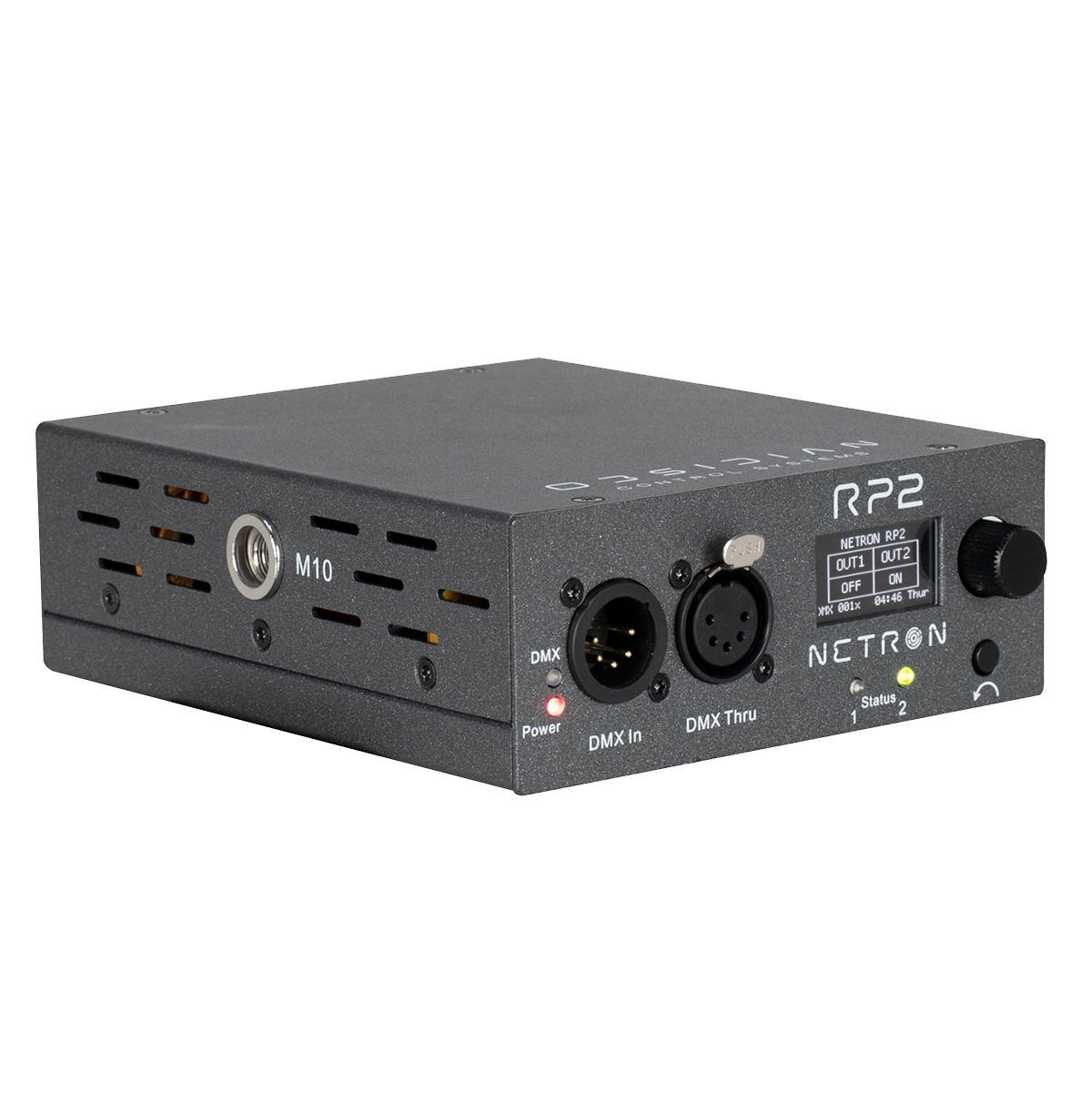

NRP201 - RP2 - DMX Relay, 2-Channel 16A, Scheduler

Overview
The Obsidian Control Systems NETRON RP2 is a 2-way DMX power relay that protects fixtures, lowers power use and reduces wear. It is configured from an OLED display and encoder.

Best for
Installs that switch fixture power on DMX signal or on a schedule.

Highlights

• Two independent relay circuits with high-current dual-pole relays
• RDM support for remote monitoring
• 24-hour / 7-day event scheduler
• DMX signal sensing and smart power sequencing
• Current sensing per output with peak power tracking
• Supports 208V and Delta power systems

Key Specs

• Mounting: standalone, truss, wall, DIN rail
• Connections: 5-pin DMX/RDM in and thru; IP65 power in; (2) IP65 switched power out
• Current: 16A
• Voltage: 100-240V, 47/63 Hz
• Dimensions (L x W x H): 6.83 x 5.22 x 1.97 in. (173.5 x 132.6 x 50 mm)
• Weight: 1.32 lb (0.6 kg)
• Use: indoor only
