NFS116 - FS16 - 12+4 Fiber Network Switch with PoE

Overview

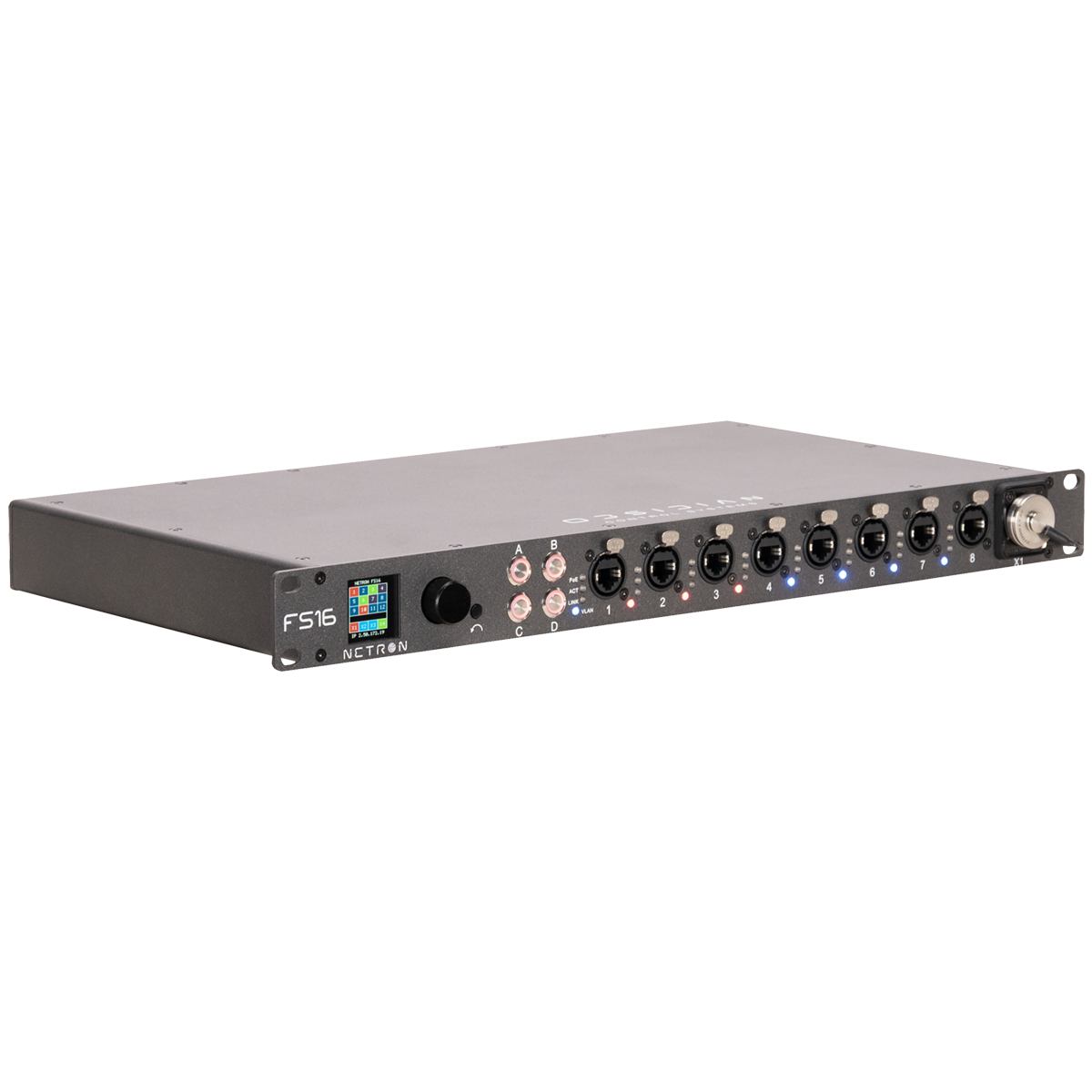

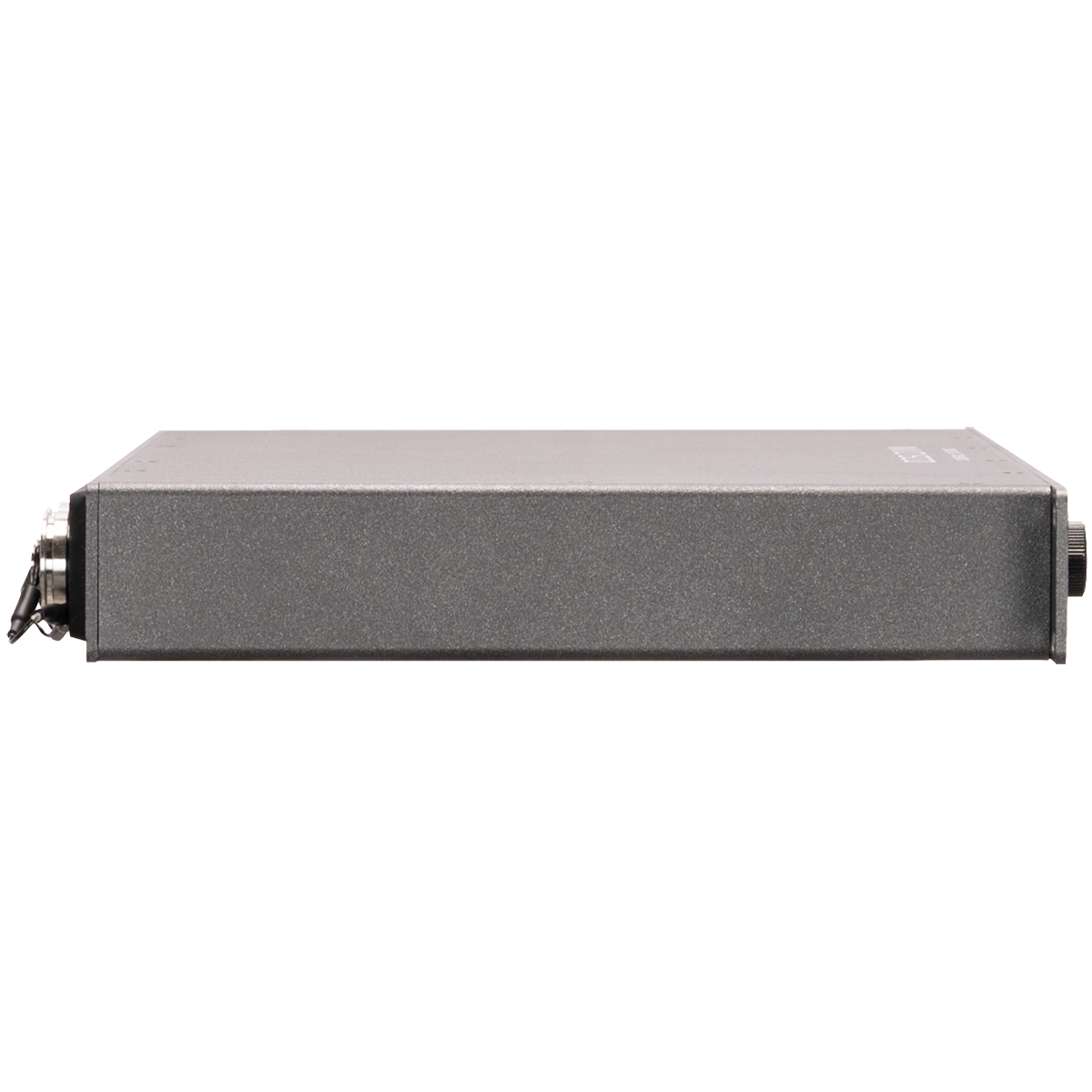

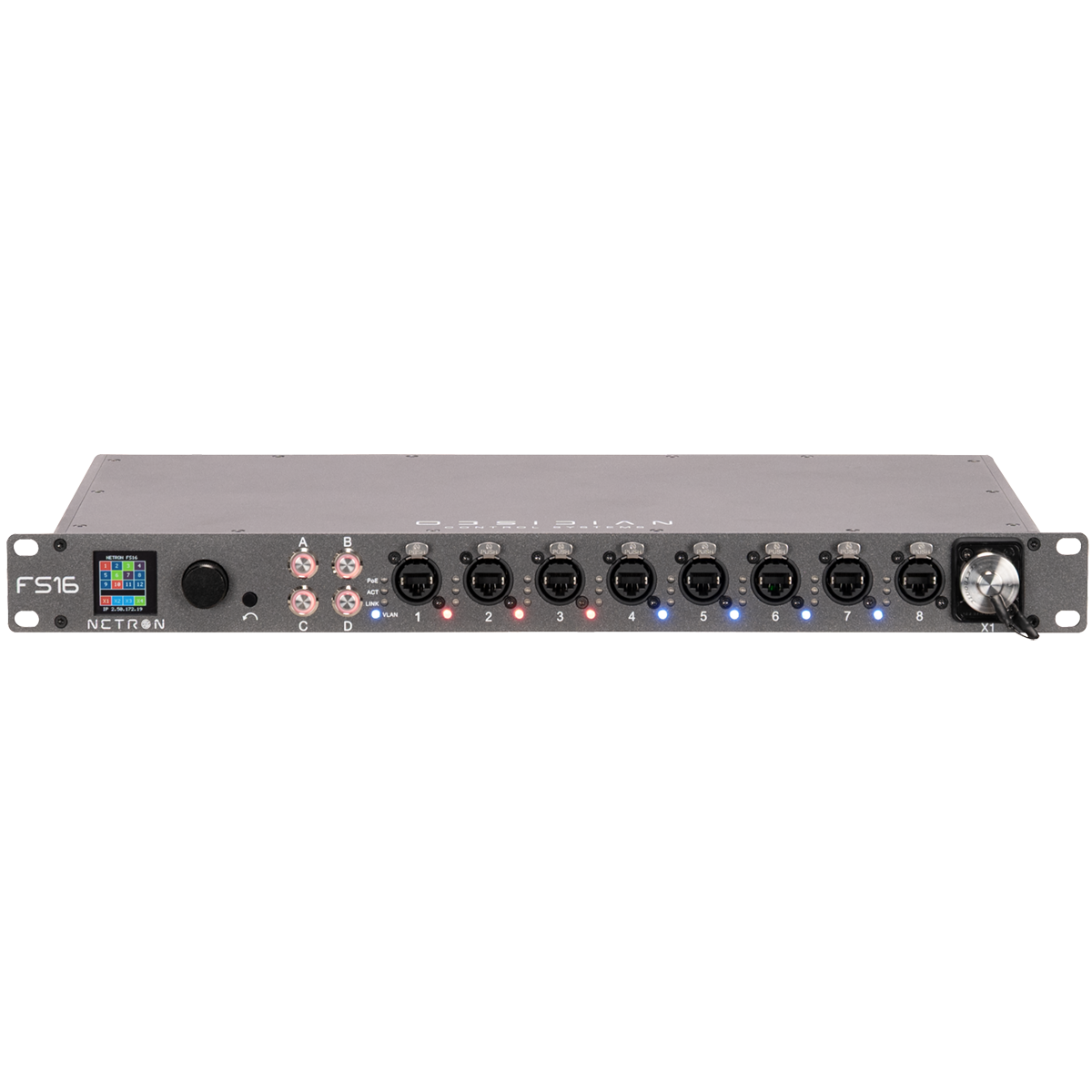

The Obsidian Control Systems NETRON FS16 is a 1U rackmount managed network switch for entertainment lighting. It has 12 Gigabit locking RJ45 ports and 4 swappable fiber ports, with a 180W PoE budget.

Best for
Touring and install racks that need a PoE switch with fiber links and lighting network presets.

Highlights

• 1U rackmount switch with 12 Gigabit locking RJ45 and 4 fiber ports
• 180W total PoE budget (PoE and PoE+)
• Four preset buttons for network selection
• OLED display with encoder
• Art-Net and sACN, plus X-Net, HogNet, MA-Net and ETC Net3 support
• Web interface and NETRON Central Utility management

Key Specs

• Mounting: 1U rackmount
• Switching: 6 VLAN groups, IGMP querier/snooping, 48 Gbps capacity
• PoE: 15W (PoE), 30W (PoE+) per port
• Dimensions (D x W x H): 10.33 x 19 x 1.4 in. (262.3 x 482.5 x 44 mm)
• Weight: 7.05 lb (4.2 kg)
• Power: 100-240V, 180W max
