NDR241 - DA2410V - 24-Port 0-10V Node, DIN
Regular price
$587.00 USD
Sale price
Regular price
Overview

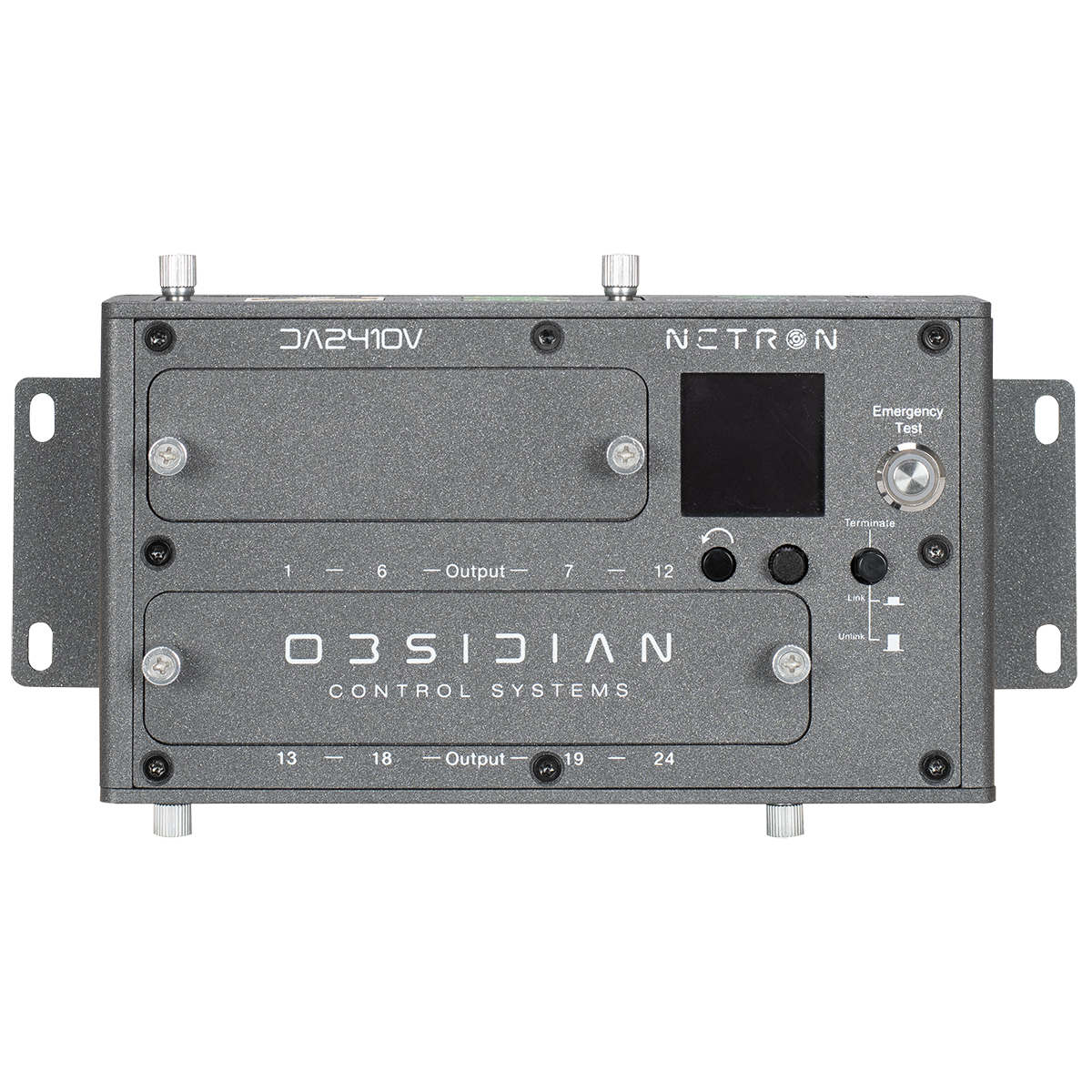

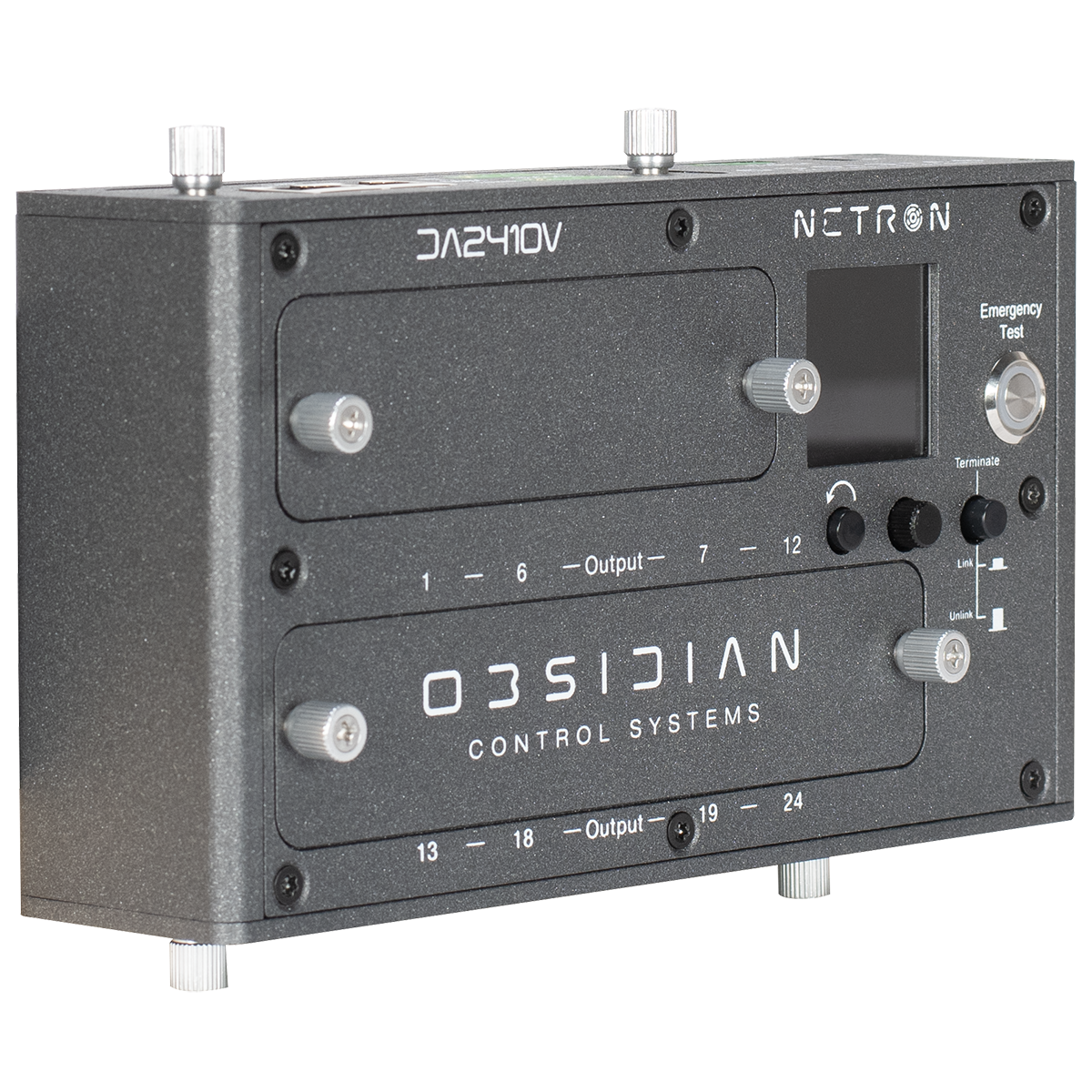

The Obsidian Control Systems NETRON DA2410V is a compact DIN rail or wall-mount Ethernet or DMX gateway with 24 analog 0-10V outputs. It lets lighting networks control 0-10V dimming and analog devices.
Best for
Installations that need to drive 0-10V analog fixtures or dimmers from Art-Net, sACN or DMX.
Highlights
- 24x 0-10V 40mA sink outputs
- Screw terminal or IDC connectivity with configurable port positions
- Supports DMX, RDM, Art-Net and sACN
- 99 internal cues with fade and delay time
- UL 924 emergency cue system with customizable timeout
- PoE or 12-48V DC power
- Remote configuration via internal webpage
Key Specs
- Mounting: DIN rail or wall mount

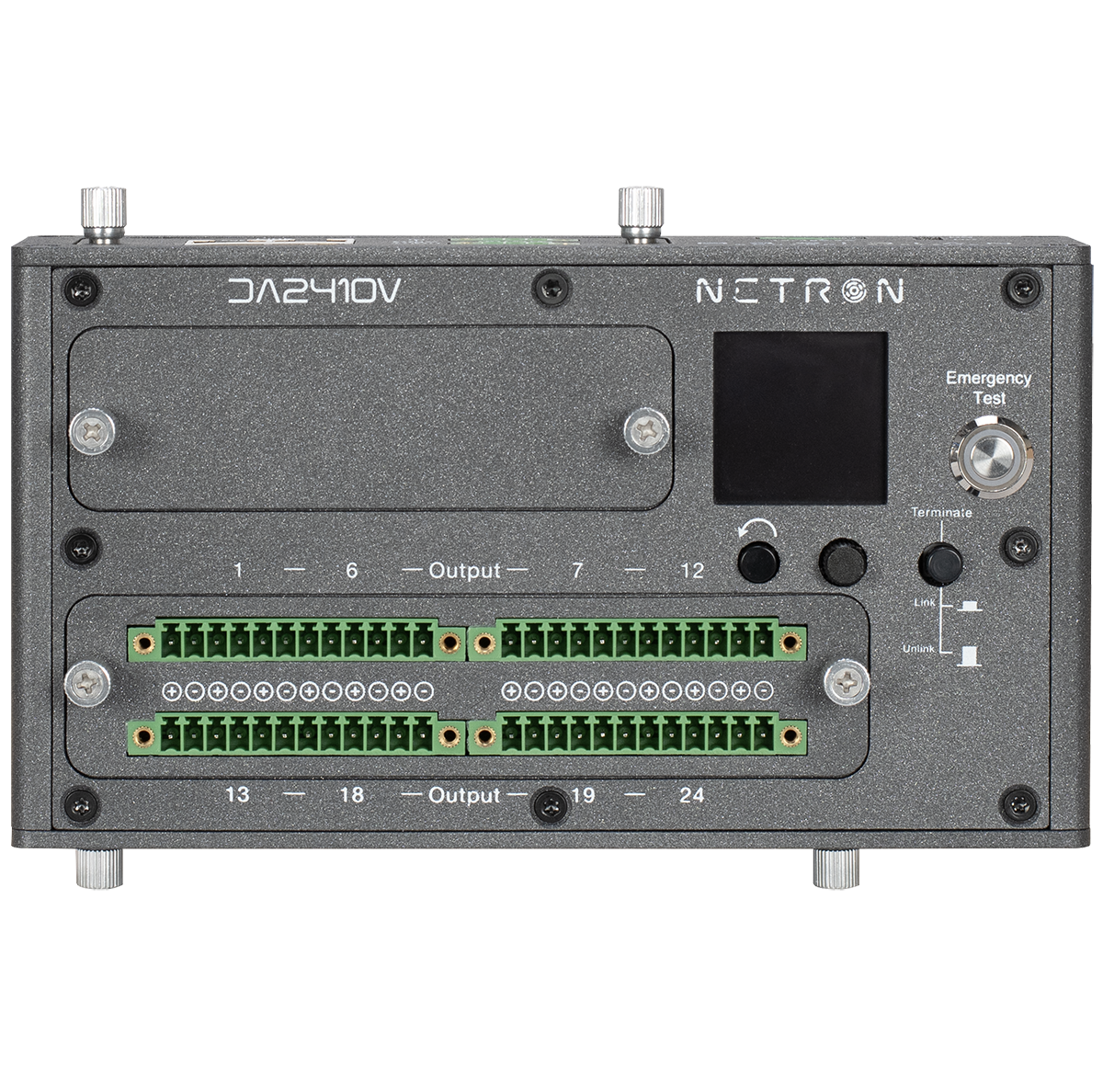

- Connections: 24-port analog (terminal block), (2) RJ45 Gigabit Ethernet (1x PoE) + DMX in/out, emergency contact
- Power: DC 12-48V or PoE
- Dimensions (L x W x H): 4.7 x 5.6 x 2.1 in. (116 x 143 x 52 mm)
- Approvals: cETLus / CE / IP20 / UL924
