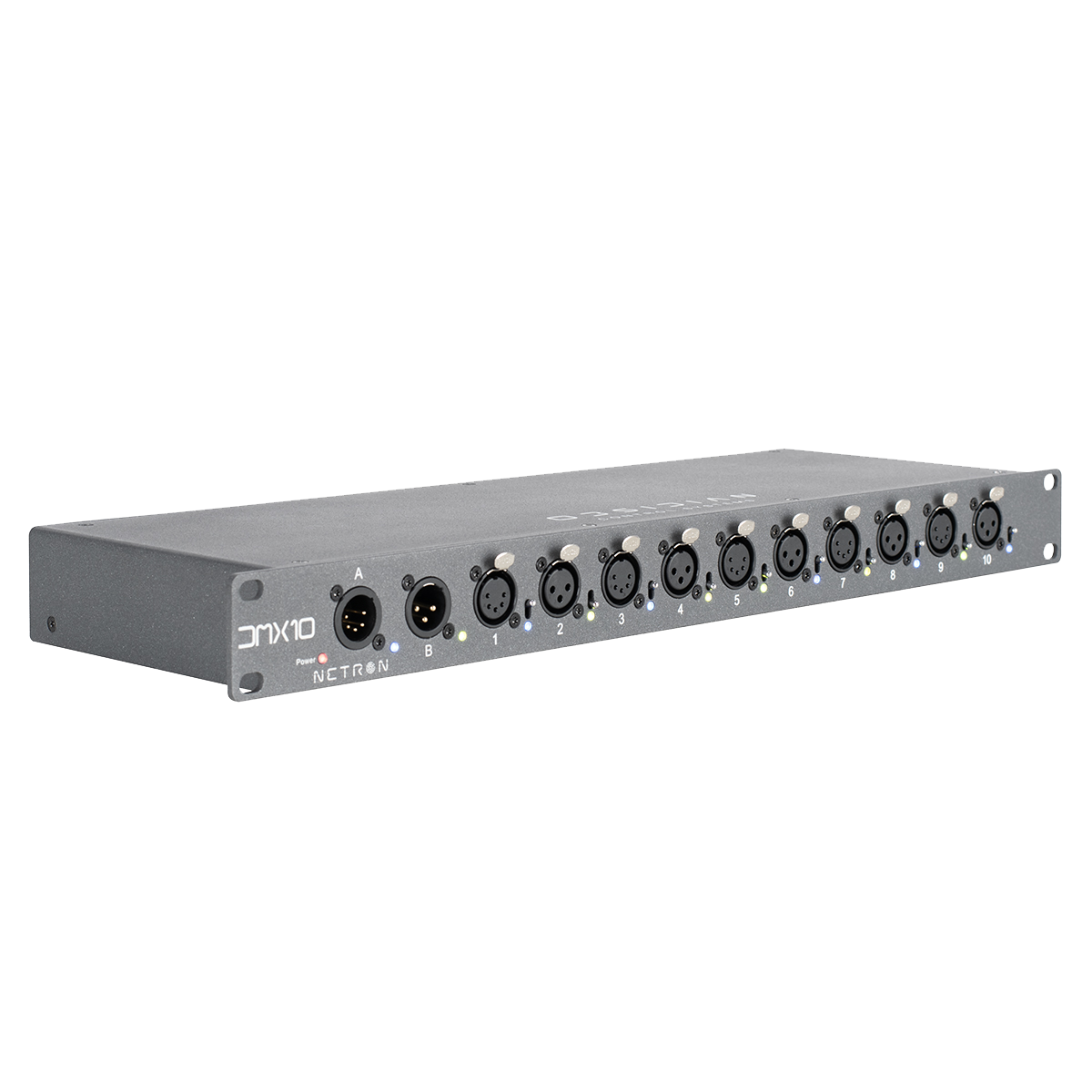

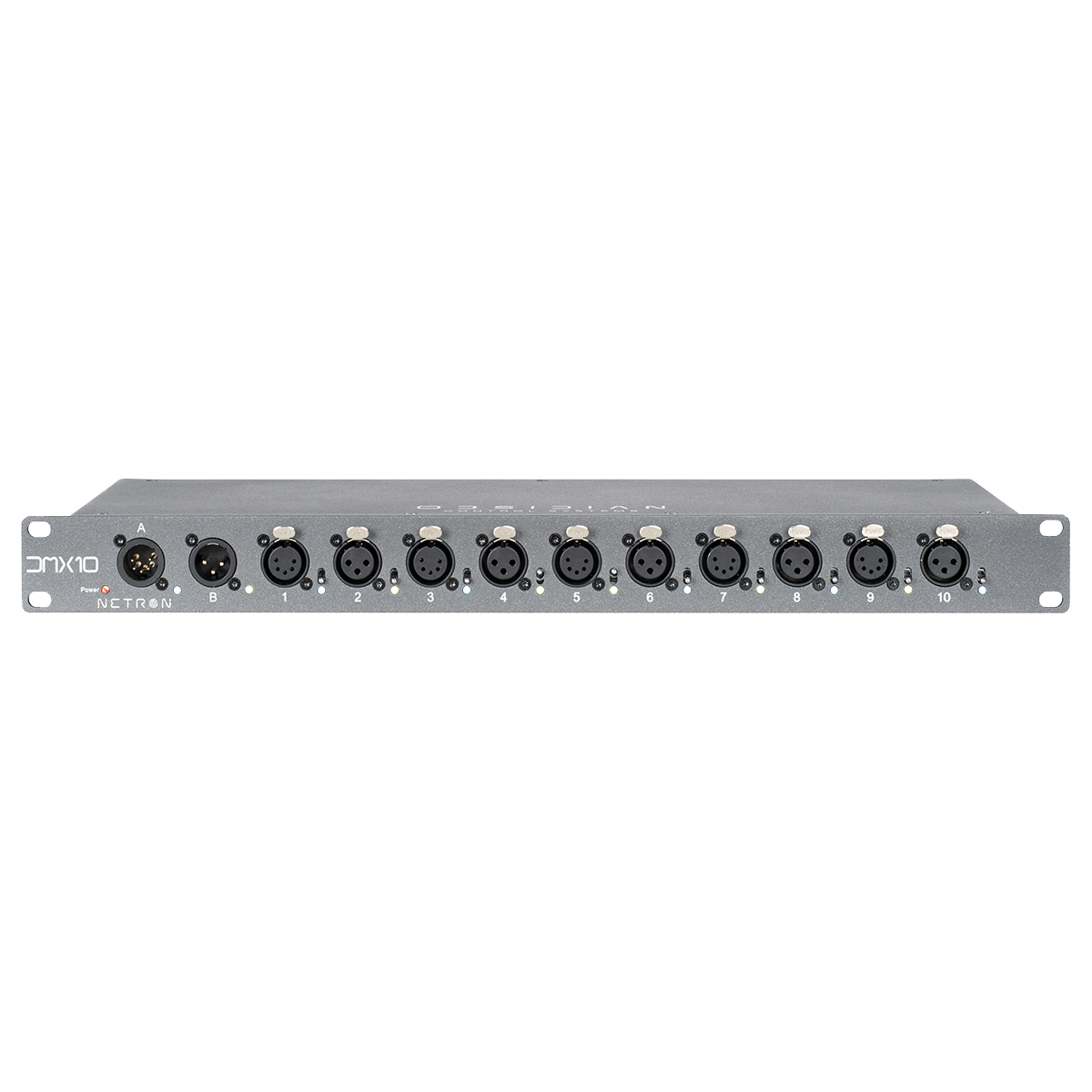

DMX153 - DMX10-53 - DMX A/B Splitter 1x10, 5/3-Pin XLR, 19in

Overview
The Obsidian Control Systems DMX10-53 is a rackmount 10-port DMX splitter with dual inputs and freely assignable 5-pin and 3-pin XLR DMX outputs. Each output can be routed to input A or input B with a toggle switch.

Best for
Installations and touring racks that need to distribute DMX with an A/B source choice per port.

Highlights

• Dual inputs: 5-pin XLR (A) and 3-pin XLR (B)
• 10 isolated outputs, 5 of each connector type
• Per-port A/B routing by toggle switch
• LED feedback indicators
• Powder-coated metal rackmount chassis

Key Specs

• Format: 19 in rackmount, 1U
• Dimensions: 19.0 x 1.7 x 6.1 in (482 x 44 x 155.9 mm)
• Weight: 3.31 lb (1.5 kg)
• Power: 100-240V, 50/60 Hz
• Certifications: cETLus, CE, UKCA
