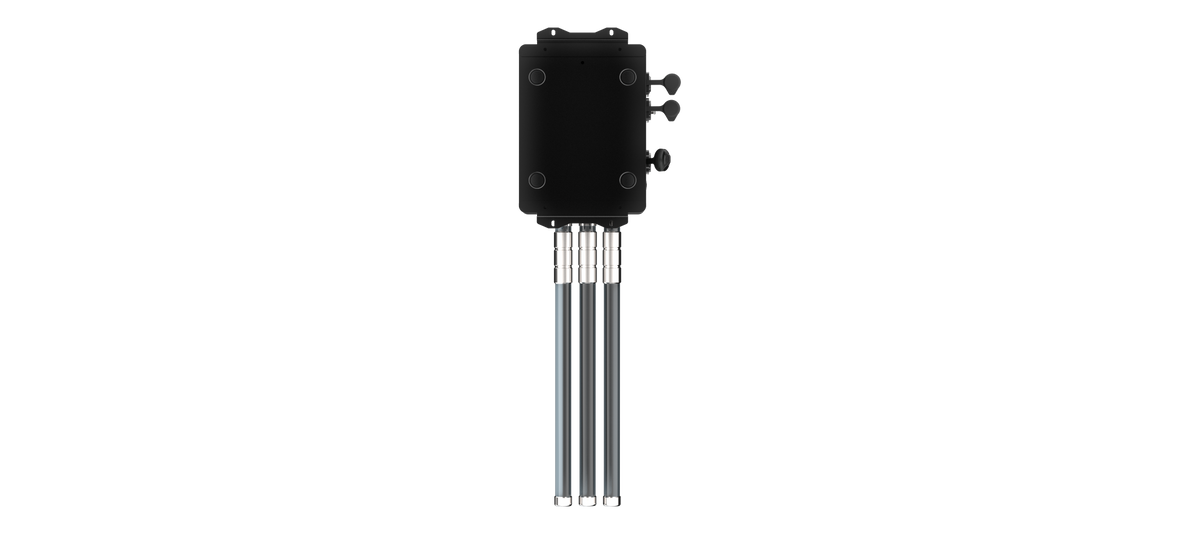

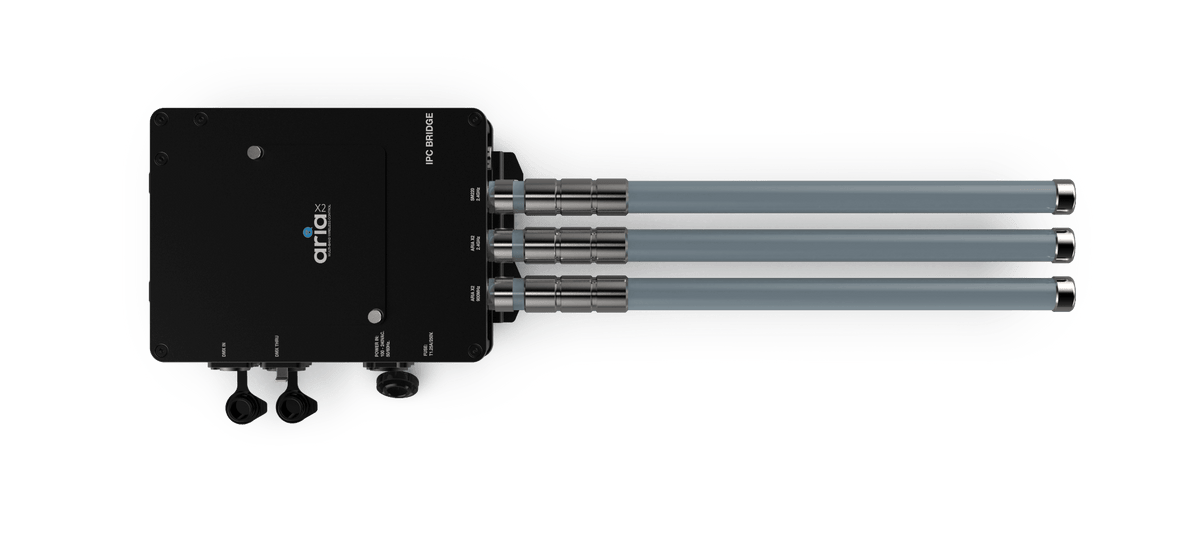

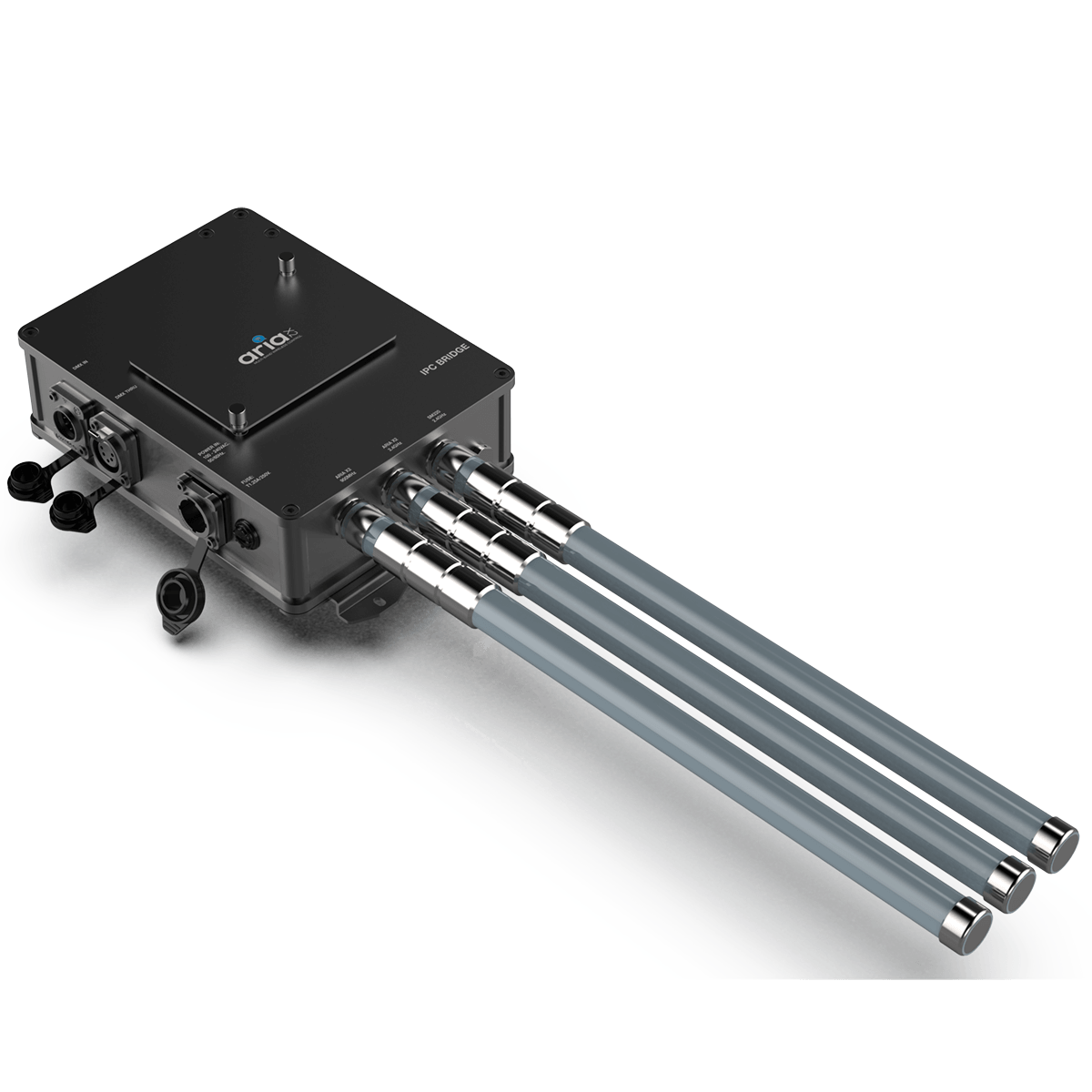

AX2152 - Aria X2 IPC Bridge - Wireless Bridge, IP65

Overview
The Elation Aria X2 IPC Bridge is a single-universe outdoor bridge that connects Aria X2 serial protocol with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria systems.

Best for
Outdoor installs that mix Aria X2 with other wireless DMX systems.

Highlights

• IP65 housing with front panel display
• Frequency agility across 2.4 GHz and 915 MHz (US) or 868/863 MHz (EU)
• Bluetooth Low Energy configuration
• Over-the-air firmware updates
• Wireless mesh with multi-hop DMX

Key Specs

• DMX: single universe, 5-pin XLR in/out
• Wireless: Aria X2 mesh, 802.15.4, Bluetooth 4.2
• Power: AC 100-240V, 2.2W
• Dimensions (L x W x H): 9.53 x 6.32 x 3.2 in.
• Weight: 3.7 lb (1.66 kg)
• Housing: IP65
