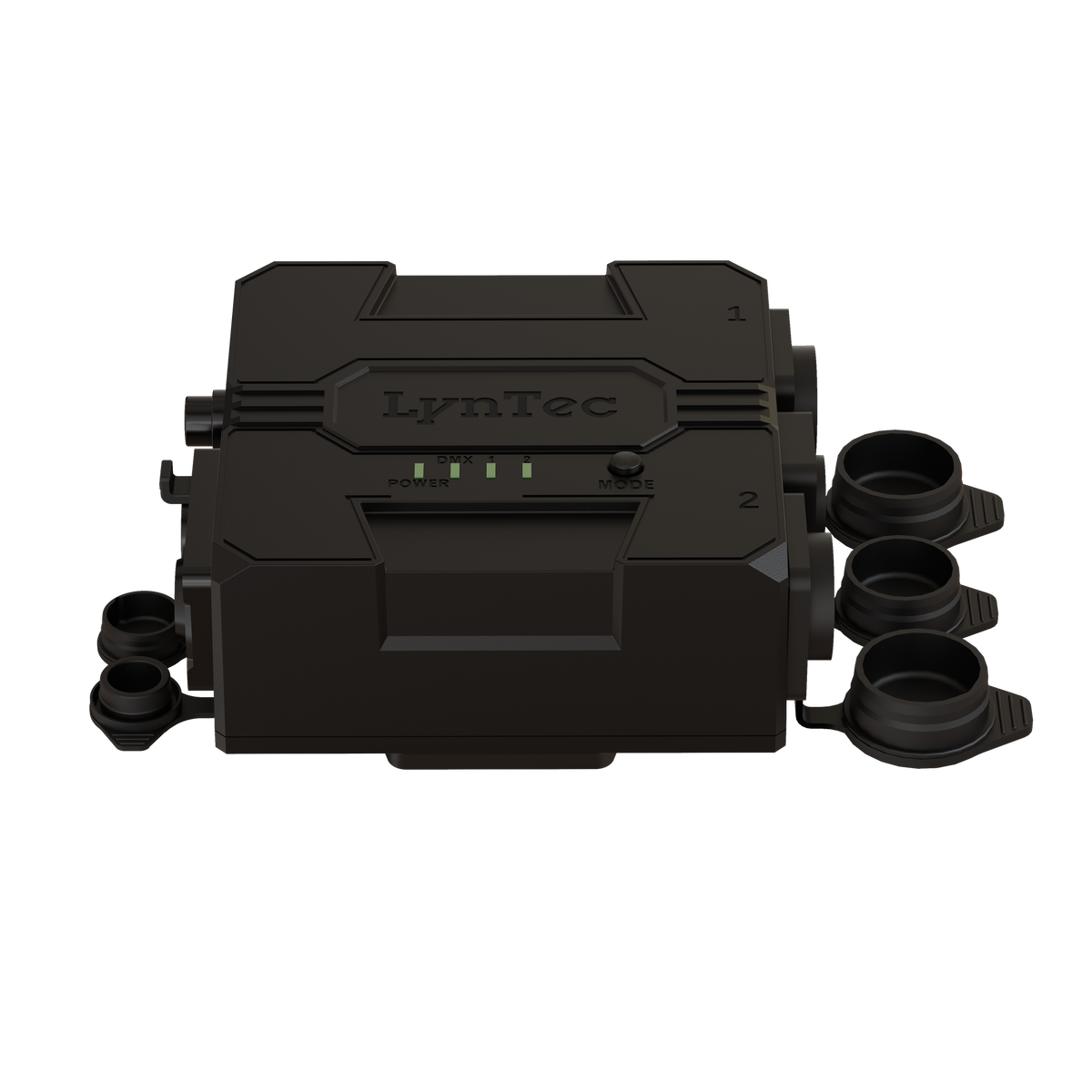

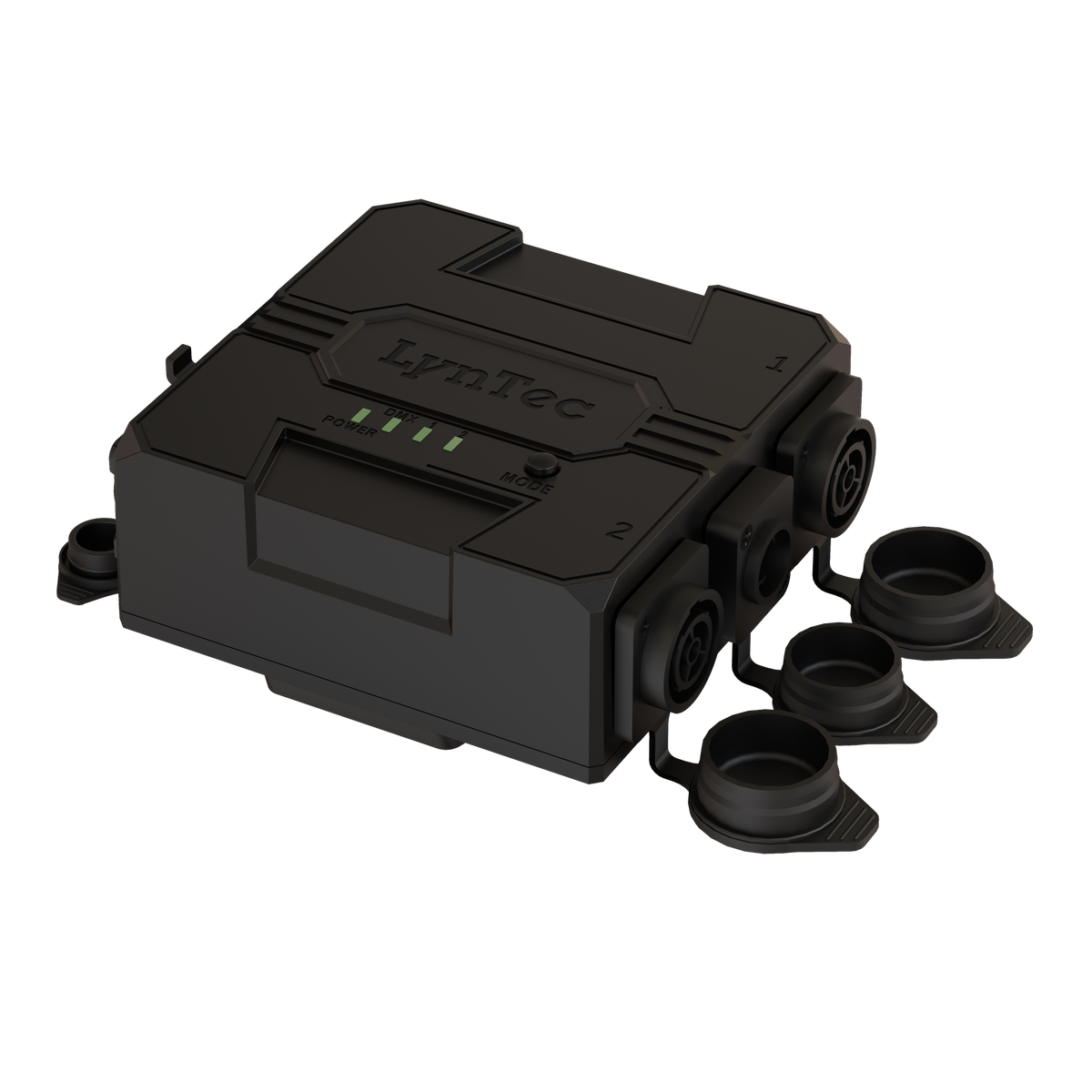

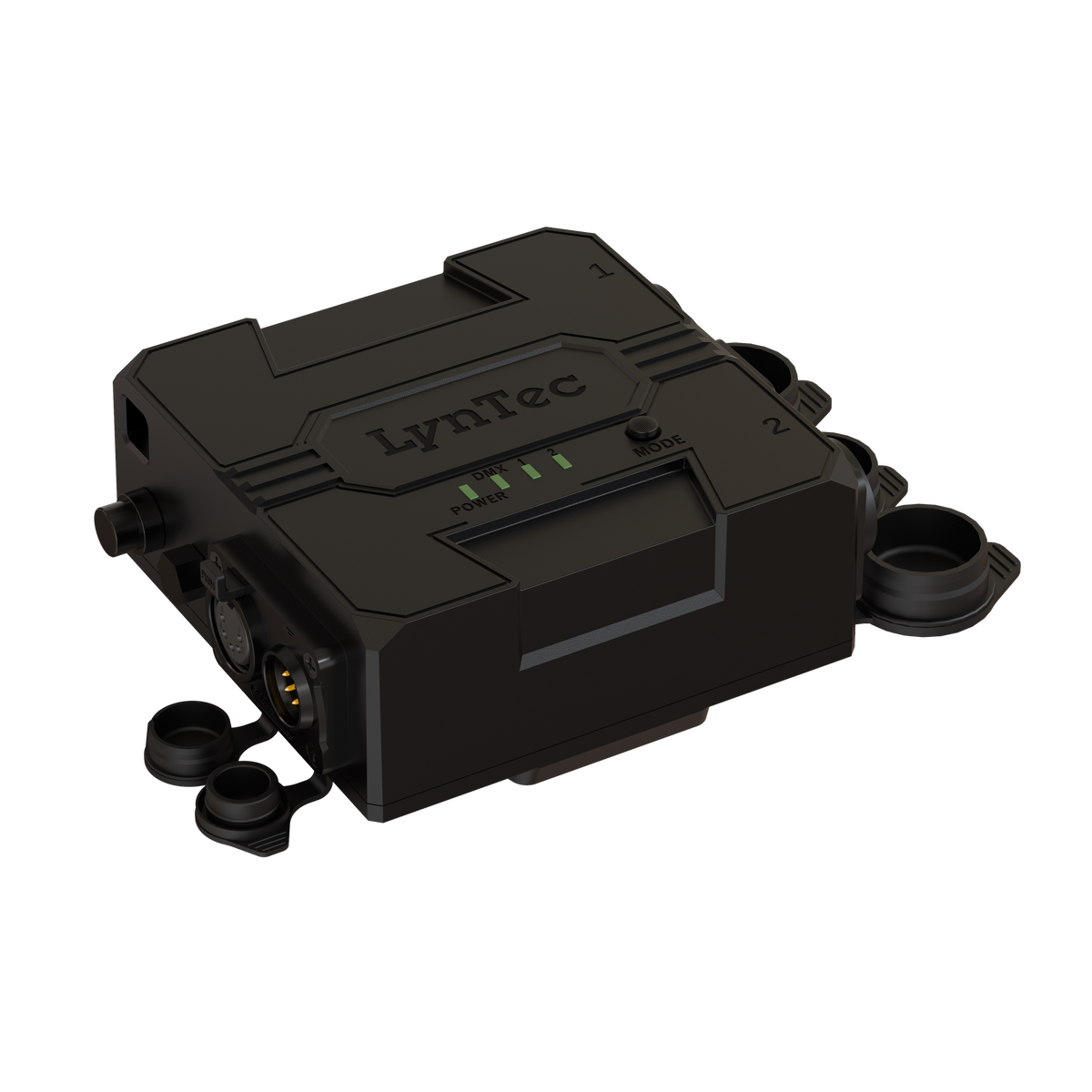

LynTec DMX Dual Relay

Overview
The LynTec DMX Dual Relay (DDR) is an IP65-rated portable power-control unit with one 20 A input feeding two independently switched outputs via DMX or RDM.

Best for
Switching fixtures, projectors and distributed loads remotely on portable, outdoor or truss-mounted rigs.

Highlights

• Two independently controlled mechanical relays
• DMX512A and RDM control
• IP65 rugged enclosure
• Mounts to truss or wall, stackable, M12 and M10 thread holes
• Convection cooling

Key Specs

• DMX channels: 2
• DMX connections: 5-pin XLR in/out
• Input: 100-240 VAC, 50/60 Hz, 20 A (16 A EU)
• Dimensions: 6 x 5 x 2.3 in (153 x 127 x 57 mm)
• Weight: 1.1 lb (0.5 kg)
• IP rating: IP65
