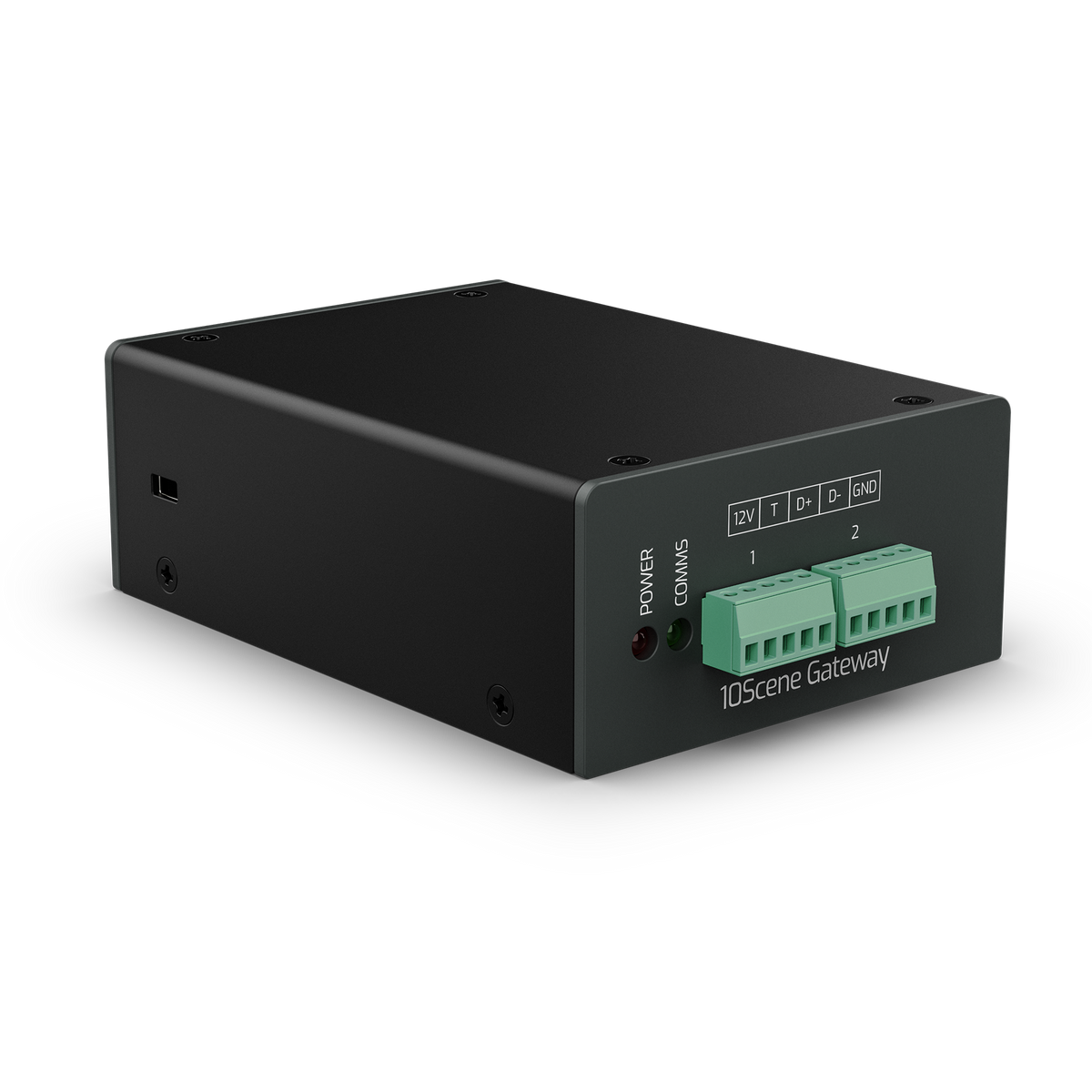

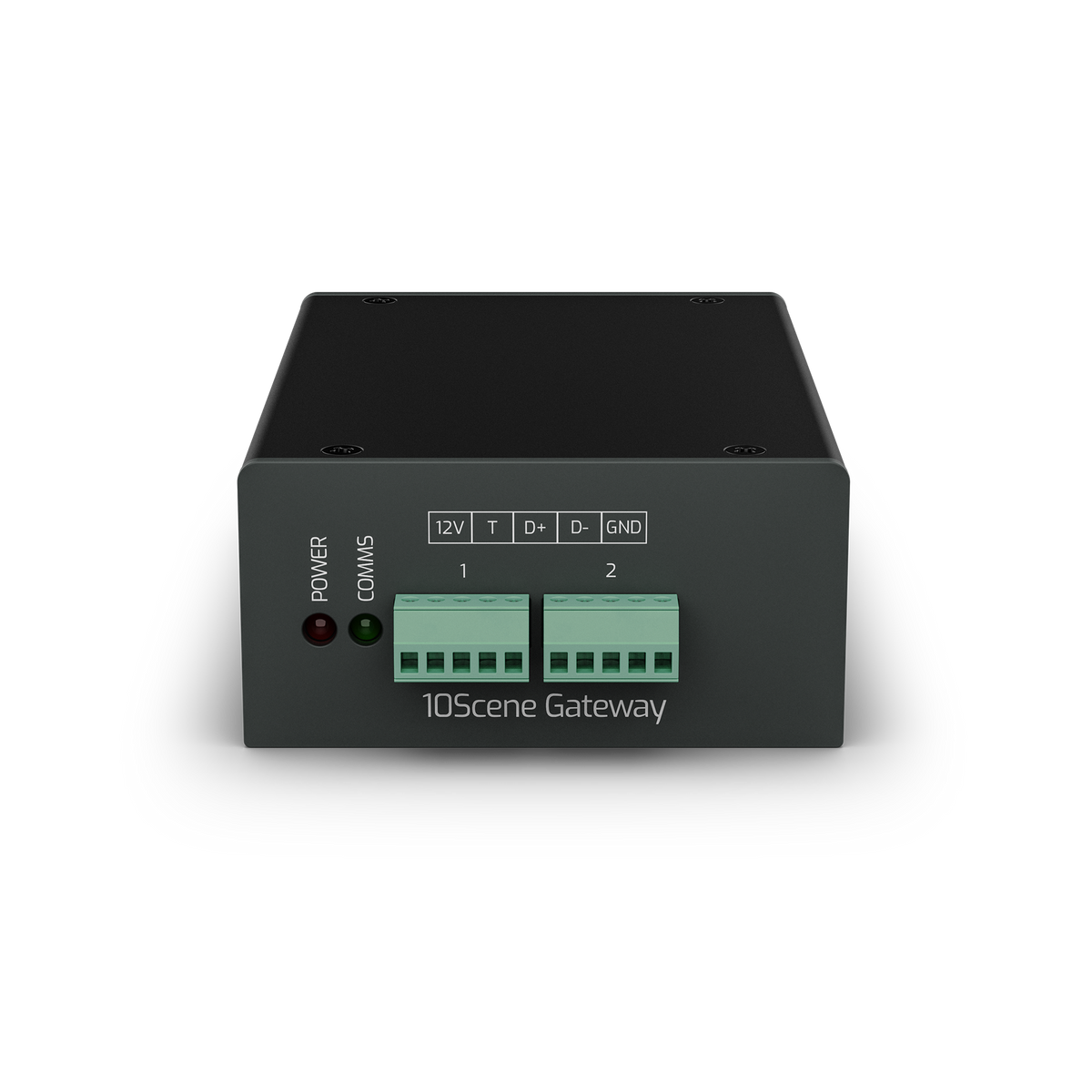

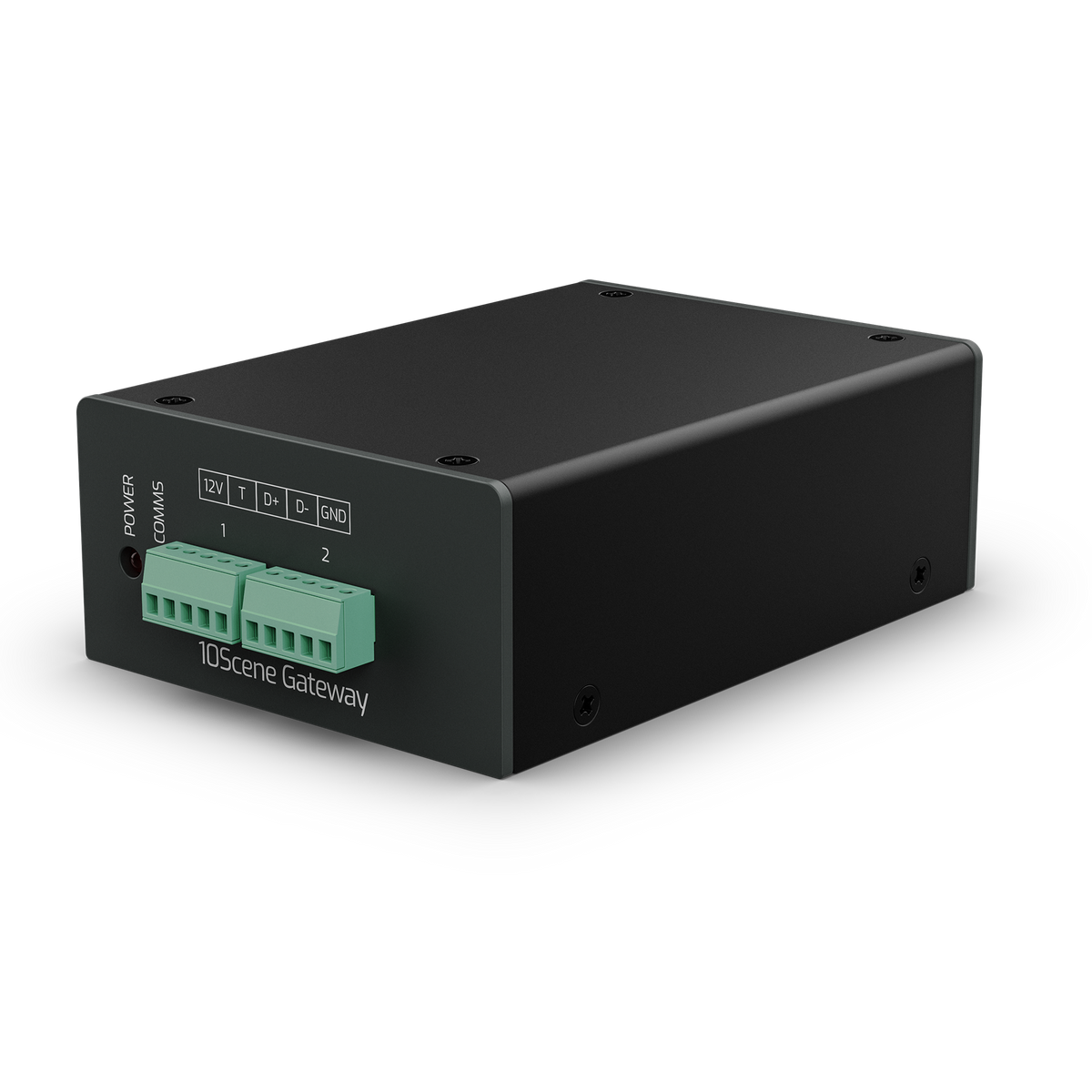

GeNetix 10Scene Gateway

Overview
The GeNetix 10Scene Gateway converts the 10Scene wall plate protocol into the ChamSys remote protocol over a network port, supporting up to 20 wall plates from two 10Scene ports plus 2 dry contact trigger inputs. It is DIN-rail mountable and accepts either a 12V supply or PoE.

Compatible with
GeNetix 10Scene wall plates and MagicQ/QuickQ systems over the network.

Highlights

• 2 10Scene ports supporting up to 20 wall plates total
• 1 network port for MagicQ/QuickQ connection
• 2 dry contact trigger inputs
• PoE support (802.3af/at/bt) or 12V external supply
• DIN-rail mountable enclosure

Key Specs

• Connectors: 2x 10Scene, 1x network, 2x contact input
• Power: 12V external or PoE (37-57V)
• Dimensions/Weight: 133 x 88 x 45mm, 0.175kg
