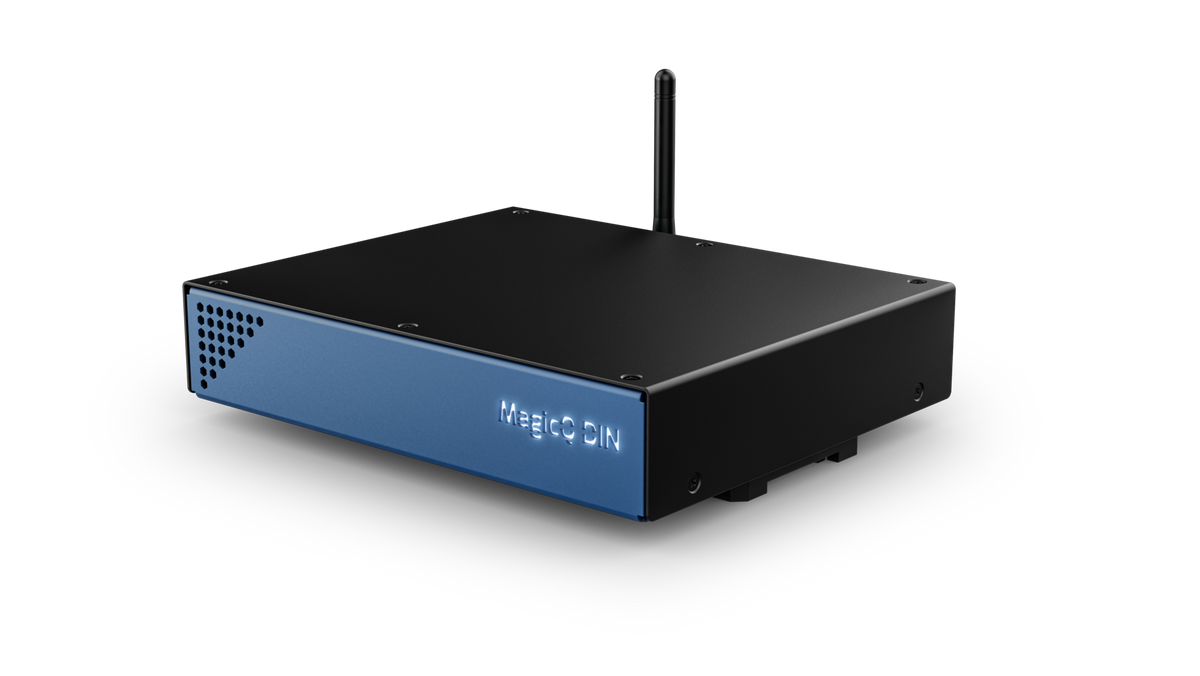

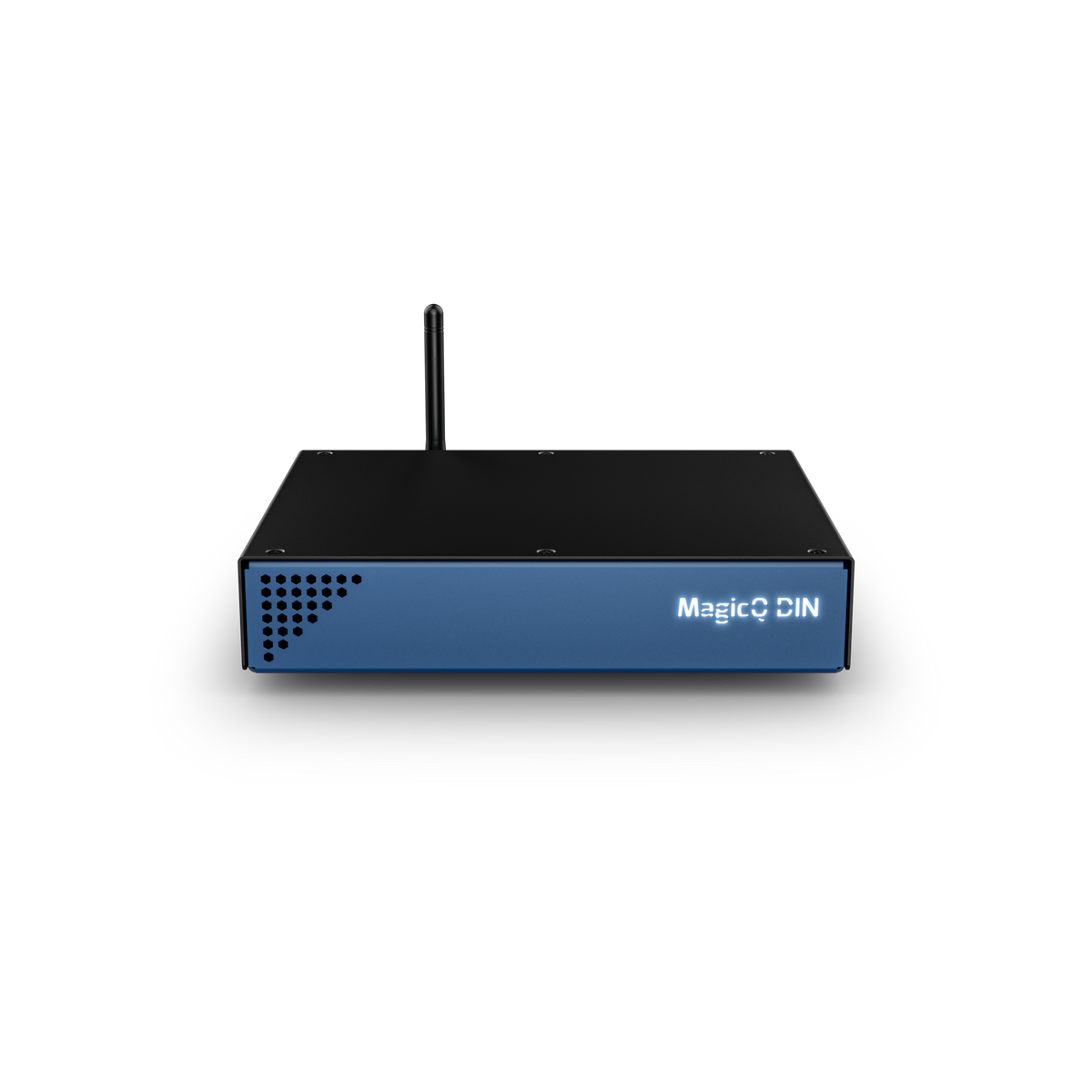

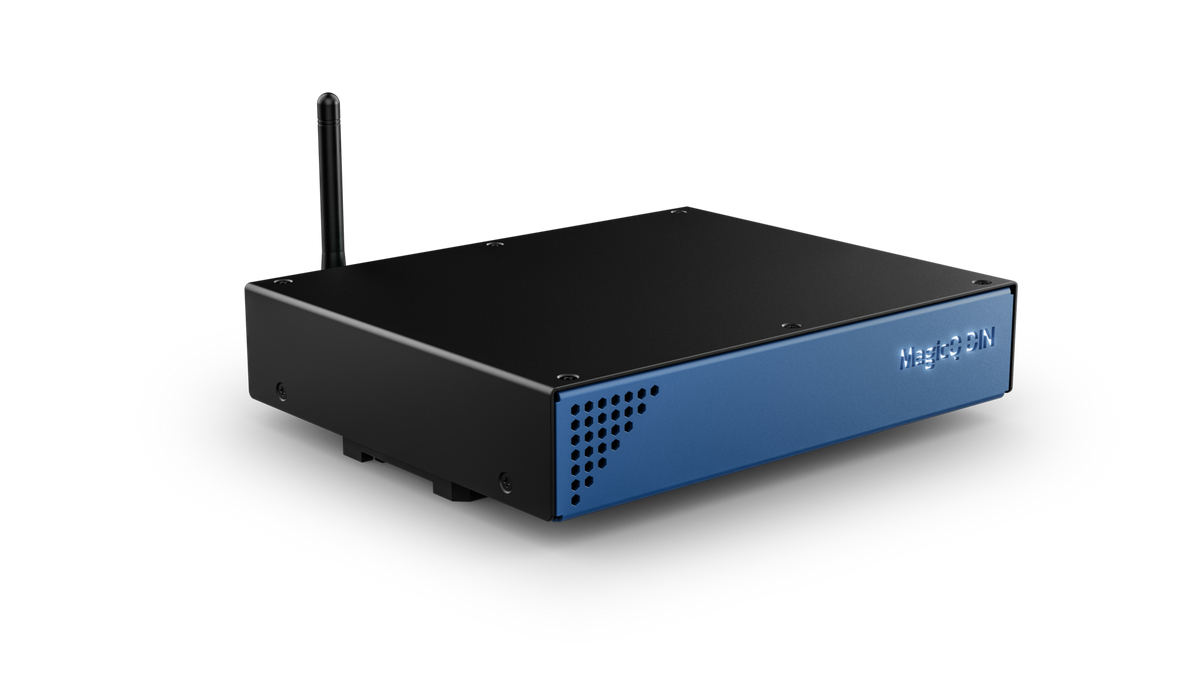

MagicQ DIN

Overview
MagicQ DIN puts the full MagicQ software engine into a DIN-rail mountable enclosure for cabinet installation, providing 24 universes (expandable to 48) with 50 media server layers of support. It is aimed at theatres, houses of worship and other venues needing powerful control without a console footprint.

Best for
Control-room and cabinet installations in theatres, houses of worship, and similar venues needing MagicQ's full feature set.

Highlights

• 24 universes, expandable to 48
• 2 RDM-enabled Phoenix screw-terminal DMX outputs
• Four 10Scene ports for GeNetix wall plates
• Built-in Wi-Fi, 1 network port, 2 USB ports
• Supports up to 50 media server layers

Key Specs

• Universes: 24, expandable to 48
• Channels: 12,288, expandable to 24,576
• Connectors: 2x DMX out (Phoenix screw), network port, 2x USB
• Power: 12V DC, 60W max
• Dimensions/Weight: 200 x 165 x 40mm, 0.65kg
