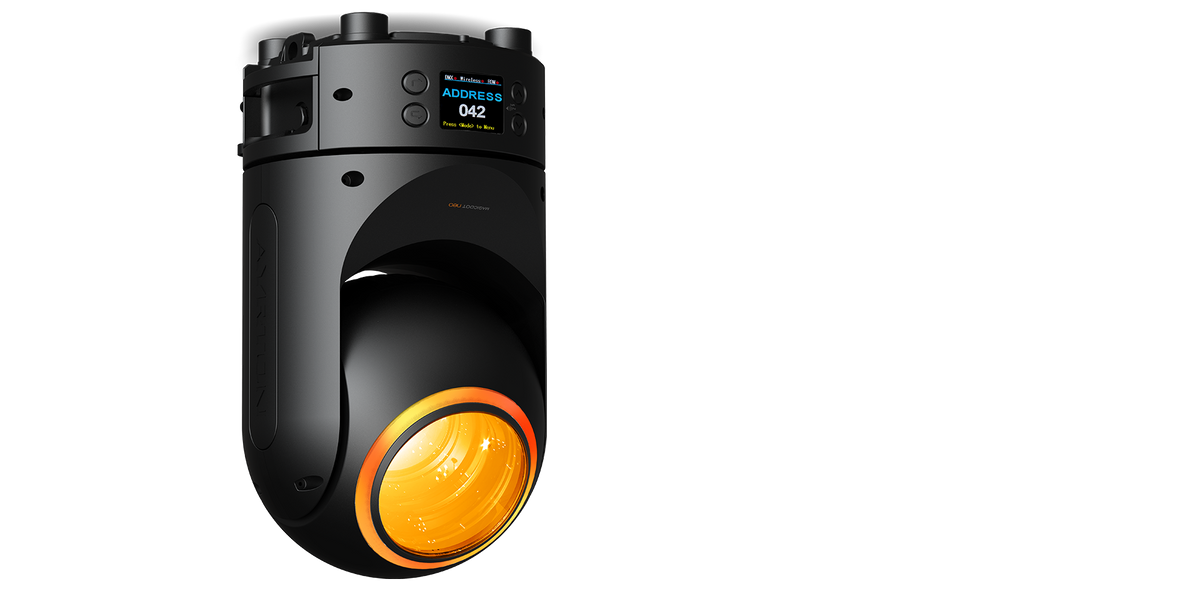

MagicDot Neo 120W RGBL LED, 3 to 30 degree (case insert not included)

Overview
MagicDot Neo is the latest evolution of Ayrton's MagicDot family: a very compact, lightweight and fast single-lens beam/wash with a 120 W RGB-L LED source and a 10:1 zoom. It is IP65 rated with continuous movement and liquid cooling. Case insert is sold separately.

Best for
Eye-candy arrays, TV sets and outdoor installations that need fast, small, weatherproof beam fixtures.

Highlights

• 120 W multi-chip RGB-L LED, 3,000 lm output, CRI up to 86
• 10:1 zoom from 3 to 30 degrees with 100 mm front lens
• 16,000 lux at 16 ft (5 m)
• Liquid cooling with variable-speed fans; flicker-free
• Integrated CRMX TiMo wireless receiver

Key Specs

• Part Number: AY015180
• LED source: 120 W RGB-L, L70 40,000 hours
• Output: 3,000 lm
• Zoom: 3 to 30 degrees (10:1)
• IP rating: IP65
• Power: 160 W maximum, 100-240 V, 50/60 Hz
• Connectors: IP65 XLR 5-pin DMX, IP65 RJ45, IP65 powerCON TRUE1 TOP
• Control: DMX-512, RDM, Art-Net, sACN, CRMX; 35 channels
• Dimensions (L x H x D): 7.8 x 13.9 x 7.8 in (197 x 353 x 197 mm)
• Weight: 14.6 lb (6.6 kg)
