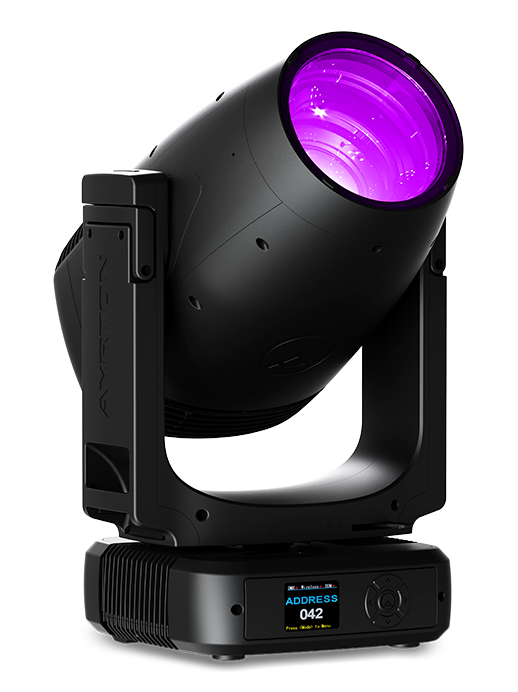

Rawbeam 350 IP65 550W Beam, 1.1 to 45 degree

Overview
Rawbeam 350 is a laser-source IP65 beam moving head in Ayrton's 3 Series. At 56 lb (25.4 kg) it is the lightest and best-equipped fixture in its category, with a 13-element 40:1 zoom, CMY mixing and a full graphics package, sealed for indoor, outdoor and saline environments.

Best for
Touring, festival and outdoor shows that need a weatherproof, long-throw beam with wide zoom and rich effects.

Highlights

• Speckle-free 6800 K laser source, over 1,340,000 lux at 10 m (narrow)
• 40:1 zoom: 1.1 to 18 degrees and 2.2 to 45 degrees, 160 mm front lens
• CMY mixing, variable CTO 3000-6800 K and 15-color fixed wheel
• 10 rotating and 25 fixed gobos, animation wheel, 2 x 3 rotating prisms, 2 frosts
• Infinite pan and tilt; integrated CRMX TiMo RDM wireless receiver
• IP68 self-adjusting fans with Super Silent mode

Key Specs

• Part Number: AY014350
• Light source: laser, 6800 K, CRI > 68, L70 up to 12,000 hours
• Zoom: 1.1 to 45 degrees (40:1)
• IP rating: IP65
• Power: 550 W typical (230 V), 660 W maximum, 100-240 V, 50/60 Hz
• Connectors: IP65 XLR 5-pin DMX in/out, IP65 RJ45 in/out, IP65 power in/out
• Control: DMX-512, RDM, Art-Net, sACN, CRMX; 43 channels
• Operating temperature: -4 to 113 F (-20 to 45 C)
• Dimensions (L x H x D): 13.3 x 23.3 x 11.7 in (339 x 592 x 297 mm)
• Weight: 56 lb (25.4 kg)
