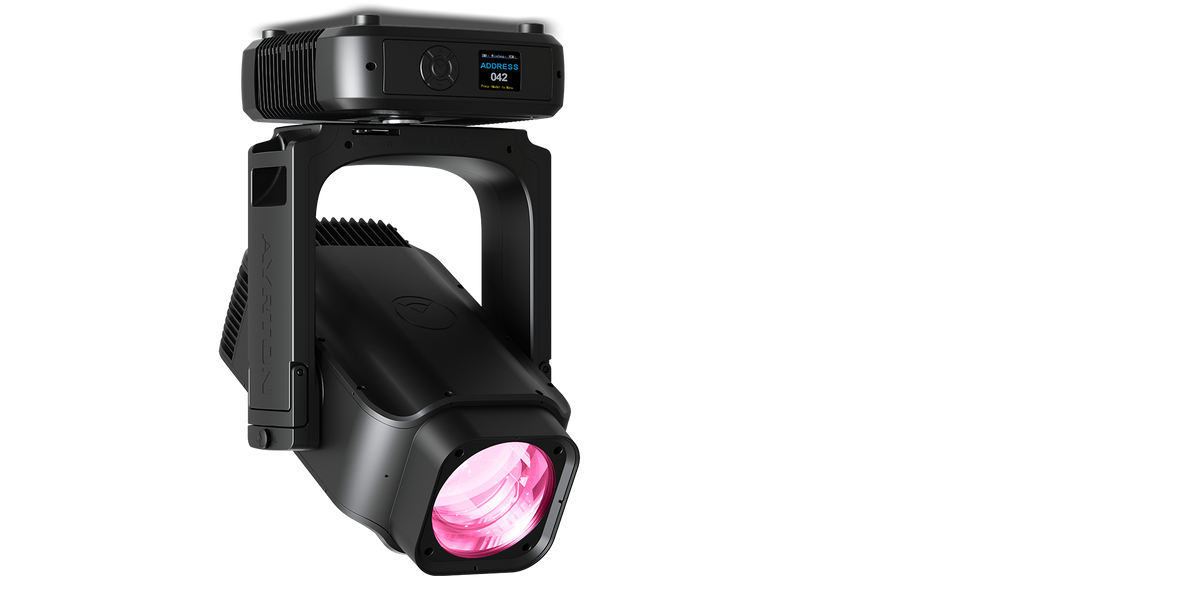

Cobra IP65 280W Beam, 0.6 to 23 degree

Overview
Cobra² is Ayrton's evolution of its Cobra laser-source beam luminaire, developed specifically for the United States market with US FDA CDRH laser product certification. It uses a speckle-free phosphor laser source with a 38:1 zoom and a large gobo package in an IP65 housing.

Best for
Large-venue, stadium and outdoor productions that need an extremely intense, weatherproof beam effect.

Highlights

• Speckle-free laser source delivering 1,544,000 lux at 33 ft (10 m)
• 38:1 zoom with 170 mm front lens and 13-element optics
• 92 metal gobos: 12 rotating plus 80 on a fixed wheel
• Two sets of 4 combinable rotating prisms
• CMY mixing plus 27-filter color wheel with progressive CTO
• Real-time position and beam-size sensors support safety exclusion zones; heating for sub-zero operation

Key Specs

• Part Number: AY014175
• Light source: phosphor laser, speckle-free
• Illuminance: 1,544,000 lux at 10 m
• Zoom: 0.9 to 23 degrees (38:1)
• IP rating: IP65
• Power: 480 W maximum
• Connectors: XLR 5-pin DMX, RJ45 Art-Net, powerCON TRUE1 TOP
• Control: DMX-512, RDM, Art-Net, sACN; 35-45 channels (3 modes)
• Dimensions (L x H x D): 14.2 x 26.5 x 12.6 in (360 x 674 x 319 mm)
• Weight: 67.7 lb (30.7 kg)
