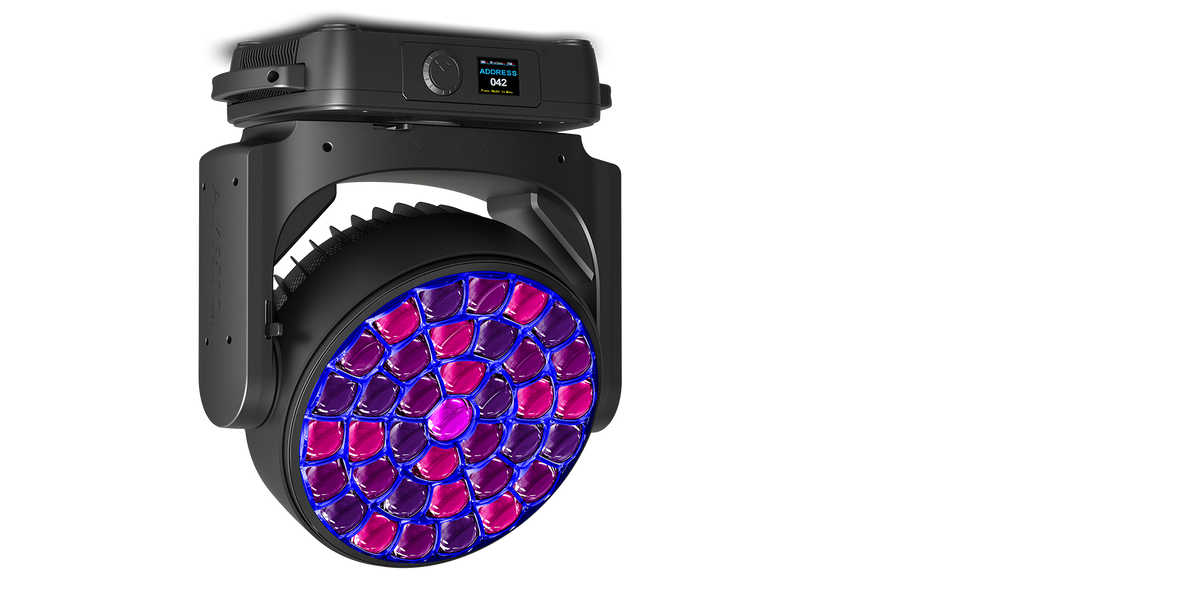

Zonda 9 FX IP20 LED Wash

Overview
Zonda 9 FX is a large multi-source LED wash from Ayrton's 9 Series. Thirty-seven 40 W RGBW LEDs behind a 384 mm lens cluster give a 14:1 zoom with individual LED control for pixel graphics and volumetric effects.

Best for
Arena and concert rigs that want a big pixel-effect wash.

Highlights

• 37 x 40 W RGBW high-power LEDs, 25,000 lm total, CRI up to 86
• 14:1 zoom from 4 to 56 degrees
• 384 mm front lens cluster of 37 truncated 50 mm lenses
• Individual pixel control for graphics and 3D volumetric effects

Key Specs

• Part Number: AY013750
• LED source: 37 x 1,000 lm RGBW
• Output: 25,000 lm
• Zoom: 4 to 56 degrees (14:1)
• IP rating: IP20
• Power: 1,400 W maximum, 120-240 V, 50/60 Hz
• Connectors: XLR 5-pin DMX, etherCON RJ45, powerCON TRUE1
• Control: DMX-512, RDM, Art-Net, sACN; 26-199 channels (3 modes)
• Dimensions (L x H x D): 20.9 x 24.6 x 11 in (530 x 625 x 280 mm)
• Weight: 64.4 lb (29.2 kg)
