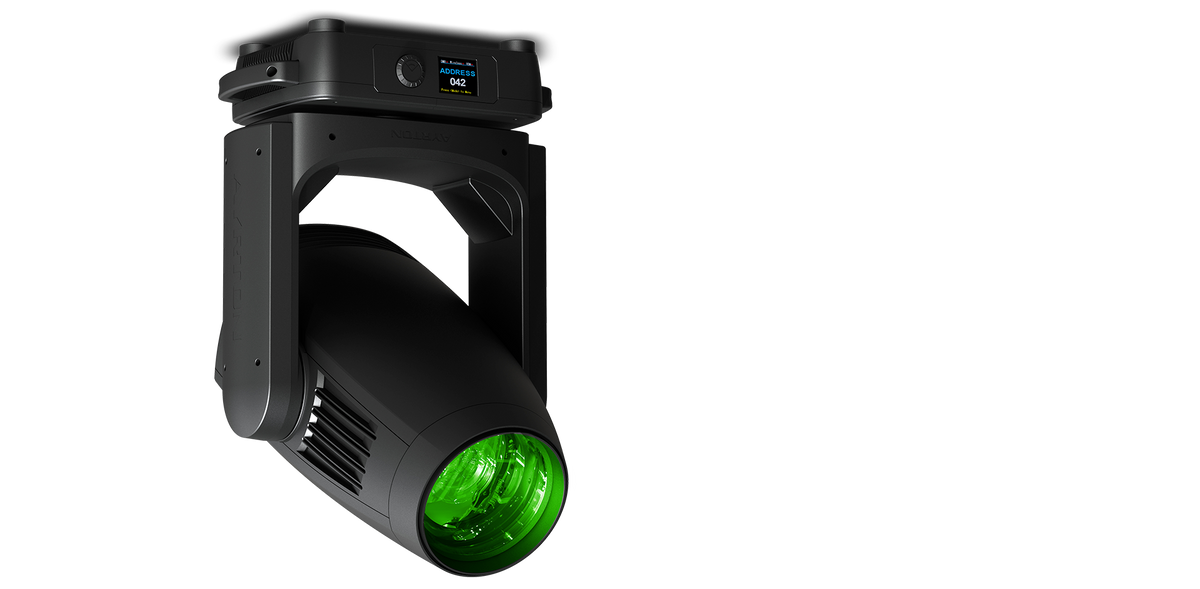

Eurus-S 650W LED Profile, 4.5 to 50 degree

Overview
Eurus S is the standard-CRI version of Ayrton's Eurus Profile, the first multi-function profile in the SLIM-21 program with 33% less volume than its class. A 650 W LED feeds a proprietary 13-lens 11:1 zoom with framing shutters, dual gobo wheels and CMY mixing.

Best for
Touring and arena rigs that need a slim, bright framing profile.

Highlights

• 650 W LED, 36,000 lm output at 6700 K, CRI >70
• 11:1 zoom from 4.5 to 50 degrees with 170 mm front lens
• 7 rotating and 11 fixed HD glass gobos
• 2 combinable prisms (5-facet circular, 4-facet linear)
• CMY, variable CTO, 7-position wheel and 2 CRI filters
• 4-blade framing and 15-blade iris; integrated CRMX TiMo

Key Specs

• Part Number: AY011540
• Light source: 650 W LED, CRI >70, L70 40,000 hours
• Output: 36,000 lm
• Zoom: 4.5 to 50 degrees
• IP rating: IP20
• Power: 1,000 W maximum, 100-240 V, 50/60 Hz
• Connectors: XLR 5-pin DMX in/out, etherCON RJ45, powerCON TRUE1
• Control: DMX-512, RDM, Art-Net, sACN, CRMX; 39-62 channels (3 modes)
• Dimensions (L x H x D): 17.5 x 29.3 x 10.7 in (445 x 743 x 273 mm)
• Weight: 72.5 lb (32.9 kg)
