AX2 - AX2 controller

Overview

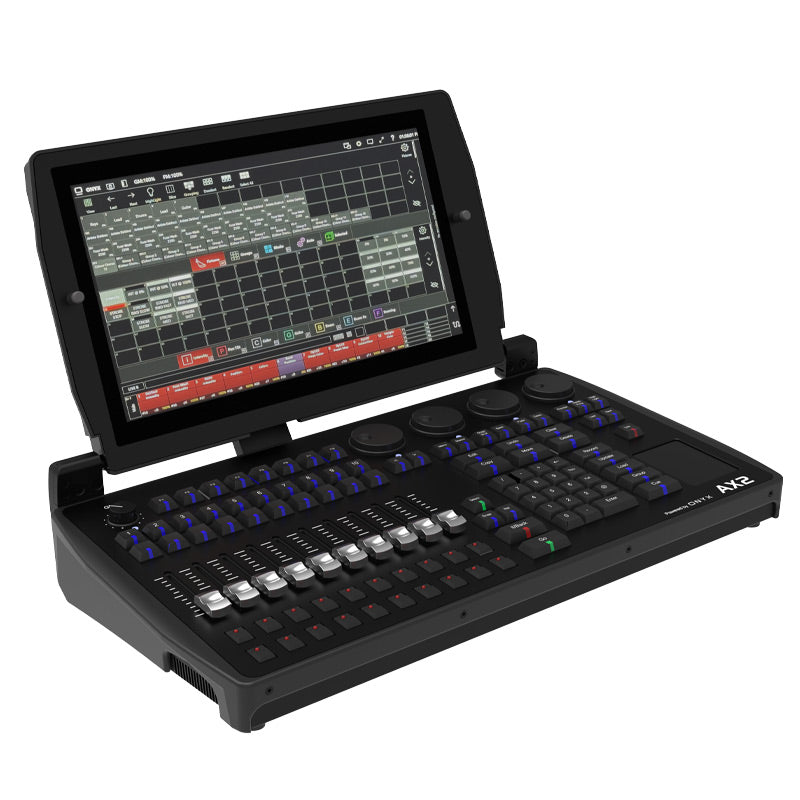

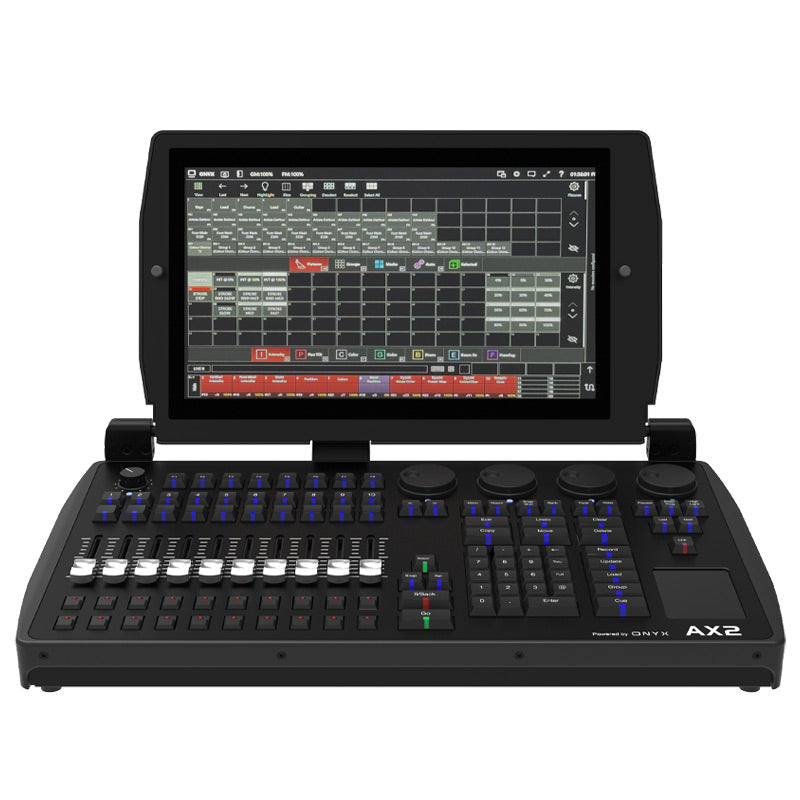

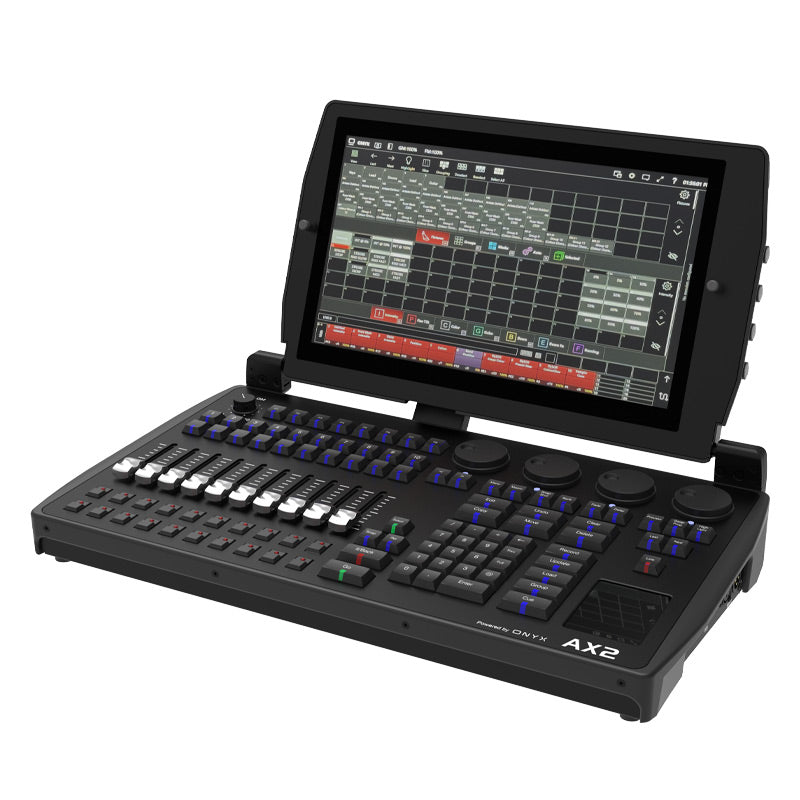

The ADJ AX2 is a compact, fully integrated lighting console running the Obsidian ONYX platform, with a 15.6-inch multi-touch display, 8 encoders and 10 playbacks. It processes 32 DMX universes and includes the DYLOS media engine with 5 zones of pixel control.

Best for
Concerts, touring, theatre, houses of worship and corporate events that need a full-featured console in a small footprint.

Highlights

• ONYX software with 32-universe processing built in
• 15.6 in Full HD multi-touch screen plus 3.5 in RGB mini touchscreen; supports two external 4K touch displays
• 10 playback faders with 4 buttons each and 8 encoders
• DYLOS Media Engine with 5 pixel-control zones
• Intel i5 hexa-core, 16 GB DDR4 RAM, 500 GB NVMe SSD, Windows 11 IoT Embedded

Key Specs

• DMX outputs: 4x 5-pin locking XLR
• Network: 2x Gigabit Ethernet
• Other I/O: MIDI in/out/thru, SMPTE in/out, 4x USB 3.0, 1x USB 2.0
• Power: 100-240V AC, 50/60 Hz via external 12V DC 11A supply (132 W max)
• Dimensions: 21.3 x 11.9 x 4.8 in (540 x 300 x 121 mm)
• Weight: 19.8 lb (9 kg)
• Package includes: RGB LED desk lamp, dust cover, USB cable, external PSU, power cable, USB recovery drive, manual
