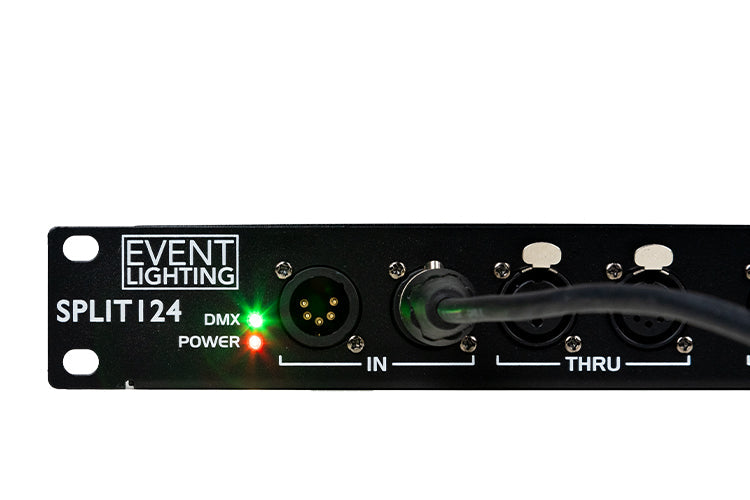

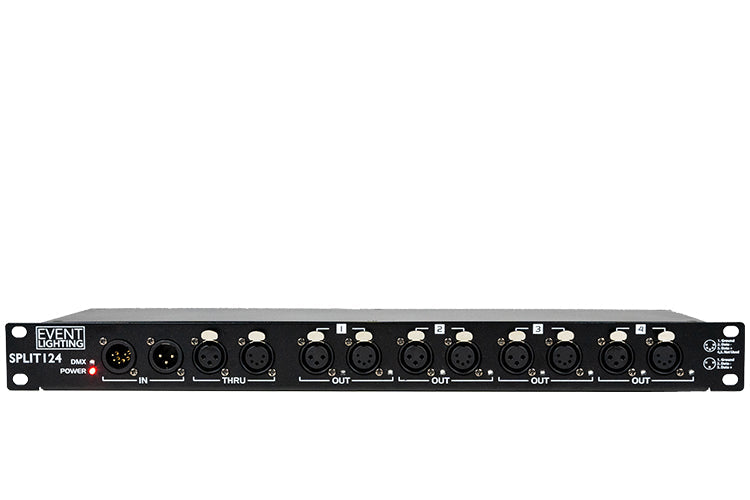

SPLIT124 - 4-Way DMX Splitter

Overview
DMX512 splitter for rack or truss mounting that distributes one input to four optically isolated outputs plus a through connection.

Best for
Splitting a DMX line to multiple fixture runs while protecting the controller from surges.

Highlights

• 4 optically isolated outputs plus 1 through
• Accepts 3-pin and 5-pin XLR
• Rack or truss mountable, 1U
• IEC mains input

Key Specs

• Part Number: SPLIT124
• Brand: Event Lighting
• Connectors: 1 input, 4 outputs, 1 through, 3-pin and 5-pin XLR
• Protocol: DMX512
• Power: 100-240V AC, 50/60 Hz, 5W, IEC input
• Dimensions: 19.0 x 5.2 x 1.8 in (483 x 131 x 45 mm)
• Weight: 5.7 lb (2.6 kg)
• Warranty: 3 years
