PIXBAR12H - Pixel Bar w/12 x 12W RGBWAU LEDs

Overview

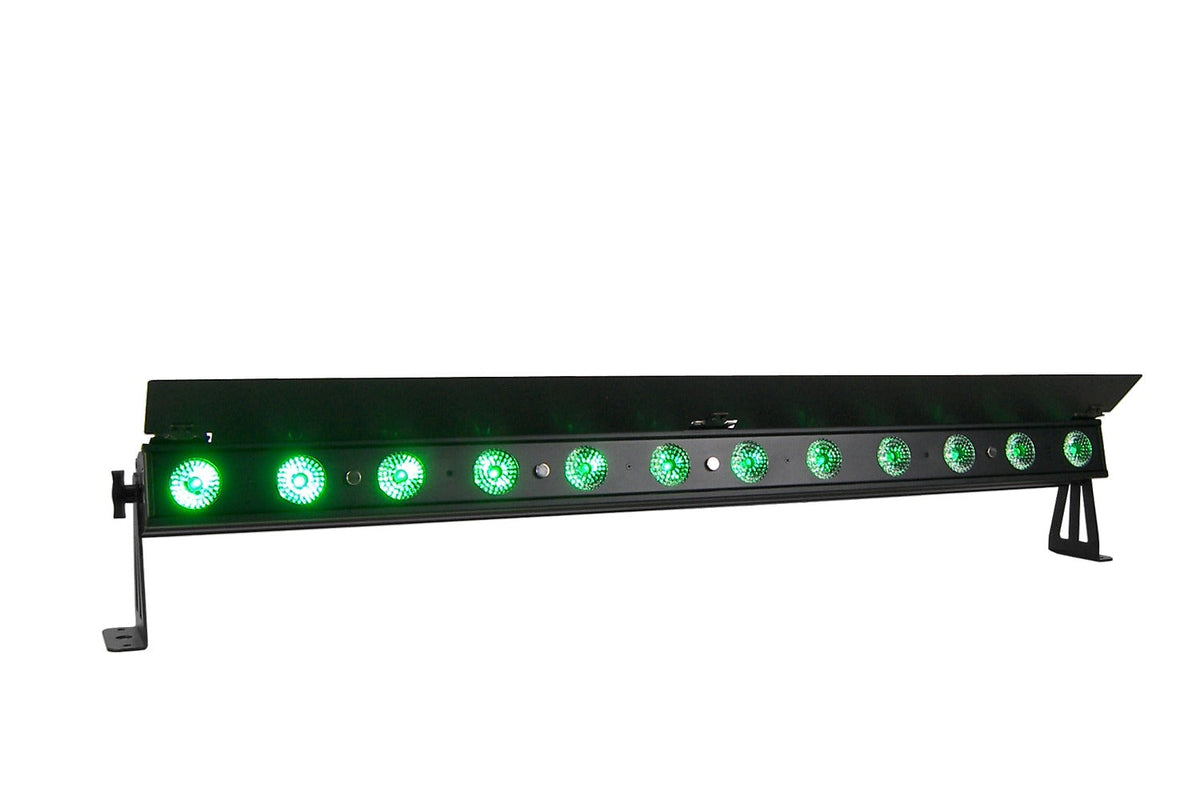

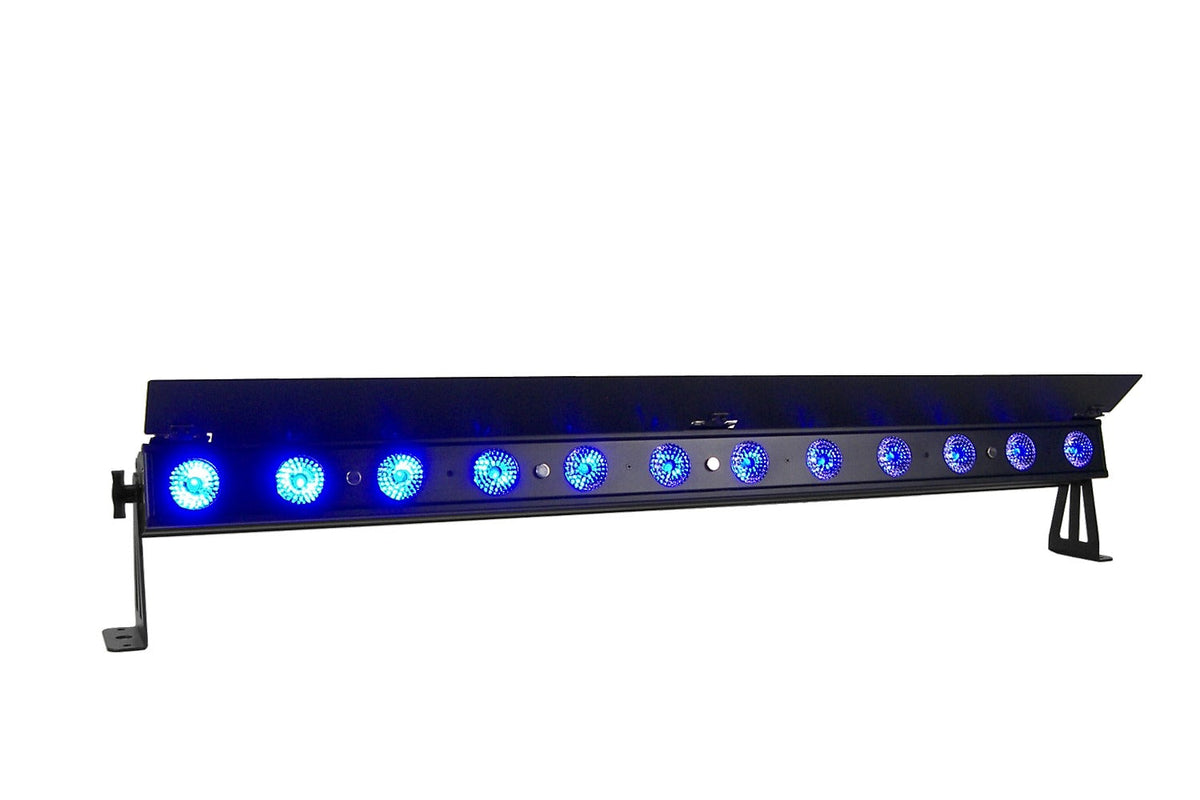

The PIXBAR12H is a 1 m pixel bar with twelve 12W RGBWAU LEDs and a 30 degree beam. It includes a barndoor and frost filter and is controlled over DMX with RDM.

Best for
Stage and architectural wash, bar and truss lighting, and pixel-mapped effects.

Highlights

• 12 x 12W RGBWAU LEDs, 50,000 hour LED life
• 30° beam angle (55° optional), 2,050 lux @ 2 m
• Pixel control with channel modes up to 74 channels
• 4 x 16-bit dimming curves, strobe 1-30 Hz
• Barndoor and frost filter included
• True1 power in/out, fanless aluminum housing

Key Specs

• Part Number: PIXBAR12H
• Light Source: 12 x 12W RGBWAU LEDs
• Beam Angle: 30°
• DMX Channels: 3 / 4 / 4A / 8 / 12 / 14 / 24 / 72 / 74
• Power Consumption: 150W
• Voltage: 100-240V AC, 50/60 Hz
• Dimensions: 41.3" x 6.5" x 3.1" (1050 x 165 x 80 mm)
• Weight: 9.9 lb (4.5 kg)
• Warranty: 3 years
