F-7X SMAZE - Touring Class Hybrid Fog & Haze w/Touch Screen & Electronic Power Supply

Overview

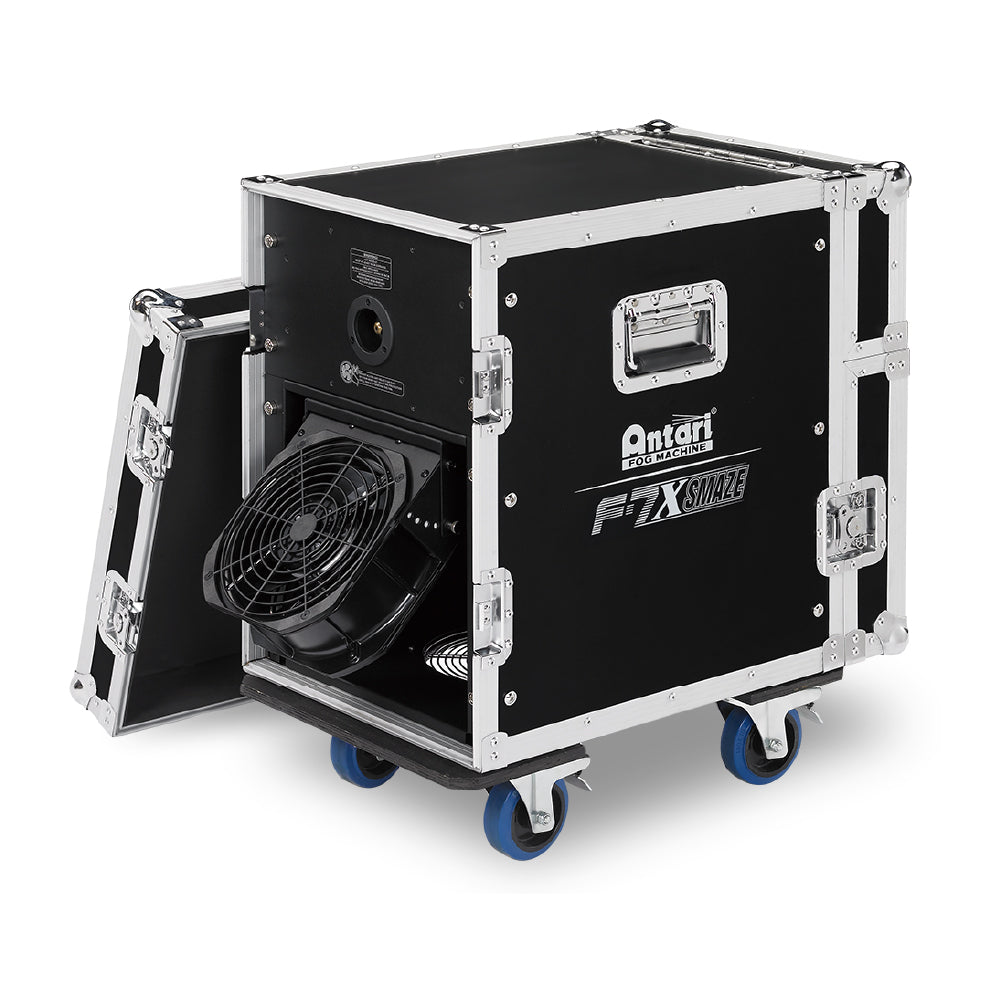

The Antari F-7X is a touring-class machine that works as both a fog machine and a hazer (Smaze). It has two 5 L tanks, a TFT-LCD touch screen and 3 DMX channels.

Best for
Touring productions, concerts and large venues that need fog and haze from one unit.

Highlights

• Fog and faze modes in one machine
• Two 5 L fluid tanks
• TFT-LCD touch screen
• Fluid detection, voltage protection and dual thermal cut-off
• DMX 512, manual and timer control; optional wireless and wireless DMX

Key Specs

• Part Number: F-7X SMAZE
• Rated power: 1400 W (100 V), 1600 W (120 V), 1900 W (240 V)
• Voltage: 100-120 V, 50/60 Hz (13.5 A) US; 220-240 V, 50/60 Hz (8.0 A) EU
• Warm-up time: approx. 7 minutes

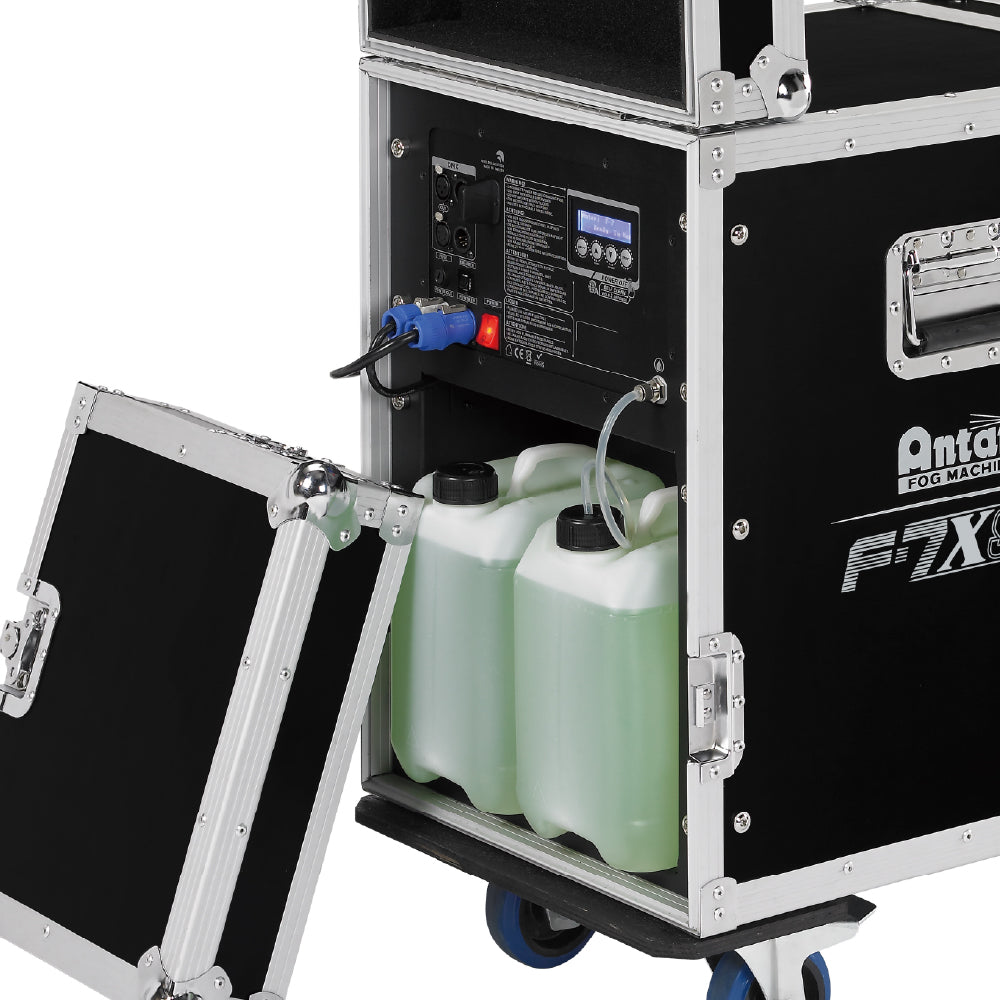

• Fluid tanks: 2 x 5 L (1.32 gal)
• Fluid consumption: 150 ml/min (fog mode), 28 ml/min (faze mode) at 100%
• Operating time: 2.8 hours at 100% (faze mode)
• Compatible fluids: Antari FLG-5E, FLH-5E, FLZ-5E
• DMX channels: 3
• Connections: Neutrik powerCON TRUE 1, 3-pin and 5-pin XLR DMX
• Dimensions: 28.66 x 16.85 x 28.31 in (728 x 428 x 719 mm)
• Weight: 116.85 lb (53.0 kg)
