zactrack MINI Master, incl. Power Supply

Overview

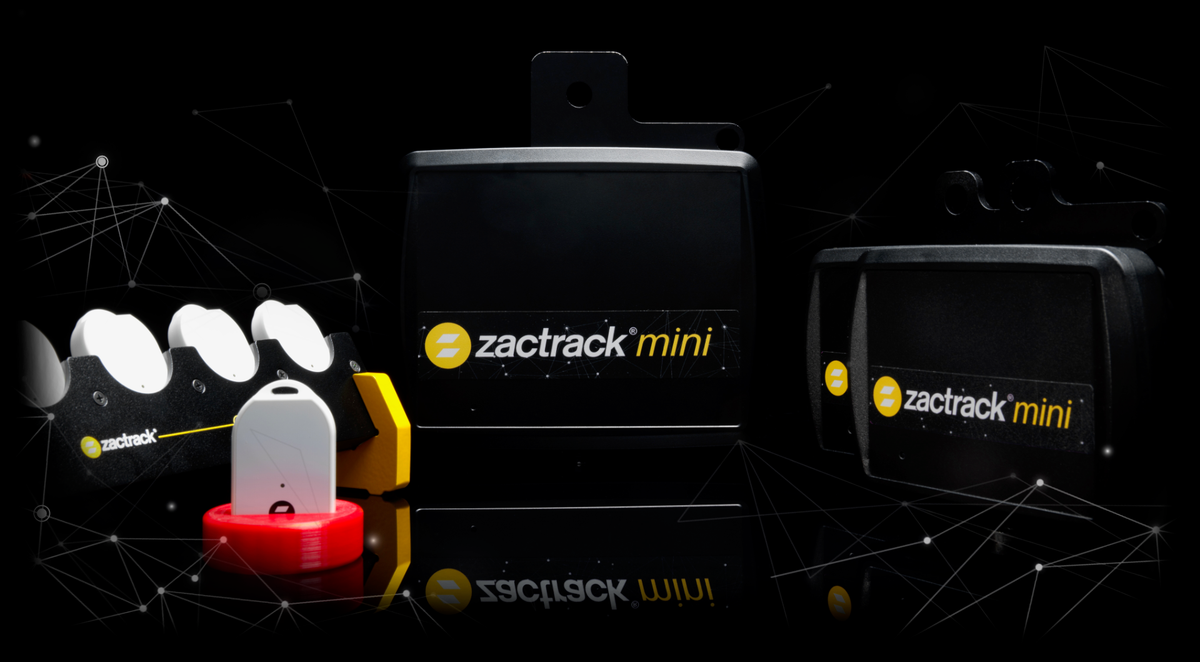

zactrack mini is the compact, briefcase-sized version of the zactrack automated tracking system, covering a performance space of about 15 x 15 m (50 x 50 ft) with six anchors. The mini Master Anchor is the heart of the system: it combines master anchor, tracking server, wireless access point and DMX node in one unit, and is supplied with a power supply.

Best for
The core unit of a zactrack mini system controlling up to 32 fixtures in small venues and corporate events.

Highlights

• Master anchor, server, wireless access point and DMX node in one housing
• Controls up to 32 fixtures
• Neutrik etherCON and 5-pin XLR outputs for network and DMX
• DMX, Art-Net, sACN, OSC, MSC and PSN output (system)
• Rig mounting plate for clamp and safety line
• Includes power supply

Key Specs

• Part Number: ZAC4028908
• System: zactrack mini
• Radio: 6.24-6.74 GHz UWB active radio antenna
• Max fixtures: 32
• Connectors: Neutrik etherCON RJ45, Neutrik 5-pin XLR, USB-C
• Battery life: 3 hours
• Charging time: 3 hours (100%)
• IP rating: IP50
• Dimensions: 7.5 x 8.1 x 1.4 in (190 x 207 x 36 mm)
• Weight: 1.5 lb (690 g)
