WMS2 - 2.6mm LED panel

Overview

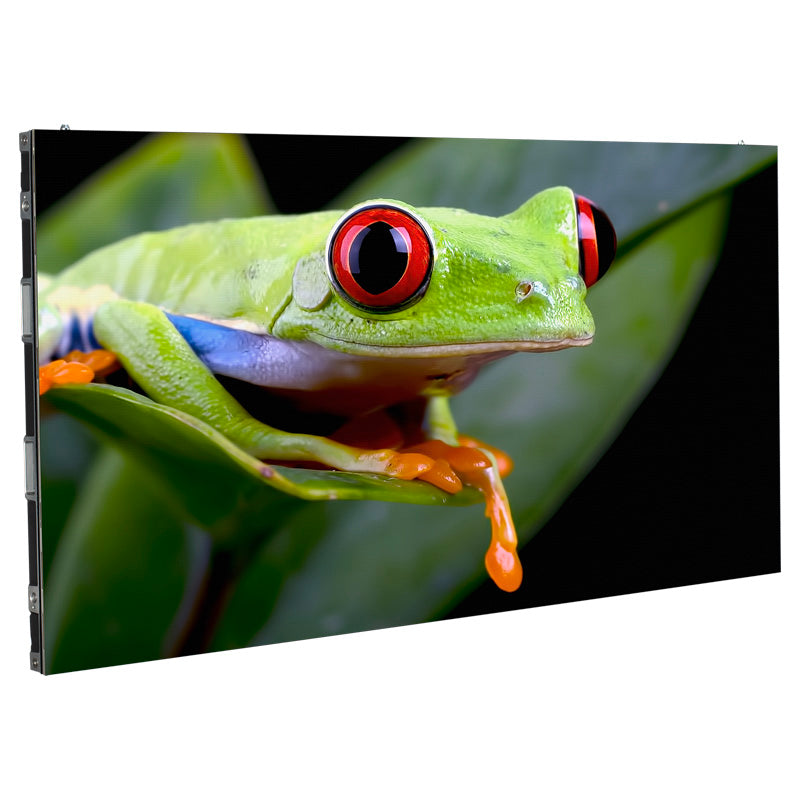

The ADJ WMS2 is a 2.6 mm pixel pitch indoor LED video panel measuring 39.3 x 19.6 in (1000 x 500 mm). It has a built-in Novastar A8s-N receiving card and a front-serviceable design, and can be wall mounted or hung in horizontal or vertical orientation.

Best for
Shop displays, museums, boardrooms, digital signage and entertainment venues.

Highlights

• 2.6 mm pixel pitch with 147,456 pixels per square meter
• 800 nits brightness and 3840 Hz refresh rate
• Built-in Novastar A8s-N receiving card

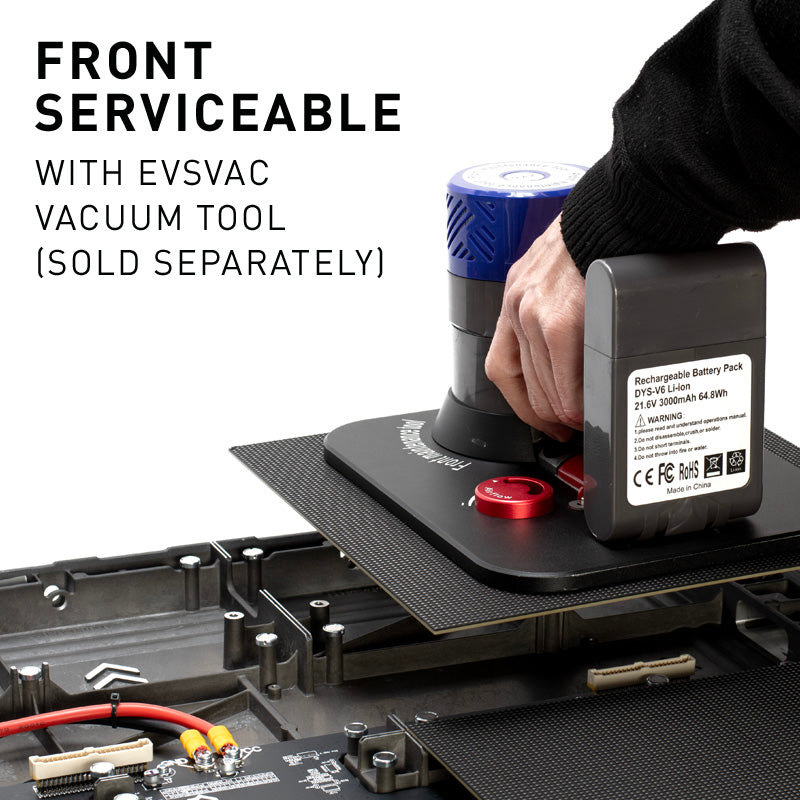

• Front-serviceable modules
• Horizontal or vertical orientation, wall mount or temporary hanging

Key Specs

• Pixel pitch: 2.6 mm (SMD1515)
• Panel resolution: 384 x 192 px (horizontal) or 192 x 384 px (vertical)

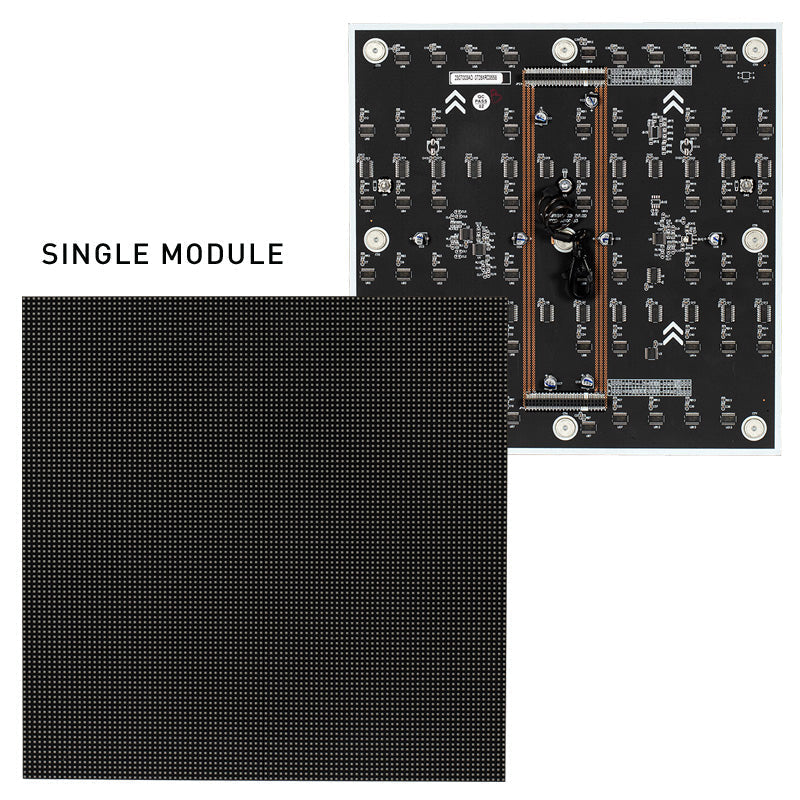

• Module: 250 x 250 mm, 96 x 96 px
• Brightness: 800 nits
• Viewing angle: 160° horizontal, 140° vertical
• Power: 100-240V AC; 350 W/m² max, 140 W/m² average
• IP rating: IP20 (indoor)
• Cabinet size: 39.3 x 19.6 in (1000 x 500 mm), 1.3 in (33 mm) thick
• Weight: 21 lb (9.5 kg)
• Certifications: ETL, CE
