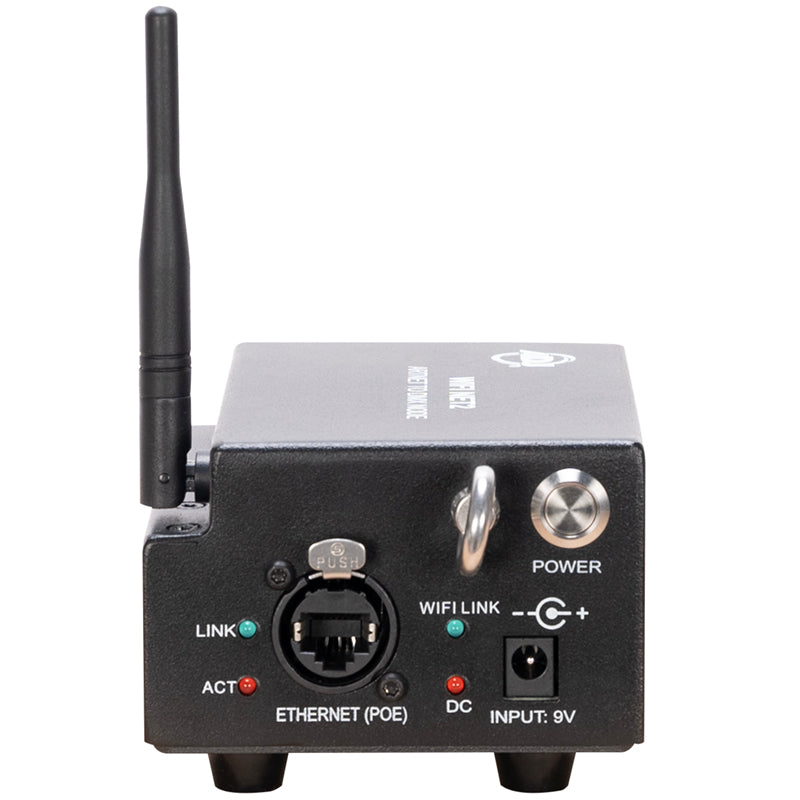

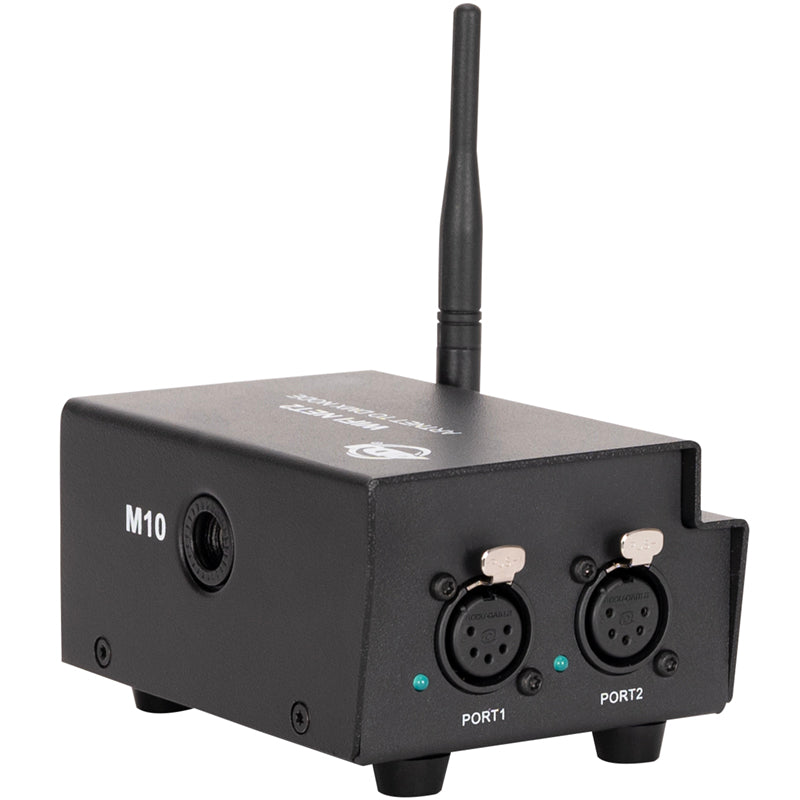

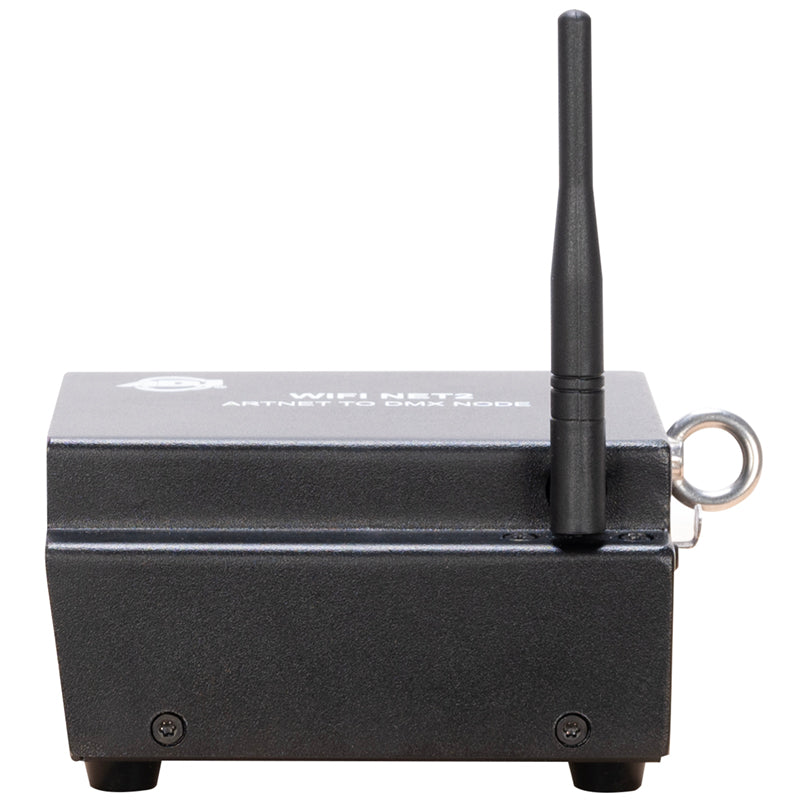

WIFI NET 2 - Wireless node

Overview
The ADJ WiFi NET 2 is an Art-Net and sACN to DMX node with a wired RJ45 network input, 2.4G WiFi and two DMX outputs. It converts network lighting data from computers, tablets or DMX consoles into DMX512 and is set up through a web browser.

Best for
Sending Art-Net or sACN from a laptop, tablet or console to DMX fixtures in small to mid-size rigs, installs and mobile setups.

Highlights

• Decodes Art-Net and sACN and outputs DMX512 on two 5-pin XLR ports
• RDM support
• Unicast or broadcast, with DHCP or fixed IP addressing
• Powered by the included 9VDC supply or by PoE (802.3af)
• Browser-based configuration from Windows or macOS
• M10 rigging thread and safety eyelet

Key Specs

• Protocols: DMX512, RDM, Art-Net, sACN
• Wireless: 2.4G WiFi
• Outputs: 2 x 5-pin XLR DMX
• Network input: 1 x RJ45 (indoor)
• Power: 9VDC or PoE (802.3af), 2W consumption
• IP rating: IP20
• Operating temperature: -4°F to 104°F (-20°C to 40°C)
• Dimensions: 3.48 x 5.06 x 2.46 in (88.5 x 128.55 x 62.5 mm)
• Weight: 1.23 lb (0.56 kg)
• Included: 9V power supply
