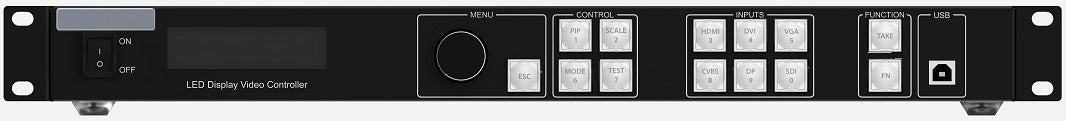

VX4S-N - Video controller

Overview
The NovaStar VX4s-N is an LED display controller and front-end video processor compatible with ADJ LED video panels. It accepts a wide range of signal formats up to 1920 x 1200 @ 60Hz and drives up to 2.6 million pixels.

Best for
Front-end processing and control for ADJ LED video screens.

Highlights

• Accepts DP, HDMI, VGA, DVI, CVBS and 3G-SDI sources
• Four RJ45 outputs for up to 2.6 million pixels
• Point-by-point correction technology
• LAN port for IP-based control
• Rack-mountable aluminum enclosure

Key Specs

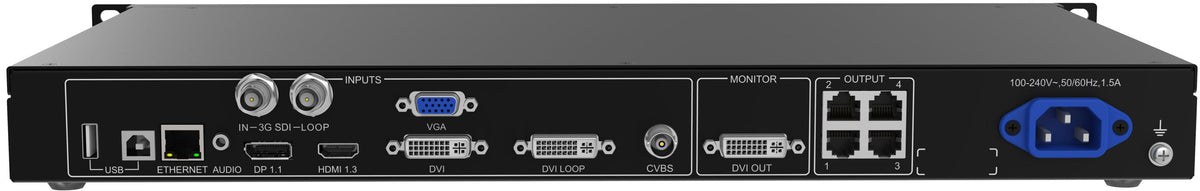

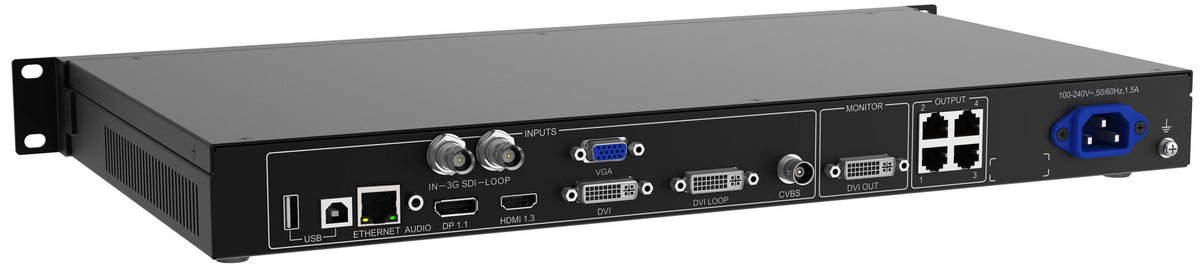

• Video inputs: DP, HDMI, VGA, DVI (in + loop), CVBS, 3G-SDI (in + loop)
• Max input resolution: 1920 x 1200 @ 60Hz
• LED outputs: 4x RJ45 (up to 2.6 million pixels)
• Monitor output: DVI
• Other I/O: 1x RJ45 LAN, 2x USB Type A, 2x USB Type B, 1x 3.5 mm audio input
• Power: AC 100-240V, 50/60Hz, 0.65A, 16W max; locking IEC input
• Dimensions (L x W x H): 19.0 x 10.8 x 1.8 in
• Weight: 5.6 lb (2.55 kg)
• Package includes: DP, VGA, USB, HDMI, DVI, CAT5 and power cables
