VS5 7X4 - 28 pcs VS5 video system

Overview
Vision Series LED video wall system with 28 ADJ VS5 5.95mm panels in a 7 x 4 configuration, supplied with a NovaStar VX400 processor, rigging bars, power and data cables.

Best for
Rental companies, event producers and venues needing a complete indoor LED wall package for longer viewing distances.

Highlights

• 28 VS5 5.95mm pixel pitch panels (500 x 500 mm each)
• NovaStar VX400 video processor included
• Seven VSRB1 rigging bars for flown installs
• Full set of panel power and data cables
• VSFC8 road cases sold separately

Key Specs

• Configuration: 7 x 4 (28 panels)

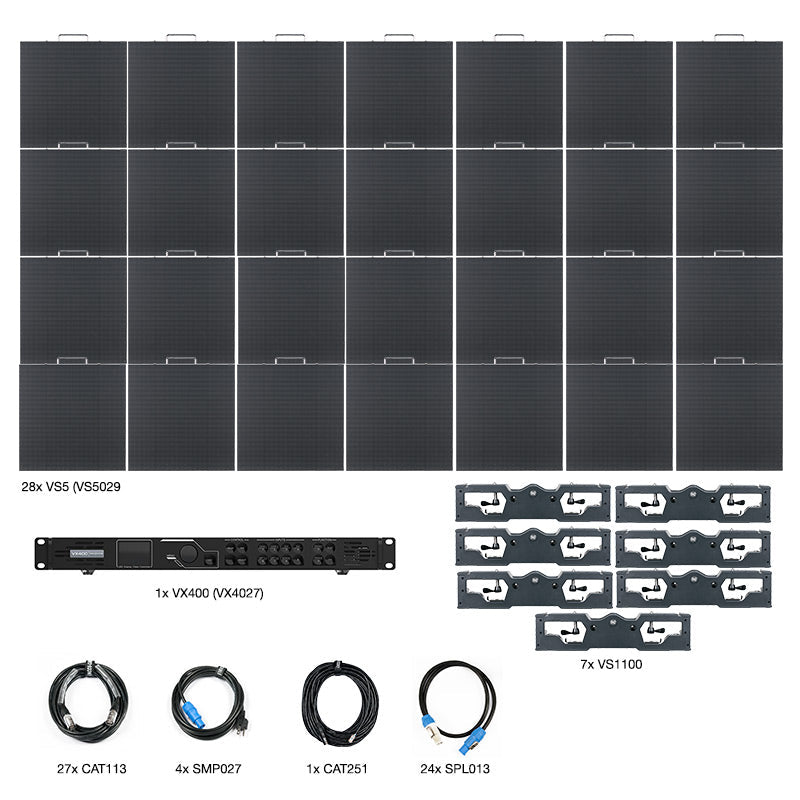

• Package includes: 28 x VS5 video panels, 1 x NovaStar VX400 video processor, 7 x VSRB1 rigging bars, 27 x 3 ft panel-to-panel data cables, 1 x 25 ft first data cable, 4 x 15 ft locking in/out main cables, 24 x 3 ft locking in/out power cables
• Panel pixel pitch: 5.95 mm
• Panel resolution: 84 x 84
• Panel brightness: 1000 nits
• Panel size: 19.68 x 19.68 in (500 x 500 mm)
• Panel power: 170W max, 68W average
• Panel IP rating: IP20
• Panel weight: 17 lb (7.7 kg)
