VS3IP - High resolution flat panel display

Overview

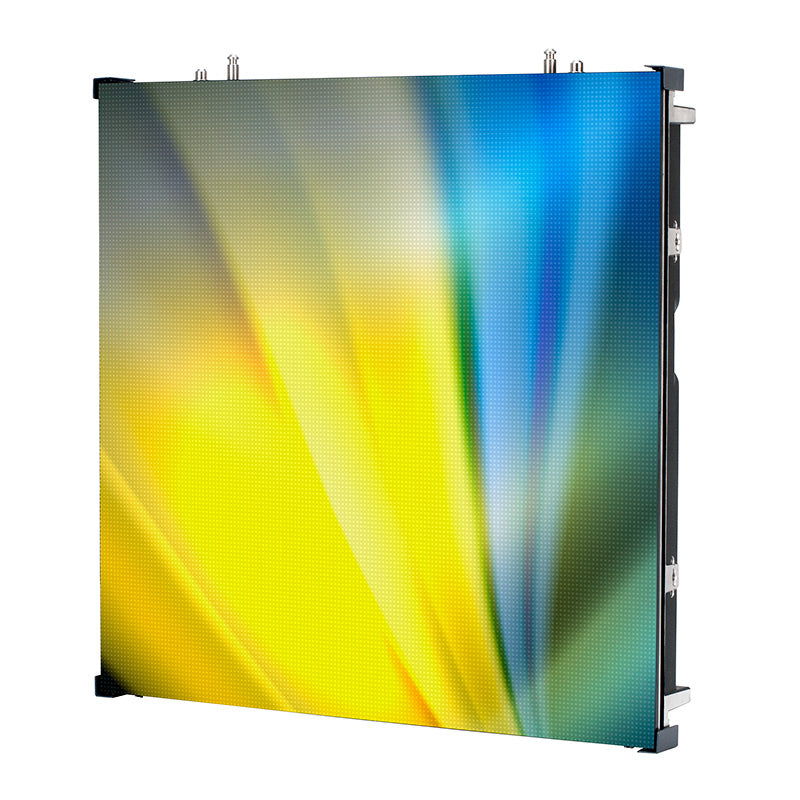

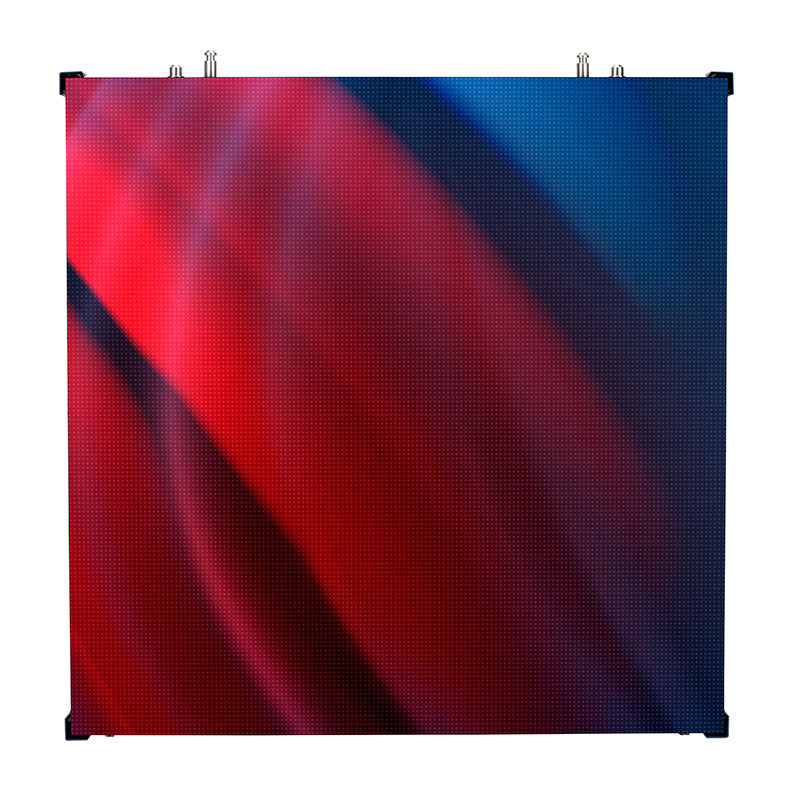

The ADJ VS3IP is a high-brightness Vision Series LED video panel rated IP65 front and IP54 rear for indoor or temporary outdoor use. It has a 3.84mm pixel pitch, 4500-nit output and a built-in NovaStar A5s receiving card.

Best for
Outdoor and indoor stages, festivals, events and installations that need a weather-resistant LED video wall.

Highlights

• 3.84mm pixel pitch with 3-in-1 SMD1921 RGB LEDs
• 4500-nit brightness for high ambient light

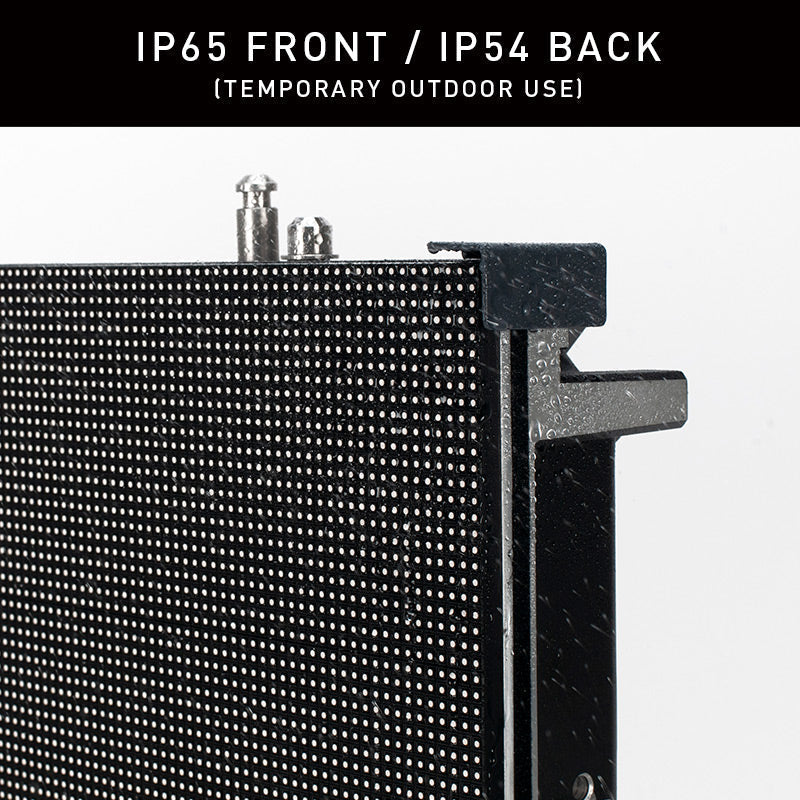

• IP65 front / IP54 rear with IP65 locking power and data connections
• Memory On Module (MOM) technology and built-in NovaStar A5s receiving card
• Four rear-serviceable mini modules per panel
• 3840Hz refresh rate with 14-bit processing

Key Specs

• Pixel pitch: 3.84mm (0.15")
• Resolution: 150 x 150 pixels per panel (67,816 per m²)
• Brightness: 4500 nits
• Viewing angle: 160° horizontal / 140° vertical
• Power: 100-240V, 50-60Hz; 210W max / 84W average per panel
• IP rating: IP65 front / IP54 rear
• Dimensions: 22.7" x 22.7" x 3.0" (576 x 576 x 75mm)
• Weight: 19.84 lb (9 kg)
• Certifications: cETLus, CE, FCC
