VS3 7X4 - 28 pcs VS3 video system

Overview
Video wall package with 28 ADJ VS3 3.91mm LED video panels in a 7 wide by 4 high layout, plus a NovaStar VX400 video processor, VSRB1 rigging bars and data and power cabling. The VSFC8 road case is sold separately.

Best for
Rental companies, indoor stages, corporate events and houses of worship needing a ready-to-deploy LED video wall.

Highlights

• 28 VS3 panels with 3.91mm pixel pitch and 1000-nit brightness
• NovaStar VX400 video processor included
• 7 VSRB1 Vision Series rigging bars for flying the wall
• Panel-to-panel data cables and locking in/out power cables included
• Panels have built-in NovaStar A5s receiving cards and front/rear serviceable modules

Key Specs

• Configuration: 7 x 4 panels (28 total)
• Panel pixel pitch: 3.91mm (0.15")
• Panel brightness: 1000 nits
• Panel size: 19.68" x 19.68" x 2.74" (500 x 500 x 69.6mm)
• Panel weight: 17 lb (7.7 kg)
• Panel power: 170W max / 68W average
• IP rating: IP20 (indoor)

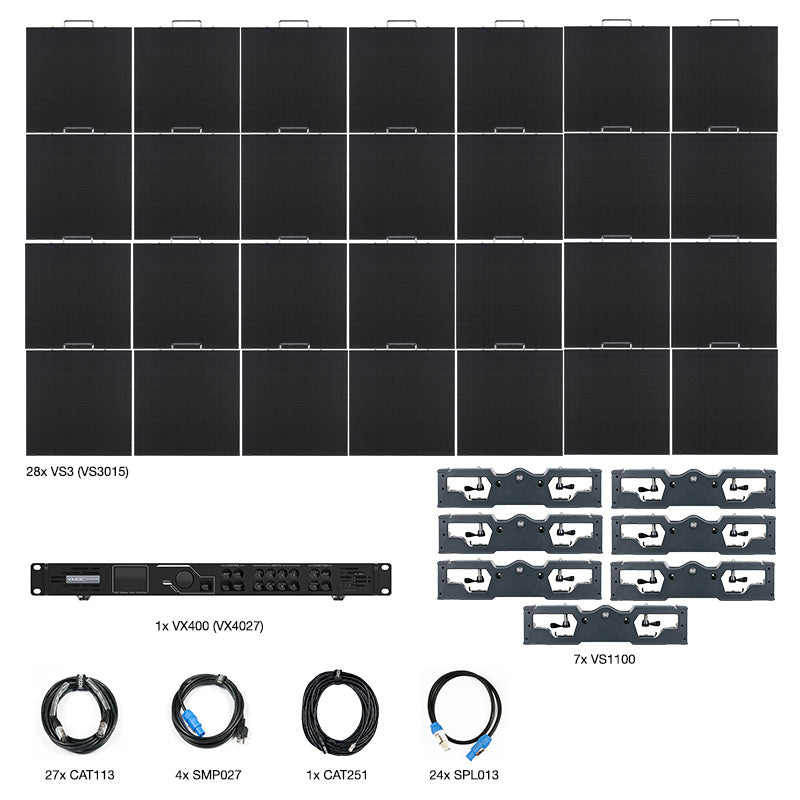

• Package includes: 28 x VS3 video panels, 1 x NovaStar VX400 video processor, 7 x VSRB1 rigging bars, 27 x 3 ft panel-to-panel data cables, 4 x 15 ft locking in/out main cables, 1 x 25 ft first data cable, 24 x 3 ft locking in/out power cables
