VS3 - 3.91mm flat panel display

Overview

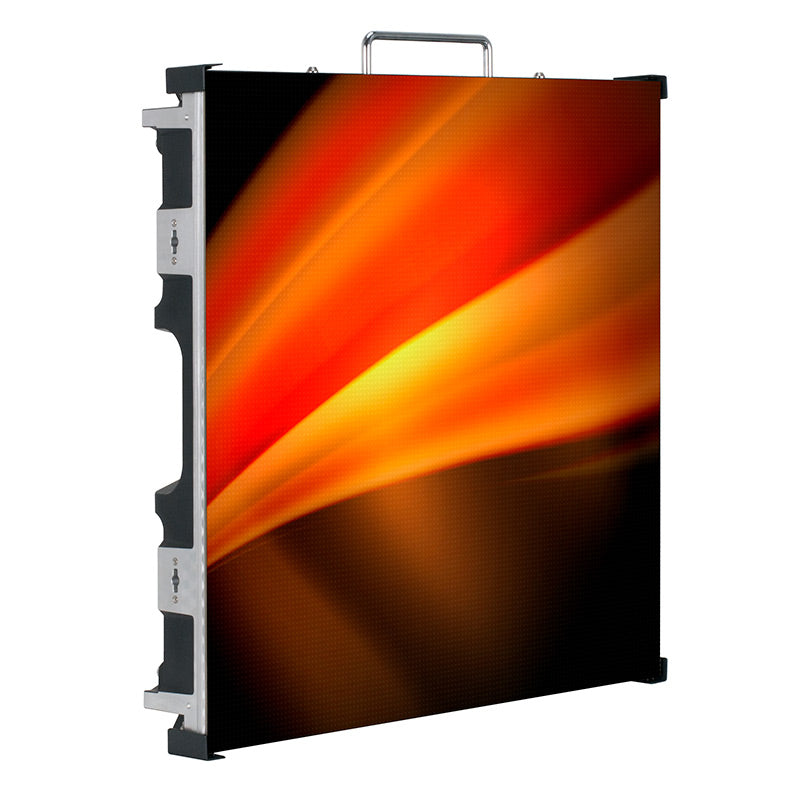

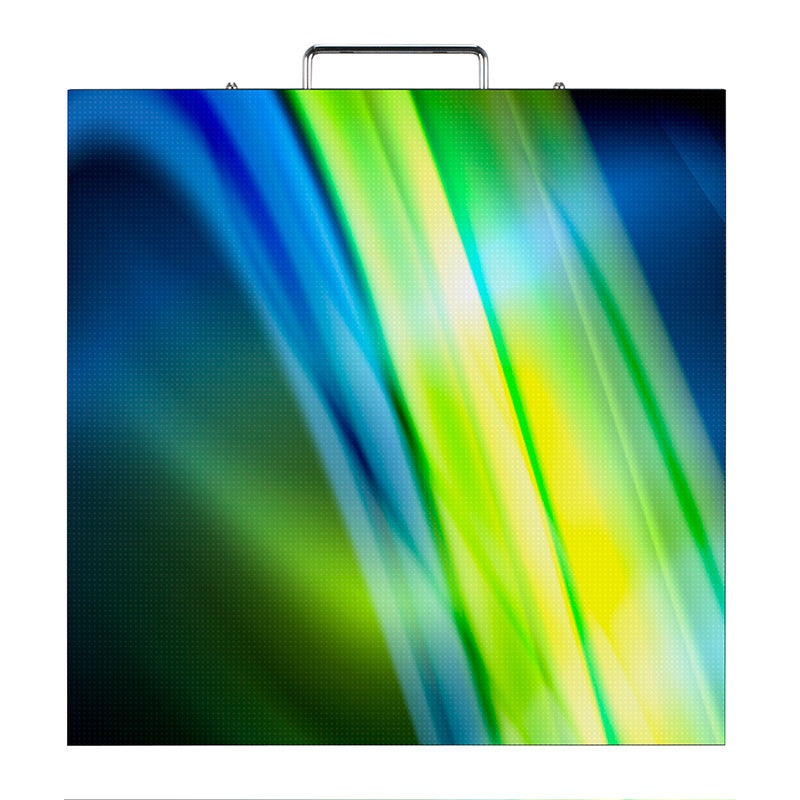

The ADJ VS3 is an indoor Vision Series LED video panel with a 3.91mm pixel pitch and 1000-nit brightness. Each 500 x 500mm panel uses four mini modules that can be serviced from the front or rear, and has a built-in NovaStar A5s receiving card.

Best for
Indoor stages, concerts, corporate events, houses of worship and rental LED video walls.

Highlights

• 3.91mm pixel pitch with 3-in-1 SMD2121 RGB LEDs
• Four front- and rear-serviceable mini modules per panel
• Built-in NovaStar A5s receiving card with 3840Hz refresh rate

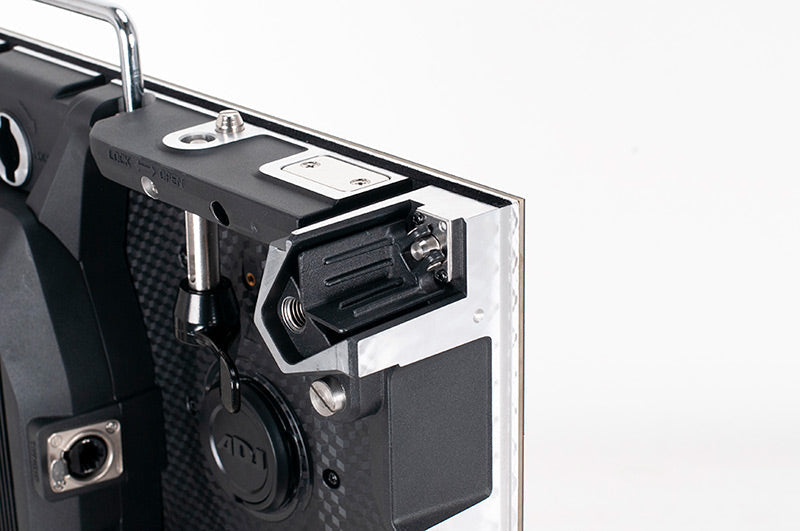

• PowerLock and DataLock in/out connections
• Magnets hold panels together before latching; corner protectors for transport
• Up to 20 panels can be hung vertically with the VSRB1 rigging bar; 8 panels fit in the VSFC8 case

Key Specs

• Pixel pitch: 3.91mm (0.15")
• Resolution: 128 x 128 pixels per panel (65,536 per m²)
• Brightness: 1000 nits
• Viewing angle: 160° horizontal / 140° vertical
• Refresh rate: 3840Hz; 14-bit processing; 5000:1 contrast
• Power: 100-240V, 50-60Hz; 170W max / 68W average per panel
• IP rating: IP20 (indoor)
• Dimensions: 19.68" x 19.68" x 2.74" (500 x 500 x 69.6mm)
• Weight: 17 lb (7.7 kg)
