VS2 - 2.97mm flat panel display

Overview

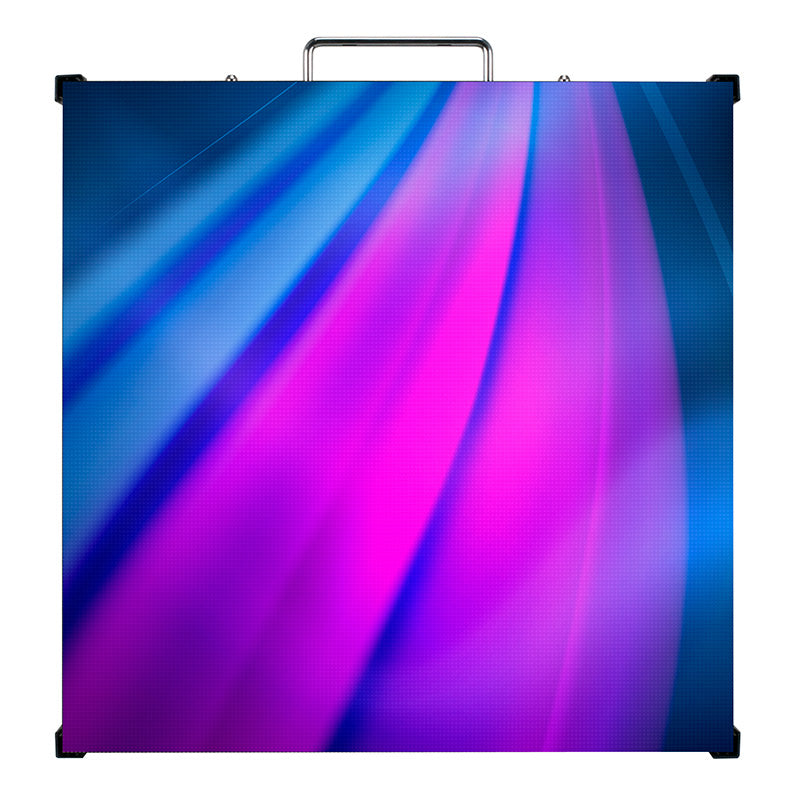

2.97mm pixel pitch indoor LED video panel from the ADJ Vision Series, using 3-in-1 SMD2121 LEDs in a 500 x 500 mm cabinet with four front- and rear-serviceable modules.

Best for
Indoor video walls for events, stage backdrops, houses of worship and rental inventories.

Highlights

• 2.97mm pixel pitch, 3-in-1 SMD2121 LEDs, 168 x 168 pixels per panel
• 1000 nit brightness and 3840Hz refresh rate

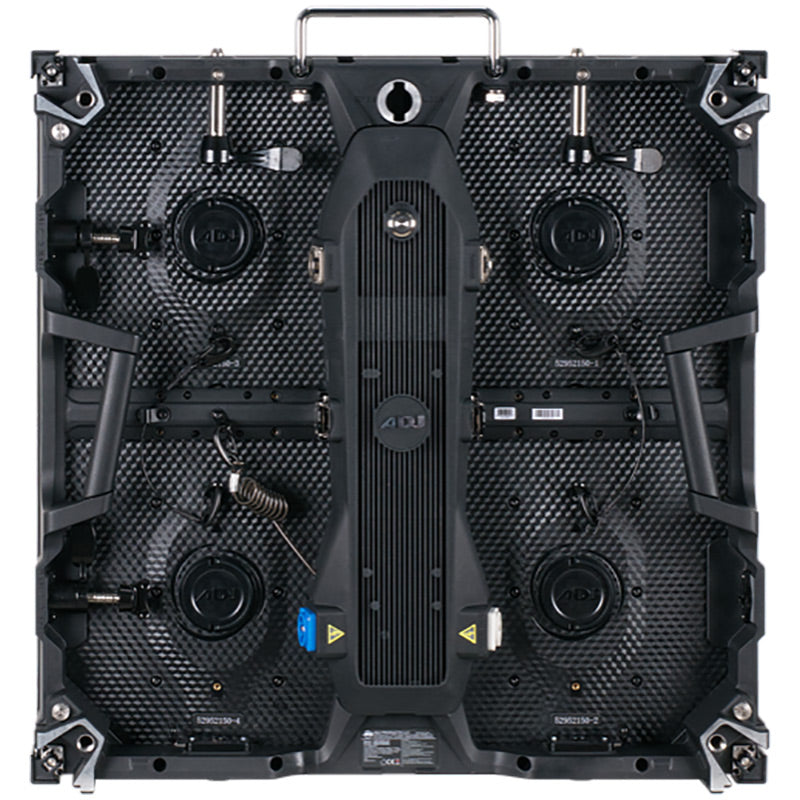

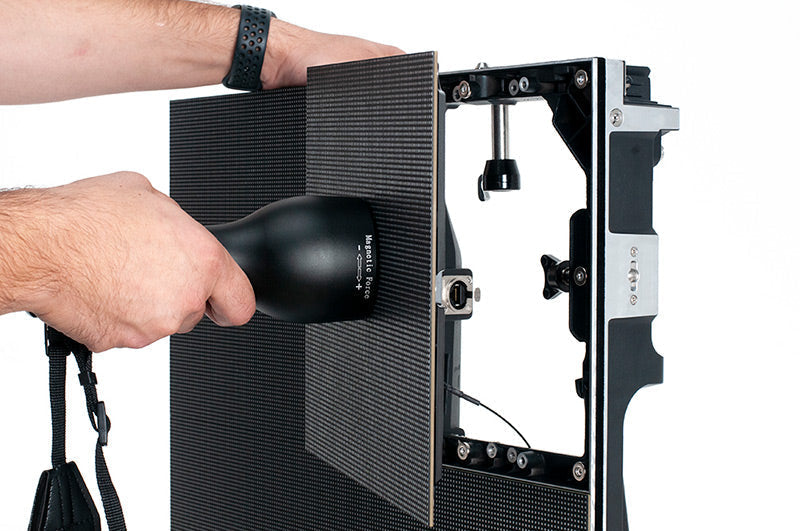

• Front and rear serviceable with four replaceable modules
• Magnetic panel connection for single-person setup; corner protectors
• Built-in NovaStar A5s receiving card; PowerLock and DataLock in/out
• Fits the VSFC8 flight case (8 panels); VSRB1 rigging bar hangs up to 20 panels

Key Specs

• Pixel pitch: 2.97 mm
• LED configuration: 3-in-1 SMD2121
• Resolution: 168 x 168 per panel (112,896 pixels/m²)
• Brightness: 1000 nits
• Refresh rate: 3840Hz
• Viewing angle: 160° horizontal / 140° vertical
• Power consumption: 170W max, 68W average per panel
• Input voltage: 100-240V, 50/60Hz
• Panel size: 19.68 x 19.68 x 2.74 in (500 x 500 x 69.6 mm)
• Weight: 17 lb (7.7 kg)
