SpiNode - DIN Rail 4Port SPI Ethernet Node

Overview
The SpiNode from Visual Productions is a 4-port SPI controller that converts Art-Net and sACN into SPI signals for addressable LED pixels. It has a compact DIN-rail form factor and a graphical web interface with test, group and locate tools for pixel-mapped installations.

Best for
Pixel-mapped LED installations driven from Art-Net or sACN, including CueCore3 systems.

Highlights

• 4 SPI outputs supporting the major SPI pixel chip protocols

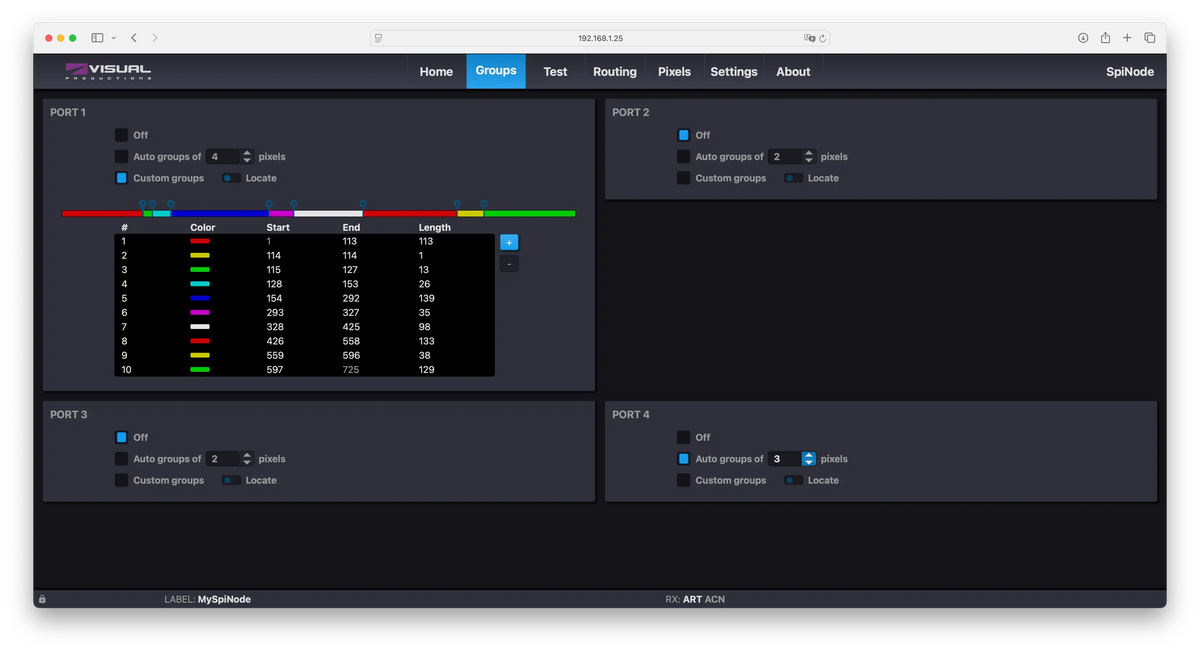

• Graphical web interface with built-in test functions
• Group function and Locate function for fast pixel identification
• Tools to identify universe boundaries and faulty LEDs
• Two SpiNodes expand a CueCore3 to 32 universes

Key Specs

• Part Number: VPSpiNode
• SPI ports: 4
• Ethernet: yes
• Protocols: Art-Net, sACN
• Power: 5-24V DC 500mA (SpiNode only) or PoE Class I
• System power through DC input: 20A max.
• Dimensions: 4.1 x 3.4 x 2.4 in (105 x 86 x 60 mm)
• Operating temperature: -4°F to 122°F (-20°C to +50°C)
• Operating humidity: 10% to 80% non-condensing
• Mounting: DIN rail
• Compliance: CE, RoHS, UKCA
