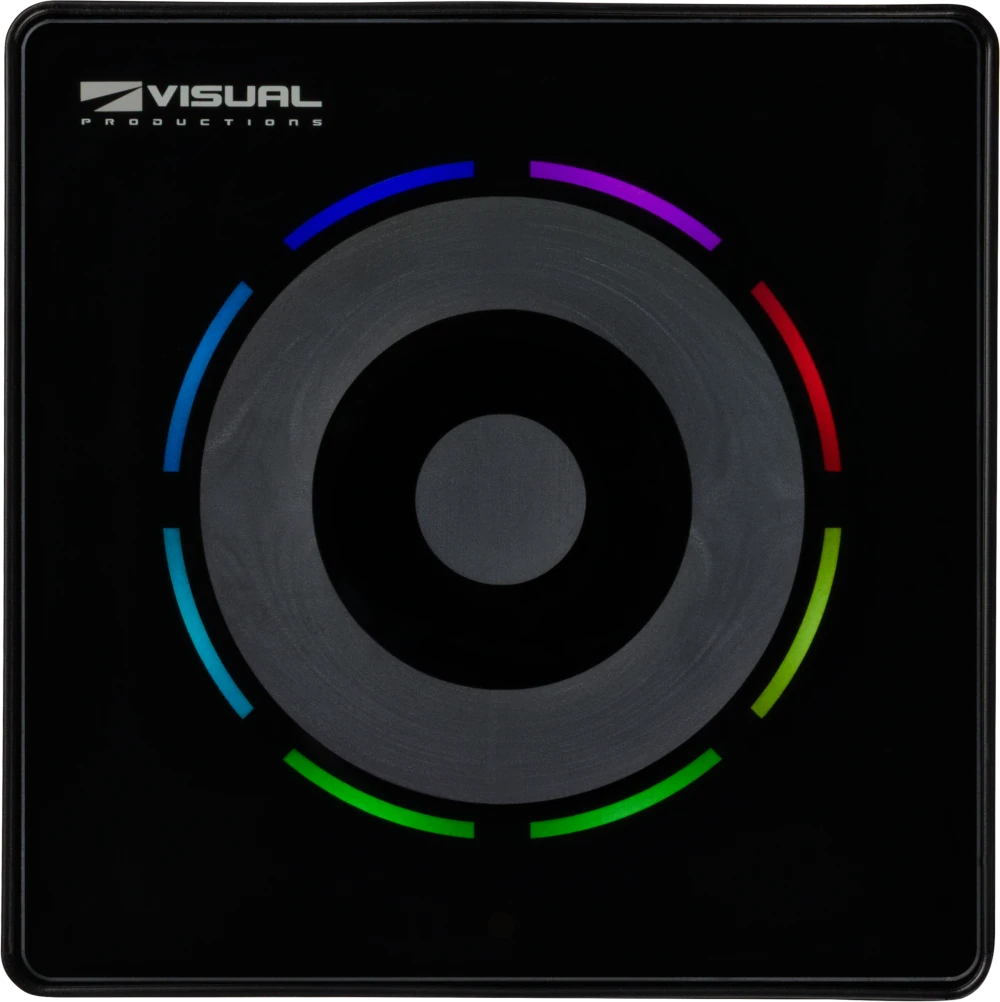

NetPanel E1 - Rotary encoder network user interface

Overview
The NetPanel E1 is the rotary-encoder model in Visual Productions' NetPanel series of compact, wall-mounted network user interfaces for architectural lighting. It has a sleek glass finish with capacitive-touch controls, RGB LED and haptic feedback, and is set up for color, CCT and intensity scenes through a web interface.

Best for
Hospitality, offices, conference rooms, museums and theatres that need a simple, elegant wall control; NetPanels can be mixed and matched.

Highlights

• Glass front with capacitive-touch controls
• RGB LED and haptic feedback
• Programmed through a built-in web interface
• Single Ethernet cable with PoE; magnetic back plate
• Works with CueCore3 and third-party systems such as Q-SYS, Pixera and BrightSign via OSC, UDP and TCP

Key Specs

• Part Number: VPNetPanelE1
• Controls: 1 capacitive-touch rotary encoder
• Power: PoE (Class 1)
• Protocols: OSC, UDP, TCP
• Size: 3.5 x 3.5 in (89 x 89 mm), wall mount
• Operating temperature: -4 to 122 F (-20 to 50 C)
• Compliance: EN55103-1, EN55103-2
