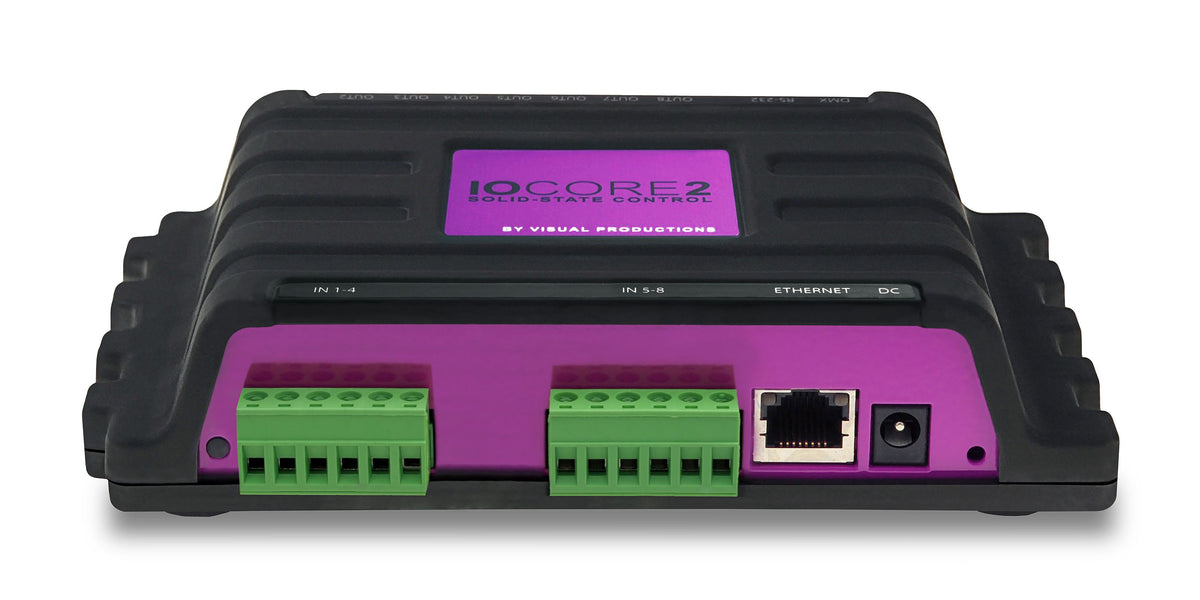

IoCore2 - GPI+GPO Interface with RS-232 & DMX

Overview
The IoCore2 from Visual Productions is a network-based, solid-state GPIO interface with eight inputs, eight relay outputs, DMX-512 and RS-232. It converts between contact closures, analog signals, serial data and network protocols, and can run stand-alone or extend the connectivity of a CueCore system.

Best for
Show-control and installation projects that need to link buttons, sensors, relays and serial devices to a lighting or AV network.

Highlights

• 8 GPI inputs, each configurable as contact-closure or 0-10V analog
• 8 potential-free relay outputs
• DMX-512 port (input or output) and RS-232 (in and out)
• Web-interface programming of triggers and protocol conversions
• Works stand-alone or alongside CueCore2, QuadCore, B-Station2 and RdmSplitter

Key Specs

• Part Number: VPIOCORE2
• GPI: 8 (digital contact-closure or analog 0-10V)
• GPO: 8 relays, 50V AC / 30V DC, max. 3A
• DMX: 1 x DMX-512, opto-isolated, input or output (ANSI E1.11)
• Serial: RS-232 in and out
• Protocols: Art-Net and sACN (in/out), TCP (in), UDP and OSC (in/out)
• Power: 12-24V DC 500mA (PSU included) or PoE Class I
• Mounting: desktop, DIN rail or 19 in rack (optional adapter); Kensington lock
• Operating temperature: -20°C to +50°C
• Compliance: CE, RoHS, UKCA, EAC, FCC, UL62368-1, CSA C22.2 62368-1:19
