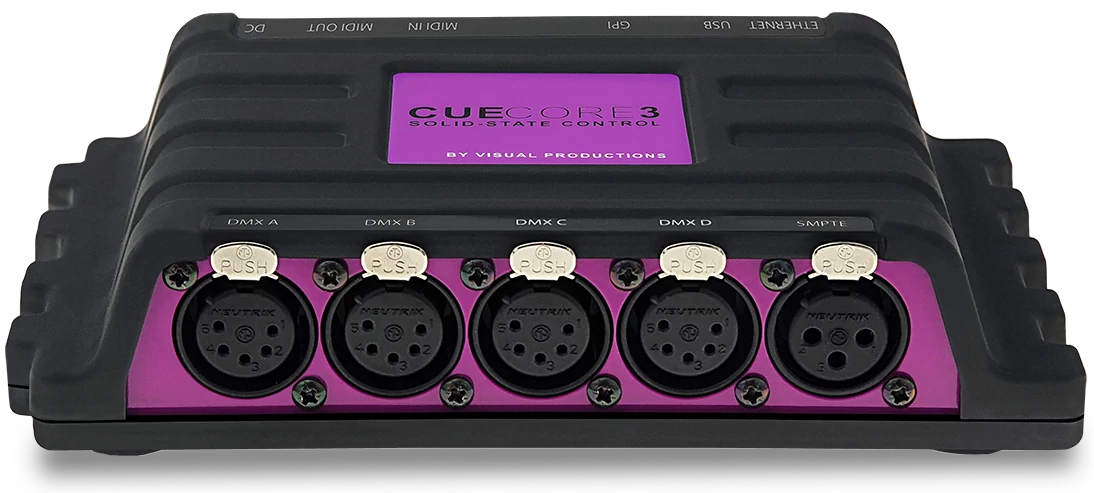

CueCore3 - 4-Universe 16 playback Architectural Lighting Controller

Overview
The CueCore3 from Visual Productions is a compact, solid-state lighting controller for permanent installations, architectural lighting and system integration projects. It is built for 24/7 operation, plays back DMX shows stand-alone and is programmed through a built-in web interface. Four DMX ports are on board, and the system expands to 32 universes with RdmNode and SpiNode units.

Best for
Architectural, museum, retail and themed installations that need a reliable, fit-and-forget playback controller with show-control and scheduling.

Highlights

• 16 playbacks with 128 tracks, plus DMX recording from an external console (about 14 hours)
• Full RDM controller with discovery, addressing and a personality editor for up to 256 devices
• Show control via Art-Net, sACN, MIDI, SMPTE, OSC, UDP, TCP, HTTP and GPI triggers
• Expandable to 32 universes with RdmNode (4 universes) and SpiNode (16 universes)
• Master/slave synchronization and Purple Cloud remote monitoring and control
• Powered by the included PSU or Power over Ethernet

Key Specs

• Part Number: VPCUECORE3
• DMX ports: 4 x DMX512-A, opto-isolated, bi-directional (2,048 channels on board)
• Expansion: up to 32 universes
• Playbacks: 16 with 128 tracks; 256 actions, 512 tasks
• Memory: 6 GB flash (1 GB for DMX recording)
• Protocols: Art-Net, sACN, KiNet, MIDI (MTC/MSC/MMC), SMPTE, HTTP, TCP, UDP, OSC
• GPI: 4 optically isolated inputs (contact-closure or 0-10V)
• Power: 9-24V DC 500mA (PSU included) or PoE
• Mounting: desktop, DIN rail or 19 in rack (optional Rackmount C)
• Operating temperature: -20°C to +50°C
• Compliance: CE, RoHS, UKCA, FCC, UL62368-1, CSA C22.2 62368-1:19
