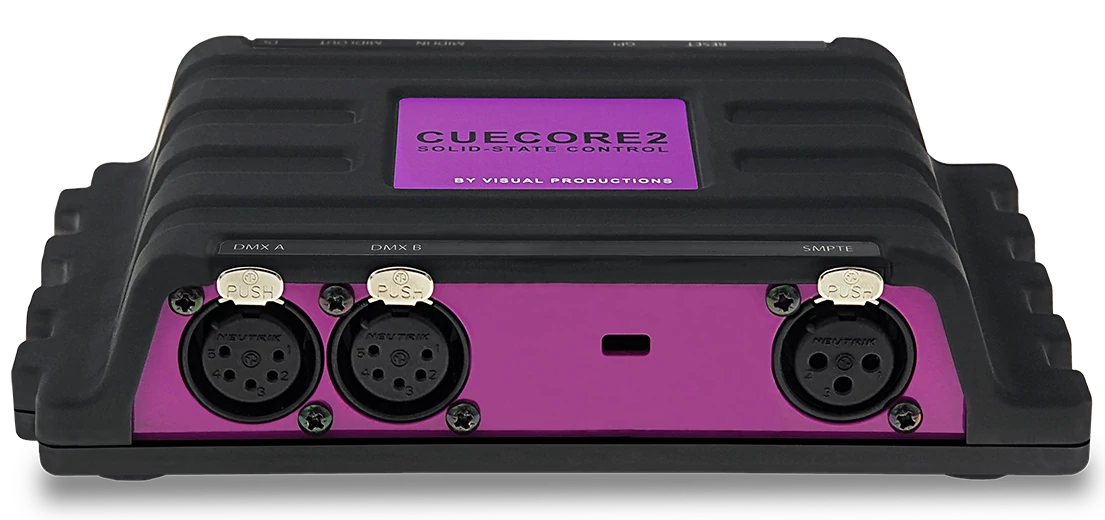

CueCore2 - 2-Universe 6 playback Architectural Lighting Controller

Overview
The CueCore2 from Visual Productions is a compact, completely solid-state lighting controller for permanent installations and architectural lighting. It controls two DMX universes, runs stand-alone after programming and combines a lighting controller, show recorder, scheduler and show-control engine in one DIN-rail or desktop unit.

Best for
Small to mid-size architectural and installation projects that need two universes of stand-alone playback with scheduling and show control.

Highlights

• 6 independent playbacks for multi-zone control
• Records DMX, Art-Net and sACN shows from an external console
• Scheduling with real-time clock, weekdays and sunrise/sunset, plus NTP time sync
• Triggers from MIDI, MSC, MMC, OSC, UDP, TCP and SMPTE/MTC/Art-Net timecode
• GPI port with 4 contact-closure or 0-10V inputs
• Master/slave protocol for synchronizing multiple units

Key Specs

• Part Number: VPCUECORE2
• DMX ports: 2 x DMX-512, opto-isolated (in or out)
• Playbacks: 6
• Protocols: Art-Net and sACN (in/out), KiNet (out), MIDI/MSC/MMC, OSC and UDP (in/out), TCP (in)
• Timecode: SMPTE, MTC and Art-Net timecode slave
• GPI: 4 contact-closure or 0-10V inputs
• Power: PoE
• Mounting: desktop or DIN rail; Kensington lock
• Compliance: CE, RoHS, UKCA, EAC, FCC, UL62368-1, CSA C22.2 62368-1:19
