9D Power Fogger Industrial 110V w/Air Option w/Fast On Chip V6.05

Overview

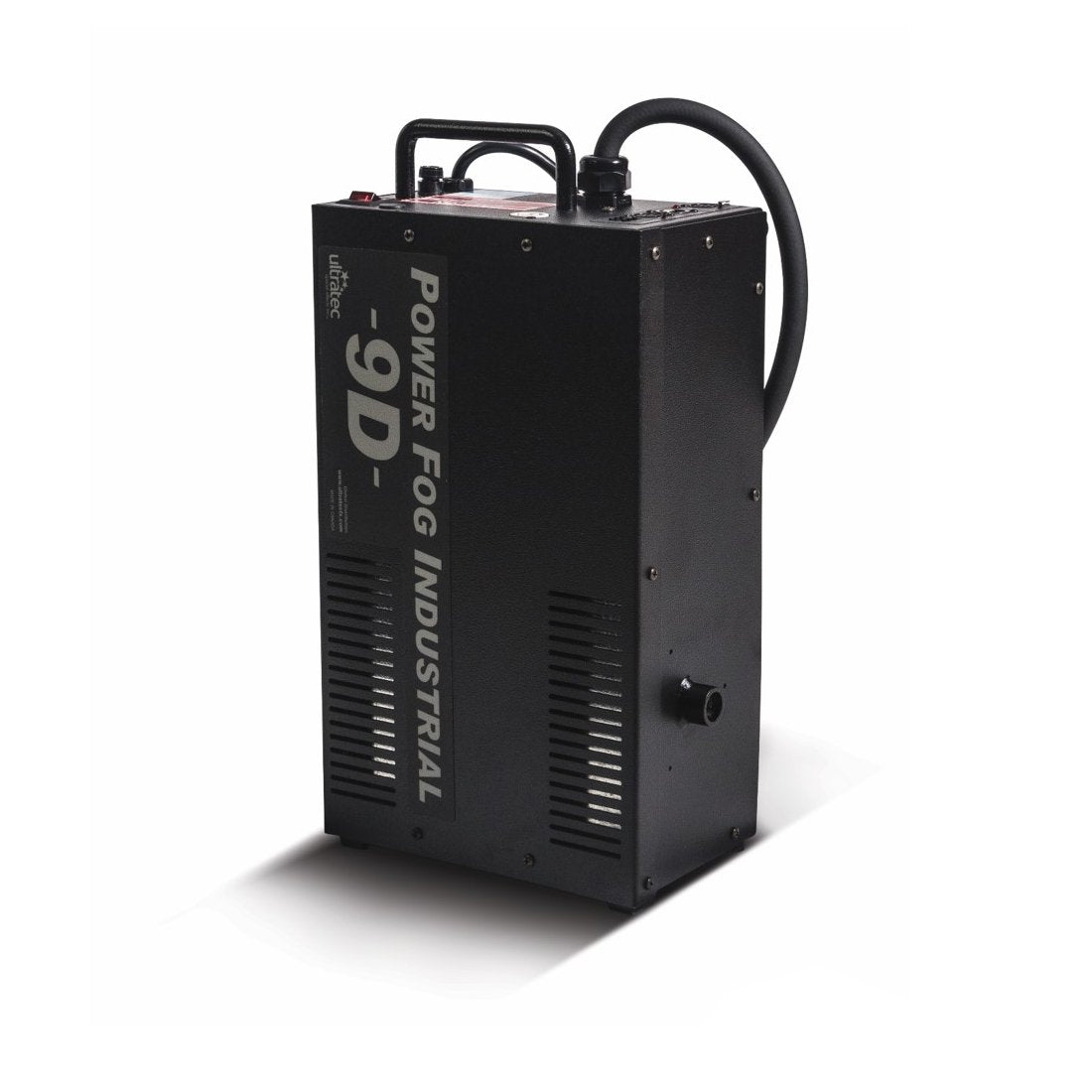

The Ultratec Power Fog Industrial 9D is a fog machine designed for installing fog effects under stages and in close, confined spaces. Its 1,400 W heat exchanger is rotated 90 degrees inside a powder-coated stainless steel chassis, so the unit can stand upright with rubber feet and plastic glides for stability. It runs continuously with no reheat time and comes standard with 5-pin DMX, manual remote or remote show control. This version includes the air option for connection to a compressed air supply. It is fitted with the Fast On chip, firmware version V6.05. Contact us to confirm details of the Fast On chip.

Best for
Under-stage, in-set and confined-space fog installations in theaters, attractions and venues.

Highlights

• Rotated heat exchanger allows upright installation in tight spaces
• Fast On chip V6.05 firmware
• Air option for compressed air assist
• 1,400 W heat exchanger compatible with Rapid Change Technology
• Continuous output with no reheat time
• Built-in 5-pin DMX with digital interface
• Manual remote, remote timer/duration or dry-contact show control via terminal strip
• Heavy-duty handle; rubber feet and plastic glides
• 5-year warranty when used with Ultratec fluids

Key Specs

• Part Number: CLF4478
• Voltage: 110V, 50/60 Hz
• Current draw: 13 A at 110V
• Heater: 1,400 W
• Output: 4,000 CFM continuous / 8,900 CFM burst (at 1 m visibility)
• Fluid consumption: 57 cc/min continuous / 127 cc/min burst
• Reheat time: none
• Control: 5-pin DMX, manual remote, terminal strip show control
• Power cord: 6 ft (1.8 m)
• Dimensions: 18.73 x 11.14 x 6.55 in (47.57 x 28.30 x 16.64 cm)
• Weight: 29 lb (13 kg)
• Certification: CSA/UL standards (QPS Canada)
