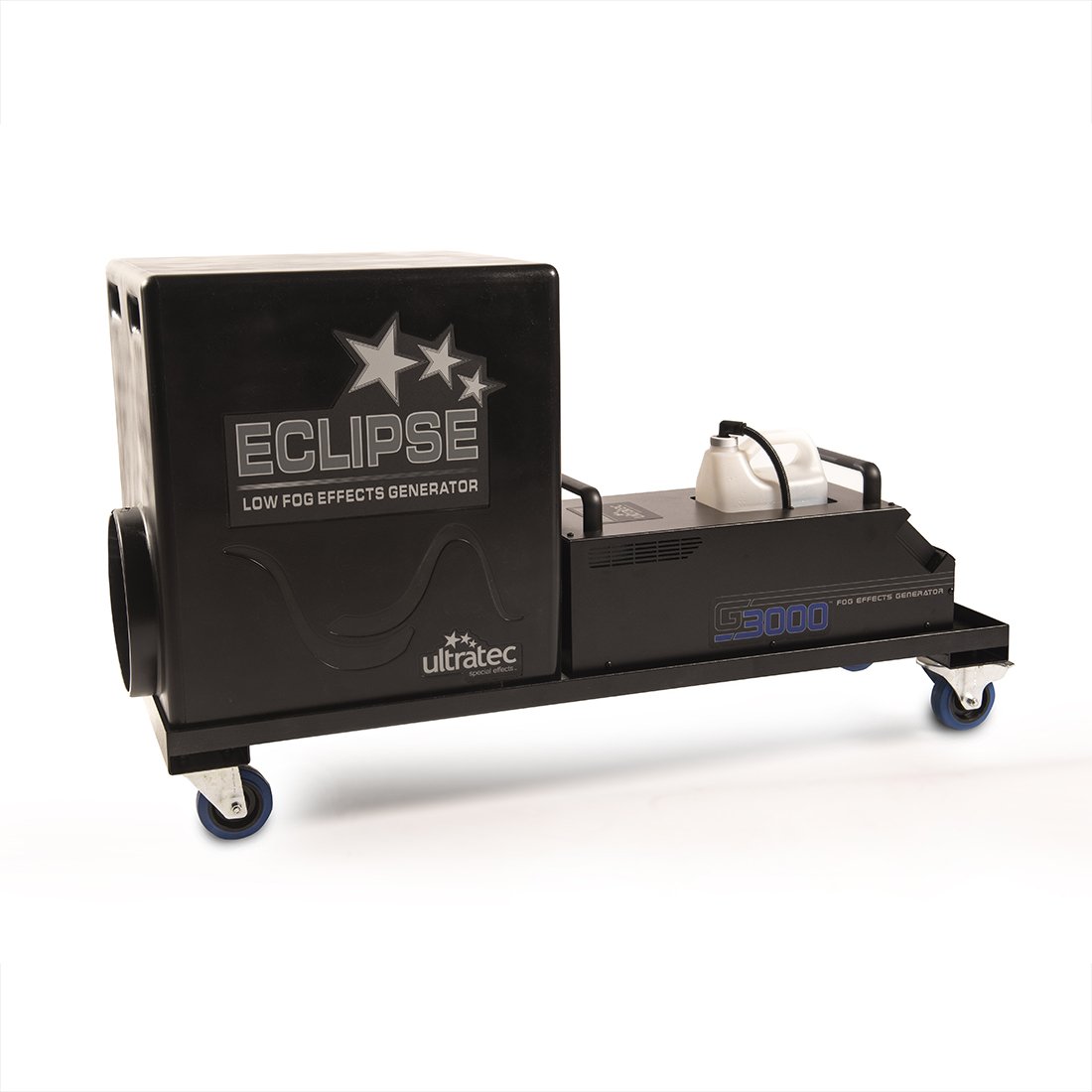

Eclipse Low Fog Effects Generator w/Roadcase+G3000 110V

Overview
The Ultratec Eclipse Low Fog Generator chills the output of a fog machine with liquid CO2 to produce thick, billowing fog that stays close to the floor. It connects directly to an Ultratec G3000 or Power Fog Industrial 9D fog generator and pushes fog through 10 in ducting with a 600 CFM variable speed fan. It is used for continuous low-lying fog in theatre, concerts, TV and live events. This package combines the Eclipse with an Ultratec G3000 Fog Generator, supplied in a road case for transport and setup.

Best for
Continuous, dense low-lying fog for stages, concerts, TV and live events using a liquid CO2 supply.

Highlights

• 600 CFM variable speed fan with adjustable fan speed control
• One-piece heavy-duty 1/4 in LLDPE polymer casing with integrated carry handles
• Positive locking 10 in quick-lock hose adapter
• Dual quick-detachable CO2 control valves; runs on high or low pressure liquid CO2
• G3000: 2,000 W dual-core heater, built-in 5-pin DMX, one-gallon fluid jug, electronic low fluid detection
• Supplied in a road case
• PowerCon power connections and stainless steel drain
• Made in North America; 5-year warranty

Key Specs

• Part Number: CLF4062
• Package: Eclipse Low Fog Generator + G3000 in road case
• Voltage: 110V, 50/60 Hz
• Fog generator: Ultratec G3000 (2,000 W heater, 5-pin DMX, 12 min reheat, 41 lb / 18.6 kg)
• Current draw (Eclipse): 1 A at 120V
• Fan: 600 CFM, variable speed
• CO2 consumption: approx. 7.5 lb/min (high or low pressure); approx. 15 lb/min at high power
• Hose connection: 10 in quick-lock adapter
• Power cord: 5 ft (1.5 m) interconnect
• Eclipse dimensions: 22.5 x 19 x 23 in (57 x 48 x 58 cm)
• Eclipse weight: 47 lb (21 kg)
• Certification: CSA/UL standards (QPS Canada)
