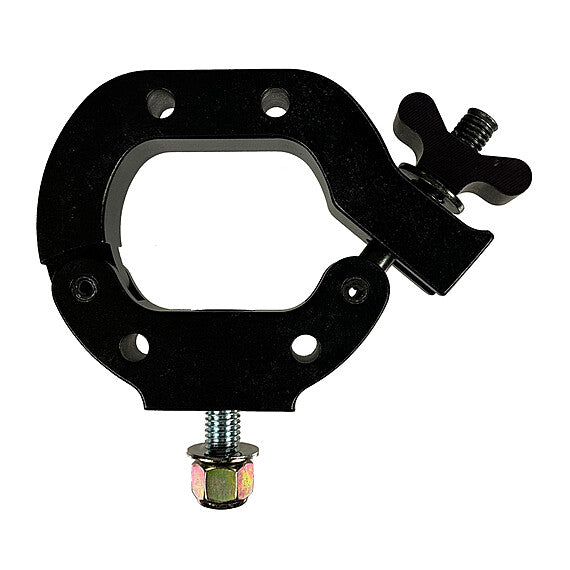

Square-Coupler XL, 2-1/4", Black
Regular price
$115.96 USD
Sale price
Regular price
Overview
A 2.25" Mega-Square Half Coupler XL, machined from 6061-T6 aluminum billet, for hanging loads from 2.25" square tubing. It fastens toollessly with an aluminum wingnut.
Compatible with
2.25" square tubing.
Highlights
- Recessed hex pocket secures the bolt head
- Supplied 1/2"-13 x 2" bolt can be swapped for other lengths; a socket head screw allows fastening to internally threaded loads
- Aluminum wingnut for toolless fastening
Key Specs
- Part Number: SQXL2.25B
- Finish: Black
- Fits: 2.25" square tube
- Working Load Limit: 1,100 lb
- Weight: 1.45 lb
- Dimensions: 1 in thick x 6 in wide x 4.5 in tall
- Material: 6061-T6 aluminum
- Hardware: 1/2"-13 x 2" Grade 5 hex head cap screw, 1" Belleville spring washer, 1/2"-13 Grade 8 Nyloc nut (yellow zinc)
