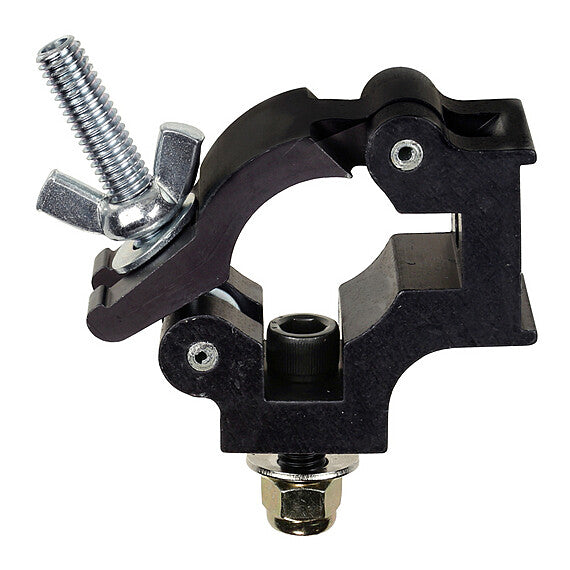

Quad-Coupler, 1.5", Black

Overview
The Quad-Coupler 1.5 clamps 1-1/4" to 1-1/2" OD tubing and 1" pipe. It can bolt to 1-1/4" square tube or rotate when fastened to a flat surface.

Compatible with
1-1/4" OD tube and 1" pipe (1.315" OD) up to 1.5" OD tube.

Highlights

• 1.25" thick; 0.84" from bottom of clamped tube to the flat or notched connecting face
• Keyed and flat sides allow swivel, 90 degree and parallel assemblies
• Nylon-insert lock nut and Belleville spring washer

Key Specs

• Part Number: QC1.5B
• Finish: Black
• Fits: 1.25"–1.5" OD tube, 1" pipe (1.315" OD)
• Working Load Limit: 770 lb
• Weight: 0.5 lb
• Thickness: 1.25 in
• Hardware: 3/8"-16 x 1.25" socket head cap screw, 3/8" nylon insert lock nut, Belleville washer
