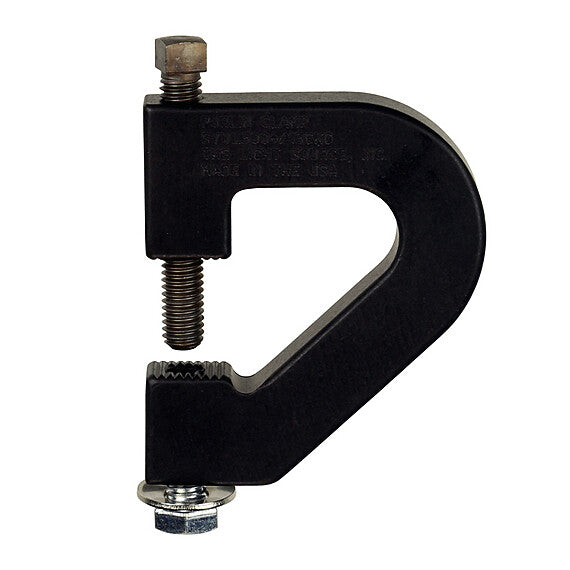

Purlin Clamp, 3/8-16, .625" Thick, Mill
Regular price
$13.05 USD
Sale price
Regular price
Overview
Purlin Clamp with 3/8-16 fasteners for hanging pipe, track or rigging hardware from building steel. It installs to bar joists, purlins and I-beams.
Compatible with
Bar joists, purlins and I-beam flanges up to 1 in thick.
Highlights
- Micro-grooves for a secure connection to the beam
- Body extruded from aircraft-grade aluminum
- Body is 5/8 in thick
- Square-head set screw and grade 5 hex head cap screw with 1 in Belleville washer
Key Specs
- Part Number: PCM3/8
- Finish: Mill (silver aluminum)
- Fasteners: 3/8-16
- Body thickness: 5/8 in
- Fits: Beam flanges up to 1 in thick
- Working Load Limit: 210 lb
- Dimensions: 3-3/8 in x 3-7/8 in
- Material: Aircraft-grade aluminum
- Weight: 0.7 lb (318 g)
