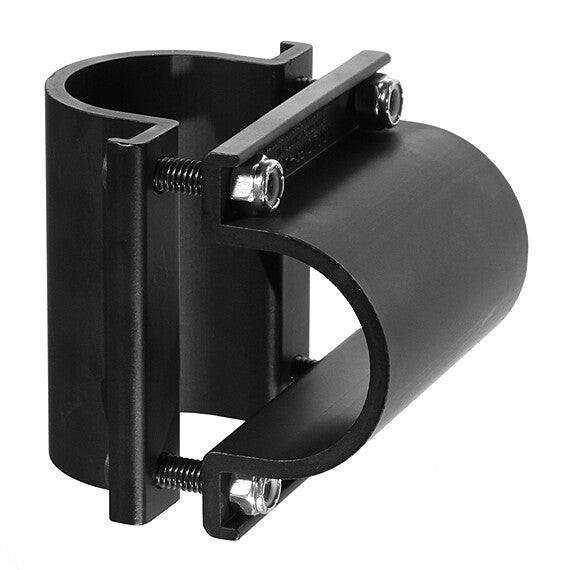

Mega-Gridlock, Mill, 18-8 Stainless

Overview
The Mega-Gridlock joins two overlapping pipes at a 90 degree joint. It is designed for permanent pipe-grid installations in studios and theaters.

Compatible with
1-1/4 in to 1-1/2 in pipe (1.66 in to 1.90 in OD); 2 in OD tube (tight fit).

Highlights

• Joins two crossing pipes at 90 degrees
• Built for permanent grid installs
• 18-8 stainless steel hardware

Key Specs

• Part Number: MGM-SS
• Finish: Mill (silver aluminum)
• Fits: 1.66 in to 1.90 in OD pipe; 2 in OD tube (tight fit)
• Working Load Limit: 1,250 lb (568 kg)
• Hardware: Four 5/16 in x 2 in socket head cap screws and four 5/16 in Nylock nuts (18-8 stainless steel)
• Dimensions: 3.65 in x 3.65 in x 4.375 in tall max
• Weight: 1.03 lb (467 g)
