Mega-Coupler Grounder
Regular price
$54.36 USD
Sale price
Regular price
Overview

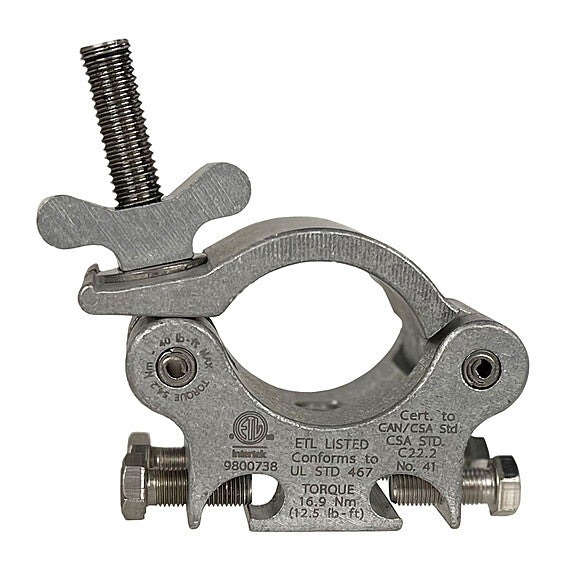

The Mega-Coupler Grounder is an electrical grounding clamp for pipe and truss. It provides a ground connection for temporary structures that are suspended with non-conductive materials.
Compatible with
Pipe and truss from 1-5/8 in to 2 in OD; grounding conductors from 14 AWG to 1/0, copper or aluminum.
Highlights
- ETL listed to UL 467; tested at over 5,000 amps without failure
- Two slots with hex bolts allow a continuous grounding path without cutting the conductor
- Suitable for indoor and outdoor above-grade installations
- Install per NFPA 70 (National Electrical Code)
Key Specs
- Part Number: MCGM
- Finish: Silver
- Fits: 1-5/8 in to 2 in OD pipe/truss
- Conductor Range: 14 AWG to 1/0, copper or aluminum
- Material: 6061-T6 aluminum base, link and wingnut; stainless steel hardware
- Torque: Clamping wingnut 40 ft-lb max (480 in-lb); hex bolts 12.5 ft-lb (150 in-lb)
