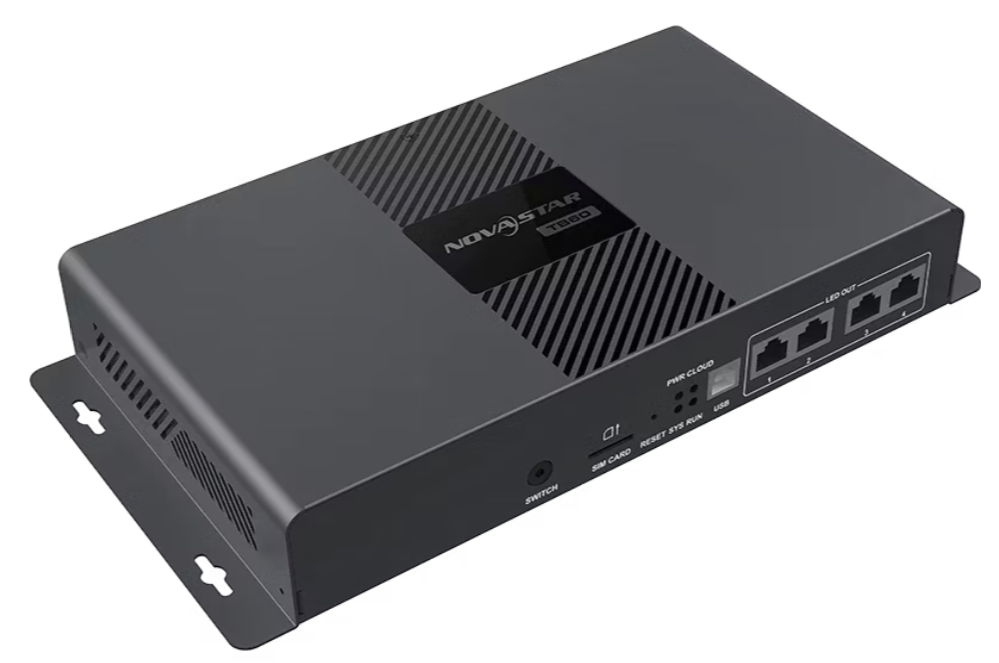

TB60 - Novastar TB60 multimedia player

Overview
The NovaStar TB60 is a multimedia player for large-scale LED displays that combines content playback and sending functions in one unit. It offers 8GB RAM, 64GB storage and a loading capacity of up to 2.3 million pixels.

Best for
High-end commercial and outdoor LED display applications.

Highlights

• Optional 4G/5G module alongside LAN and Wi-Fi control
• Remote publishing and monitoring via NovaStar VMP software or cloud platform
• Frame synchronization across multiple devices
• Smart screen brightness control and scheduled content publishing
• Real-time device status monitoring

Key Specs

• Processor: Quad-core ARM Cortex-A55
• Memory / storage: 8GB RAM, 64GB eMMC
• Operating system: Android-based
• Control: LAN, Wi-Fi, optional 4G/5G
• LED outputs: 6x Gigabit Ethernet
• Loading capacity: Up to 2,300,000 pixels (max width 7680 px, max height 3840 px)
• Interfaces: 1x HDMI out (monitoring), 2x USB 2.0, 1x 3.5 mm audio out
• Power supply: DC 12V
• Operating temperature: -20°C to +60°C
• Certifications: CE, FCC, RoHS
