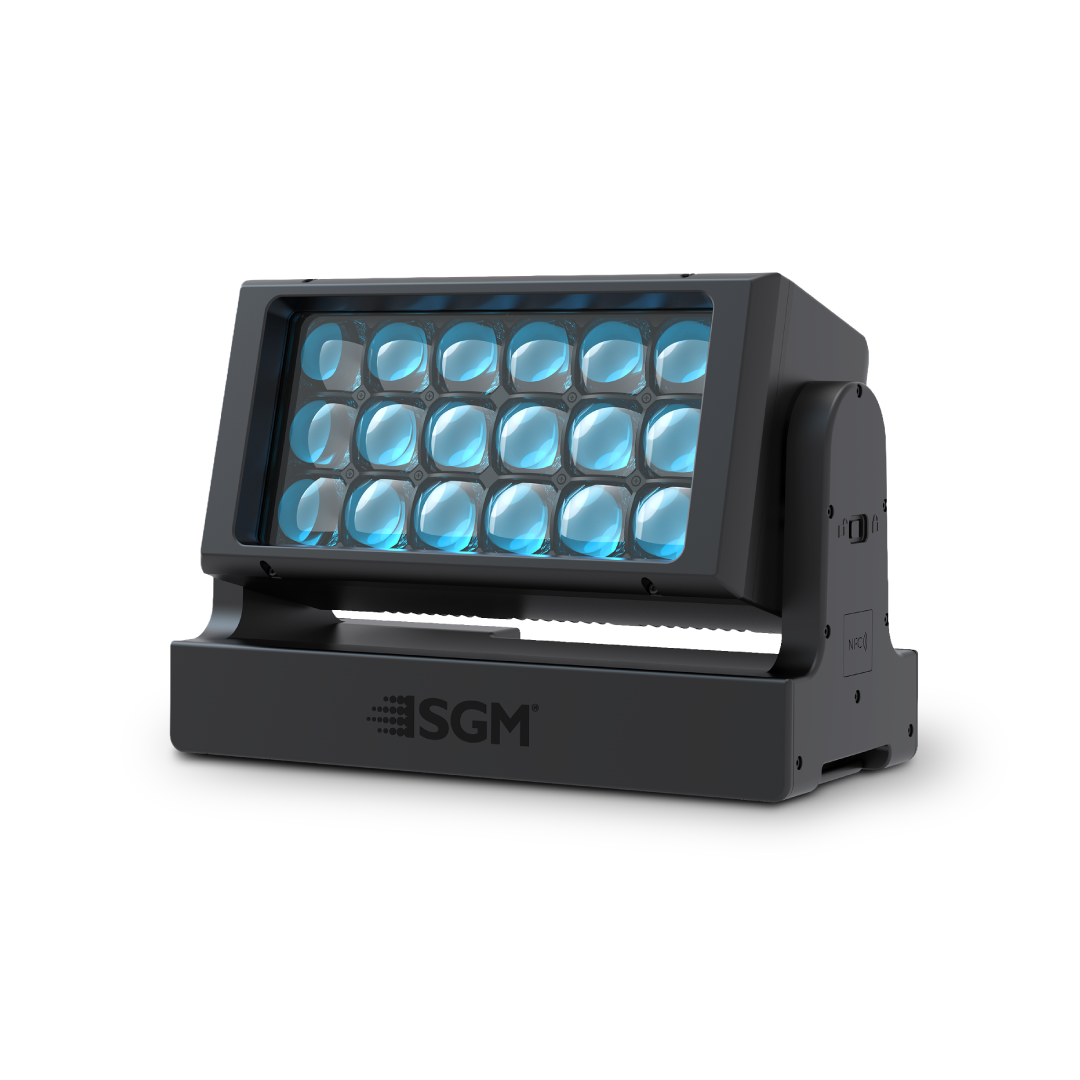

PALCO ZFX 60W RGBL LED Pixel Wash with Infinite Tilt

Overview
The PALCO Z-FX from SGM is an IP65 dynamic effects wash that combines continuous 360 degree tilt rotation, 18 individually controllable RGBL pixels and a wide motorized zoom. It is built for touring, festivals, broadcast and live events.

Best for
Outdoor and touring rigs that want a pixel-mappable wash with continuous tilt for kinetic effects.

Highlights

• 18 x 60 W RGBL LEDs, 21,000 lm (all on)
• Continuous 360 degree tilt rotation
• Motorized zoom from 3 to 55 degrees
• Individually controllable pixels for mapping, effects and chases
• CCT range 2000-10000 K
• Wireless setup via NFC and the SGM app

Key Specs

• Part Number: SGMPALCOZFX
• Light source: 18 x 60 W RGBL LED
• Output: 21,000 lm; 92,000 lux at 5 m
• Zoom: 3 to 55 degrees
• IP rating: IP65; IK06
• Power: 1,300 W maximum, 100-240 V AC, 50/60 Hz
• Control: DMX, RDM, Art-Net, sACN via 5-pin XLR and Ethernet
• Operating temperature: -4 to 113 F (-20 to 45 C)
• Dimensions: 19.3 x 12.2 x 8.6 in (491 x 310 x 218 mm)
• Weight: 47.8 lb (21.7 kg)
• Included: 2 Omega brackets with quarter-turn fasteners
