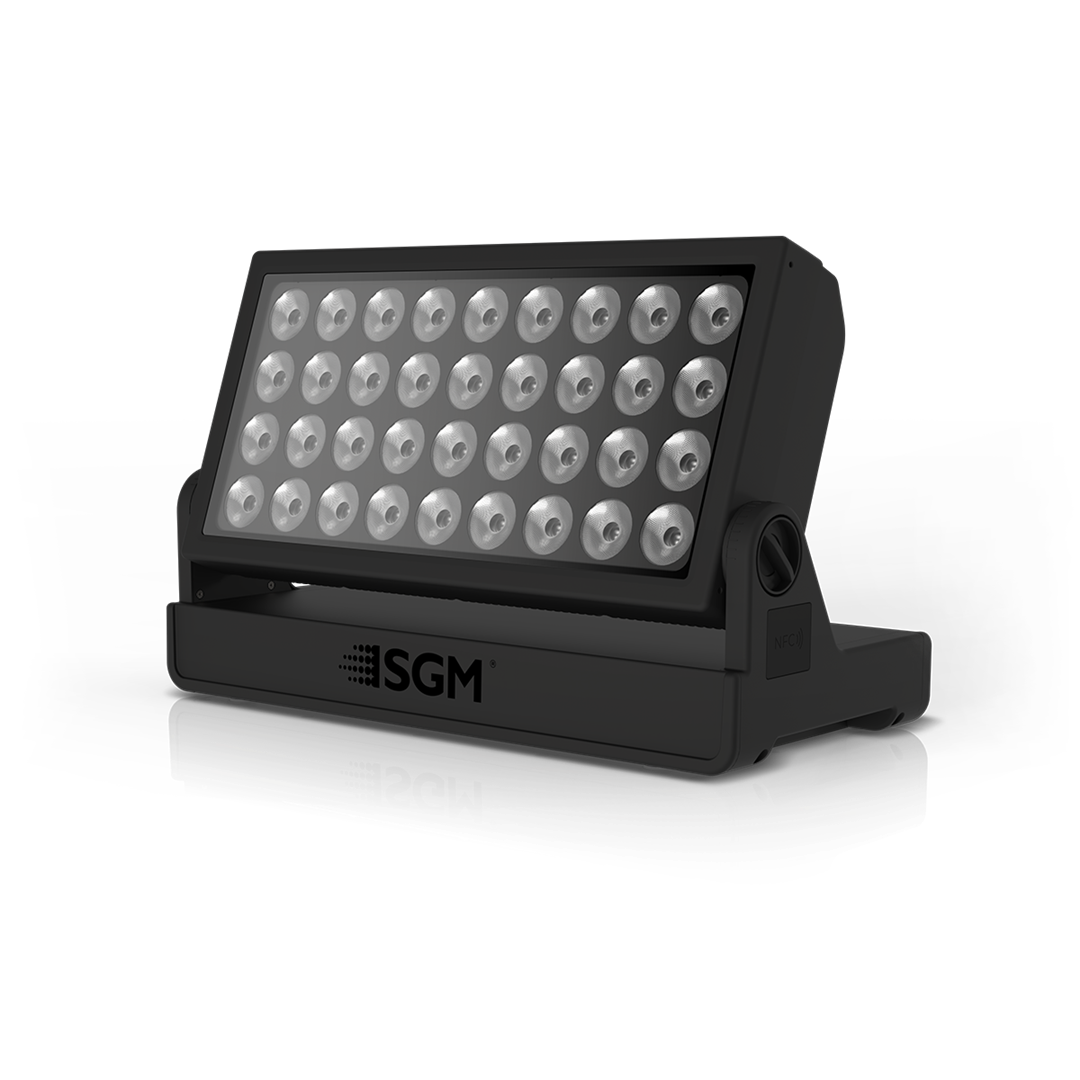

PALCO 6 Wash Light

Overview
The SGM PALCO-6 Wash is a mid-size, foldable, IP65-rated LED wash light built around 36 high-output 40 W RGBL LEDs with SGM ColorBoost technology. It delivers 33,357 lm of saturated, color-mixed output with a tunable white range of 2000 K to 10000 K. The fixture is designed for both indoor and outdoor use on stages, events and temporary architectural installations.

Best for
Rental, touring, event and architectural users who need a high-output, weatherproof RGBL wash or wall-wash fixture that folds down for transport.

Highlights

• 36 x 40 W RGBL LEDs with ColorBoost technology
• Foldable design for compact transport and storage
• IP65 and IK06 rated for outdoor use, operating from -4°F to 122°F (-20°C to 50°C)
• DMX/RDM, Art-Net and sACN control, with optional LumenRadio CRMX wireless
• NFC setup via the SGM iOS/Android app
• Accepts SGM Universal Frame, 8-way barndoor and diffusion filter accessories

Key Specs

• Part Number: SGMPALCO6
• SGM Item Number: 80300501
• Light Source: 36 x 40 W RGBL LEDs
• Output: 33,357 lm (all LEDs on)
• Beam/Field Angle: 11° beam / 24° field
• CCT Range: 2000 K - 10000 K
• Power Input: 100-240 VAC, 50/60 Hz
• Power Consumption: 850 W max; 25 W standby
• Control: DMX/RDM via 5-pin XLR; Art-Net/sACN via Ethernet; optional LumenRadio CRMX
• Rating: IP65, IK06
• Dimensions: 19.6 x 12.5 x 9.1 in (498 x 318 x 232 mm)
• Weight: 28.7 lb (13 kg)
